Description

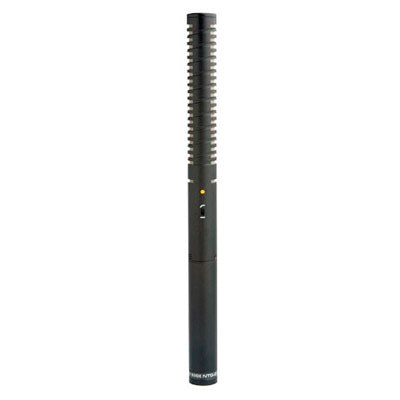

The new RODE NTG-2 is a lightweight condenser shotgun microphone, designed for professional applications within the film, video, television and production industries.
FEATURES:- Broadcast sound quality
- Low noise circuitry
- Condenser transducer
- P48 phantom power or 1.5V AA battery
- Two step High-Pass Filter - Flat or 80Hz
- Rugged metal construction
- Low weight - 161g (5.17 oz.)
- Low handling noise
Acoustic Principle | Line plus gradient |
Directional Pattern | Super-Cardioid(see graph) |
Frequency Range | 20Hz ~ 20kHz selectable HPF@80Hz/12dB octave (see graph) |
Output Impedence | 250ohms - phantom power;350ohms - battery power |
Sensitivity | -36dB re 1V/Pa @ 1kHz (15mV @ 94dB SPL) ±2dB @ 1kHz |
Equivalent Noise | 18dBA SPL (per IEC651) |
Maximum Output | +6.9dBu Dynamic Range: 113dB (per IEC651) |
Maximum SPL | 131dB (@ 1kHz, 1% THD into 1kohms) |
Signal/Noise | 76dB SPL (@ 1kHz, rel 1Pa per IEC651) |
Power Requirement | Phantom P48 or 1.5V Alkaline ÔAAÕ Battery |
Current Consumption | 2.0mA (P48) 0.18mA (1.5V AA) |
Output Connection | 3-pin XLR, balanced output between pin 2 (+), 3 (-) and pin 1 (ground) |
Net Weight | 161g |
