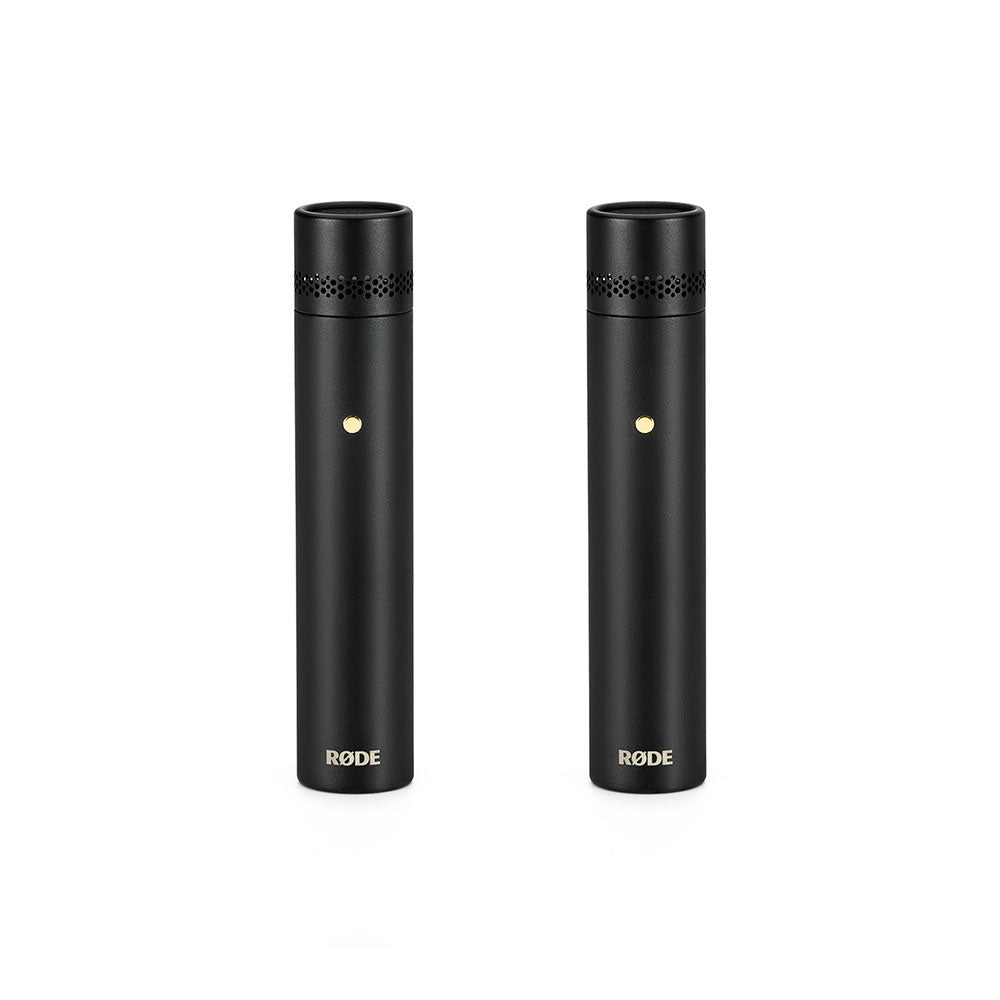

RODE TF-5 Matched Pair of Small Diaphragm Condenser Microphones
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The TF-5 represent a new standard in small diaphragm condensers. The all-new capsule is engineered to sub-micron tolerances, giving unprecedented consistency of tone and response. The TF-5 features the hallmark clarity and airiness of other RØDE small diaphragm mics, and adds to this a unique warmth of tone which is often lacking in smaller pencil mics of this type, making the TF-5 uniquely versatile.
Features:
- Precision-paired small diaphragm cardioid condenser microphones
- Ultra-low noise
- Flat frequency response
- Tight cardioid directivity
- Warm, accurate sound
- Suitable for the most critical recording applications
- Designed in collaboration with Grammy® award winning classical producer and engineer, Tony Faulkner
| Acoustic Principle | Externally biased condenser |
| Active Electronics | JFET impedance converter with bipolar output buffer |
| Polar Pattern | Cardioid |
| Frequency Range | 20Hz - 20kHz |
| Frequency Response | 30 Hz - 20 kHz ±3dB // 20 Hz - 20 kHz ±4dB |
| Output Impedance | 63? |
| Signal to noise Ratio | 80 dB |
| Equivalent Noise | 14 dB SPL (A-weighted, as per IEC651) |
| Input SPL @ 1% THD | 120 dB SPL (1kHz @ 1% THD, 600? load) |
| Sensitivity | -29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz) |
| Dynamic Range | 112.6 dB (1kHz @ Max SPL) |
| Power Requirements | 7mA @ 48V phantom power |
| Weight (g) | 114g (single microphone) |
| Dimensions | Length: 98.7mm Diameter: 20mm |
The TF-5 represent a new standard in small diaphragm condensers. The all-new capsule is engineered to sub-micron tolerances, giving unprecedented consistency of tone and response. The TF-5 features the hallmark clarity and airiness of other RØDE small diaphragm mics, and adds to this a unique warmth of tone which is often lacking in smaller pencil mics of this type, making the TF-5 uniquely versatile.
Features:
- Precision-paired small diaphragm cardioid condenser microphones
- Ultra-low noise
- Flat frequency response
- Tight cardioid directivity
- Warm, accurate sound
- Suitable for the most critical recording applications
- Designed in collaboration with Grammy® award winning classical producer and engineer, Tony Faulkner
| Acoustic Principle | Externally biased condenser |
| Active Electronics | JFET impedance converter with bipolar output buffer |
| Polar Pattern | Cardioid |
| Frequency Range | 20Hz - 20kHz |
| Frequency Response | 30 Hz - 20 kHz ±3dB // 20 Hz - 20 kHz ±4dB |
| Output Impedance | 63? |
| Signal to noise Ratio | 80 dB |
| Equivalent Noise | 14 dB SPL (A-weighted, as per IEC651) |
| Input SPL @ 1% THD | 120 dB SPL (1kHz @ 1% THD, 600? load) |
| Sensitivity | -29 dB re.1 Volt/Pascal or better (35 mV @ 94dB SPL @ 1kHz) |
| Dynamic Range | 112.6 dB (1kHz @ Max SPL) |
| Power Requirements | 7mA @ 48V phantom power |
| Weight (g) | 114g (single microphone) |
| Dimensions | Length: 98.7mm Diameter: 20mm |
