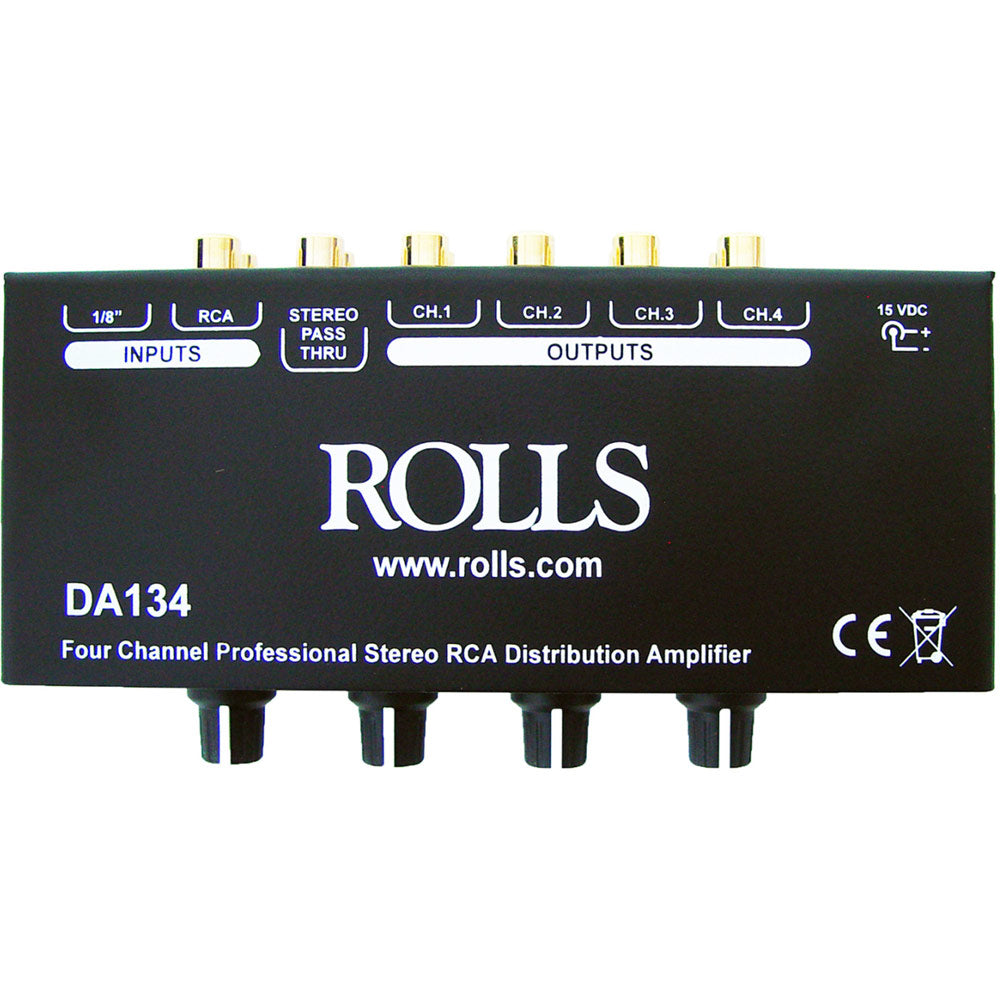

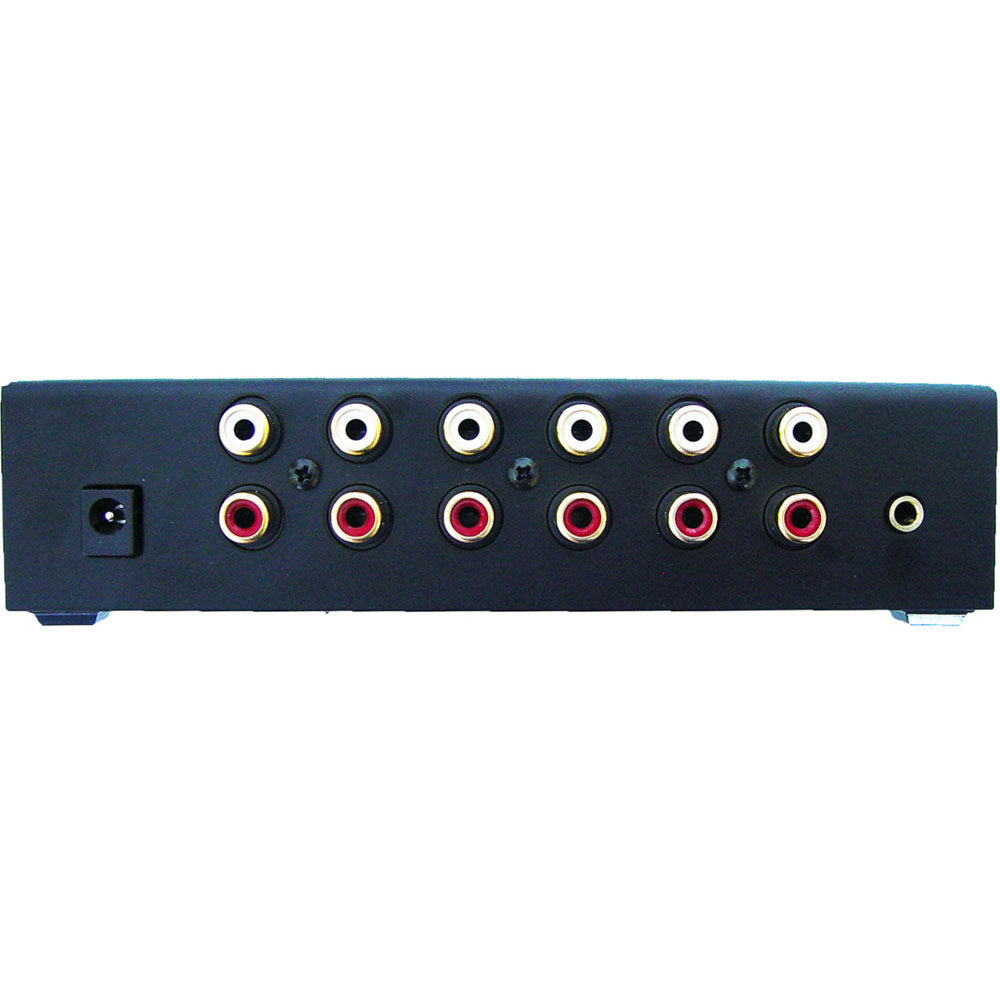

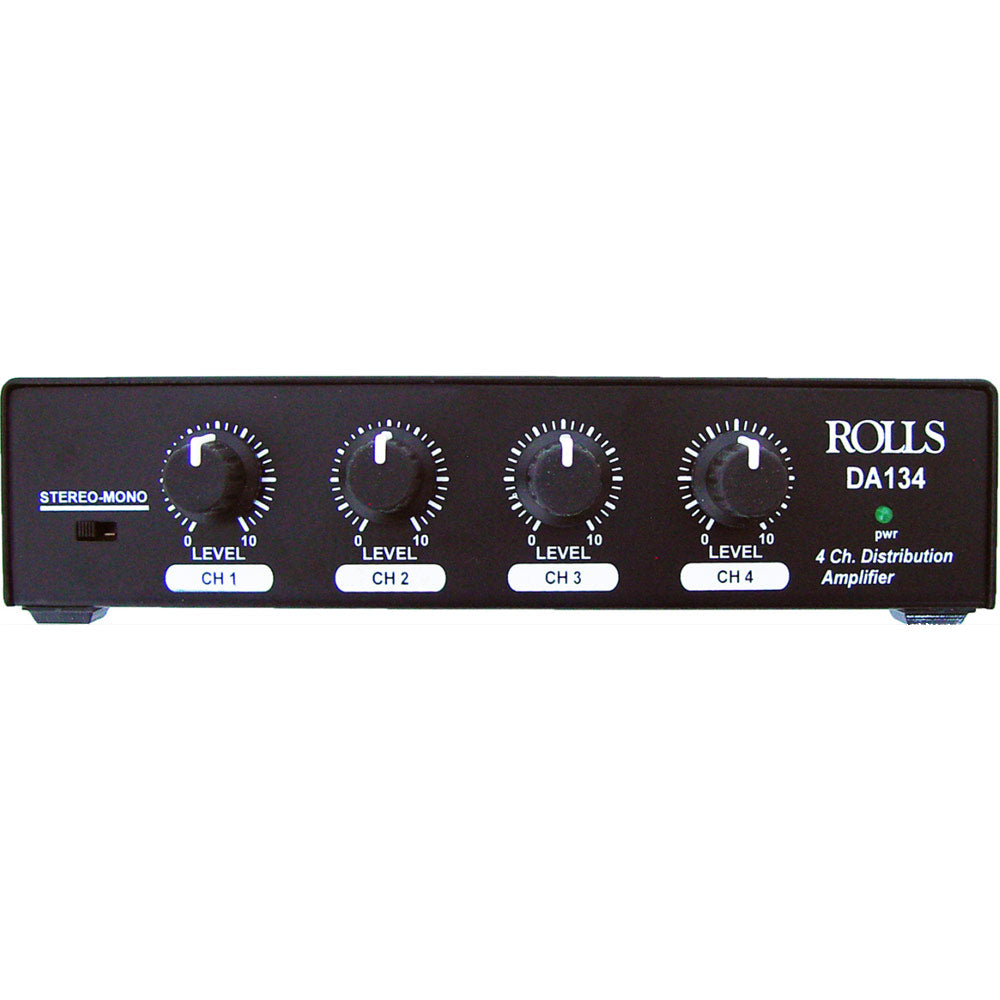

Rolls DA134 4 Way RCA Distribution Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Designed for high end RCA audio distribution the DA134 is a four channel distribution amplifier. RCA and 1/8" inputs that can be switched from mono or stereo. The DA134 will distribute a mono signal to eight outputs, or a stereo signal to four stereo outputs. The outputs are designed to drive line level signals. The DA134 is the perfect distribution amp anywhere high quality sound distribution is required.
Features:
- Expands the output of a stereo device to multiple outputs
- Can raise the output level to true line level for any output
- Stereo 4 channel distribution amplifier
- Front panel volume controls
- Mono or Stereo operation
- DC low end frequency for audiophile frequency response
- Small compact design
- Accepts inputs directly from I-pad / I-pod or laptop
- Included Rolls PS27s power supply.
- Stereo pass thru: For connection to another DA134
| Input Impedance | 10 K |
| Max Input Level | +12 dBV |
| Output Impedance | 470 |
| Max Output Level | +12 dB |
| Max Gain | 20 dB |
| S/N Ratio | >90 dB |
| Cross Talk | -70 dB (stereo) |
| Frequency Response | DC - 60 kHz, +/- 1 dB |
| THD | <.008% |
| Power | 15 VDC |
| Size | 6.5Ó x 3.5Ó x 1.5Ó |
| Weight | 1 lbs. 3 oz. |
Designed for high end RCA audio distribution the DA134 is a four channel distribution amplifier. RCA and 1/8" inputs that can be switched from mono or stereo. The DA134 will distribute a mono signal to eight outputs, or a stereo signal to four stereo outputs. The outputs are designed to drive line level signals. The DA134 is the perfect distribution amp anywhere high quality sound distribution is required.
Features:
- Expands the output of a stereo device to multiple outputs
- Can raise the output level to true line level for any output
- Stereo 4 channel distribution amplifier
- Front panel volume controls
- Mono or Stereo operation
- DC low end frequency for audiophile frequency response
- Small compact design
- Accepts inputs directly from I-pad / I-pod or laptop
- Included Rolls PS27s power supply.
- Stereo pass thru: For connection to another DA134
| Input Impedance | 10 K |
| Max Input Level | +12 dBV |
| Output Impedance | 470 |
| Max Output Level | +12 dB |
| Max Gain | 20 dB |
| S/N Ratio | >90 dB |
| Cross Talk | -70 dB (stereo) |
| Frequency Response | DC - 60 kHz, +/- 1 dB |
| THD | <.008% |
| Power | 15 VDC |
| Size | 6.5Ó x 3.5Ó x 1.5Ó |
| Weight | 1 lbs. 3 oz. |
