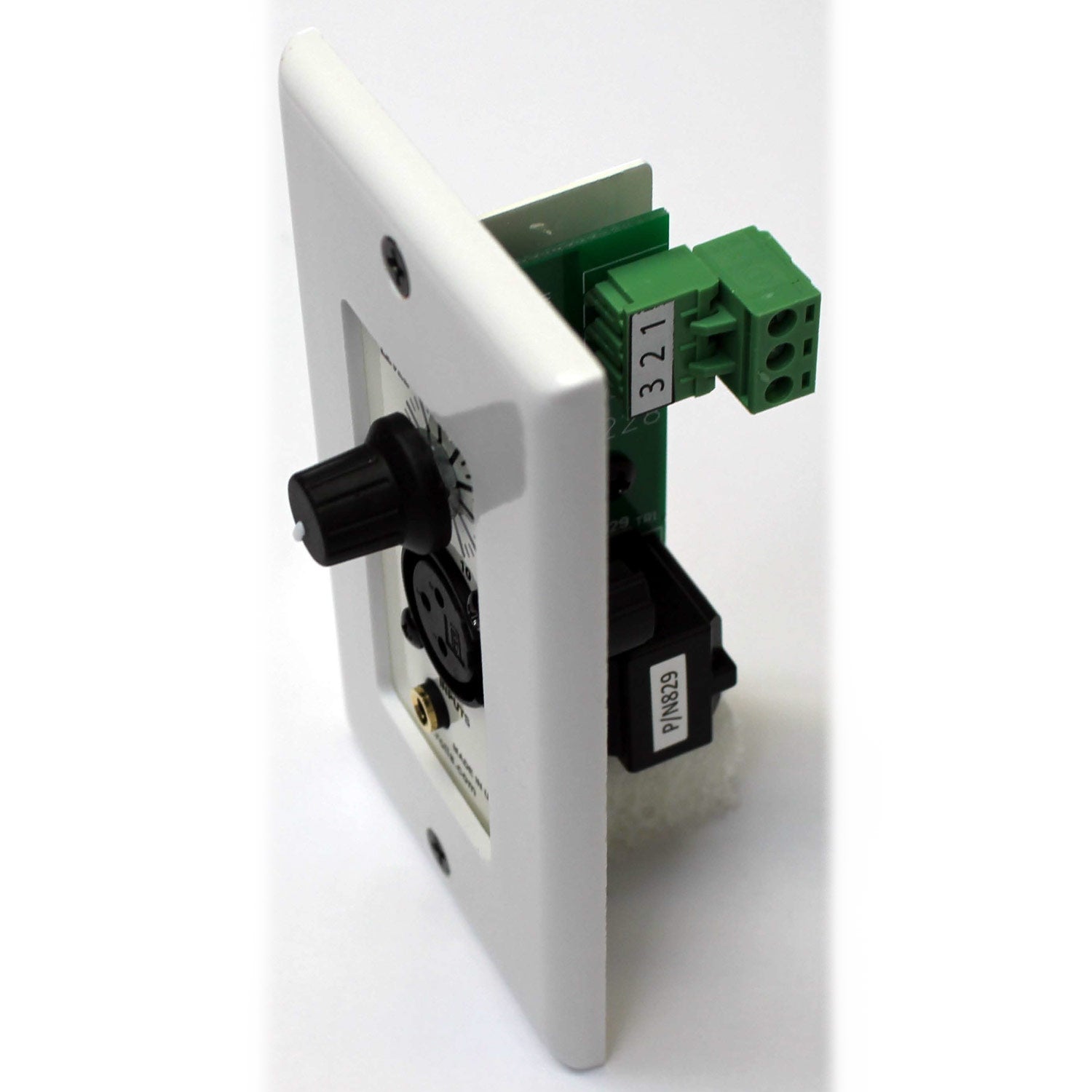

Rolls DB228 Wall Direct Interface

The DB228 Wall Direct Interface is an ideal impedance matching device for connecting any unbalanced stereo signal to a balanced system. Consumer audio equipment such as CD players, DVD players, MP3 players, phone, etc., may be easily connected to a professional audio system. In addition it will mix a microphone with a line level signal and send it out via a plugable barrier strip connector.

Features:

• Level Control adjusts both inputs
• 3.5mm R and L mix to Mono
• Output is a screw terminal plugable strip
• Mounting for standard electrical wall box (not included)
• Trim is for standard Decor'a wall plate (not included)*
• Will pass phantom power
• Decora plastic cover in image is not included.
• Transformer isolation device
• Passive - no power required
• Stereo 1/8" (3.5mm) Input
• Balanced plugable barrier strip Output Connector

The DB228 is an ideal impedance matching device for connecting any unbalanced stereo signal to a balanced system. Consumer audio equipment such as CD players, DVD players, MP3 players, phone, etc., may be easily connected to a professional audio system. In addition it will mix a microphone with a line level signal and send it out via a plugable barrier strip connector.

*Decora plastic cover in image is not included.
