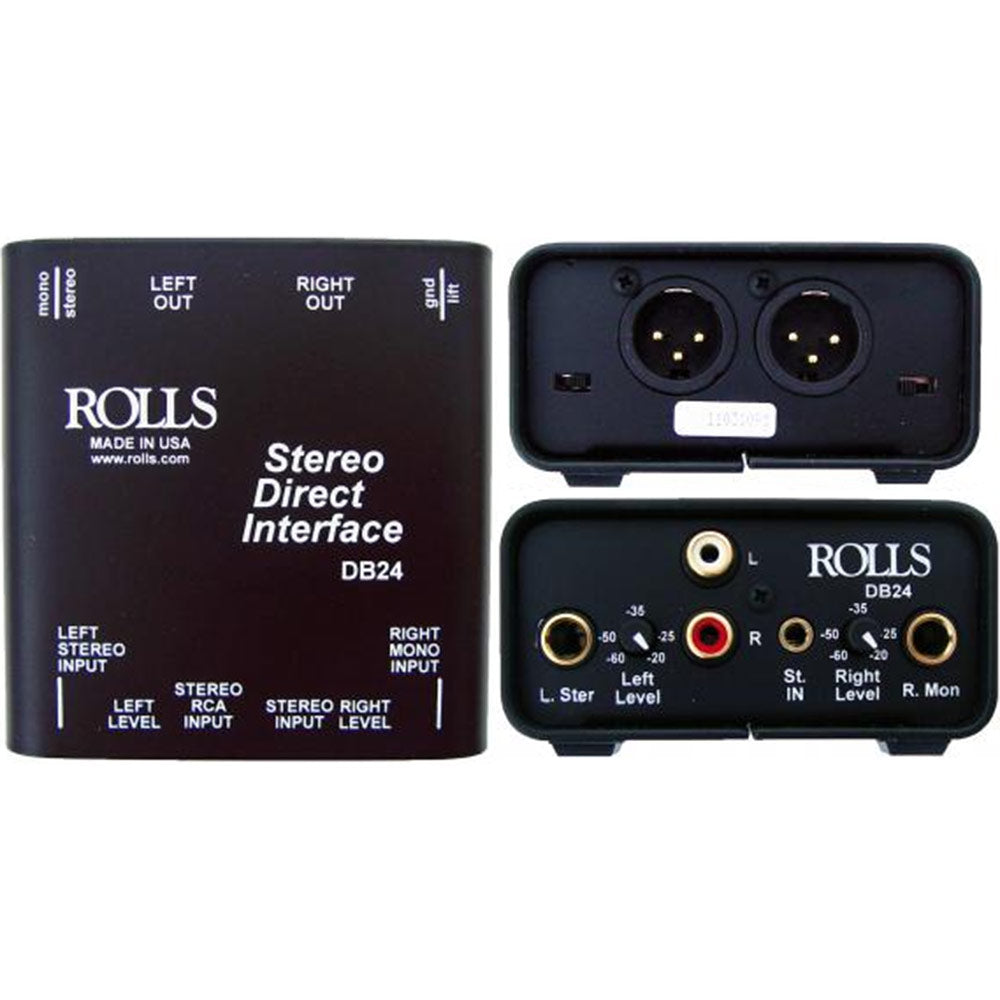

Rolls DB24 Stereo Direct Interface w/ Balanced XLR Outputs
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
introducing the new DB24 Stereo Direct Interface. This unit is a two channel isolation device designed to connect high impedance devices to low impedance. The unit is completely passive, and utilizes Rolls proprietary audio transformers for superior sound. A heavy duty steel chassis was chosen to provide maximum reliability when used in demanding live sound reinforcement applications. A variety of inputs are provided including stereo and mono 1/4", stereo RCA, and stereo 1/8" (3.5mm). The DB24 is an ideal impedance matching device for connecting any unbalanced stereo signal to a balanced system. Consumer audio equipment such as CD players, DVD players, MP3 players, etc., may be easily connected to a professional audio system.
Features:
- Stereo RCA, 1/8" (3.5mm), and dual 1/4 Inputs
- Balanced XLR Outputs
- Ground Lift for each channel
- Individual variable attenuators
| Input Impedance | 20k - 600 Ohms |
| Frequency Response | 50 - 15kHz +/- 3 dB |
| Output Impedance | 600 Ohms |
| Max Output Level | +4 dBm |
| Connectors | 2 ea; XLR Male, 1; Stereo RCA,1; 1/8" (3.5mm) TRS, 2 ea; 1/4" TRS |
| Controls | 2 ea; Variable attenuators, 2 ea; Ground Lift switches |
| Weight | 1.5 lbs. |
| Dimensions | 3.42" w x 1.45" h x 3.325" d |
introducing the new DB24 Stereo Direct Interface. This unit is a two channel isolation device designed to connect high impedance devices to low impedance. The unit is completely passive, and utilizes Rolls proprietary audio transformers for superior sound. A heavy duty steel chassis was chosen to provide maximum reliability when used in demanding live sound reinforcement applications. A variety of inputs are provided including stereo and mono 1/4", stereo RCA, and stereo 1/8" (3.5mm). The DB24 is an ideal impedance matching device for connecting any unbalanced stereo signal to a balanced system. Consumer audio equipment such as CD players, DVD players, MP3 players, etc., may be easily connected to a professional audio system.
Features:
- Stereo RCA, 1/8" (3.5mm), and dual 1/4 Inputs
- Balanced XLR Outputs
- Ground Lift for each channel
- Individual variable attenuators
| Input Impedance | 20k - 600 Ohms |
| Frequency Response | 50 - 15kHz +/- 3 dB |
| Output Impedance | 600 Ohms |
| Max Output Level | +4 dBm |
| Connectors | 2 ea; XLR Male, 1; Stereo RCA,1; 1/8" (3.5mm) TRS, 2 ea; 1/4" TRS |
| Controls | 2 ea; Variable attenuators, 2 ea; Ground Lift switches |
| Weight | 1.5 lbs. |
| Dimensions | 3.42" w x 1.45" h x 3.325" d |
