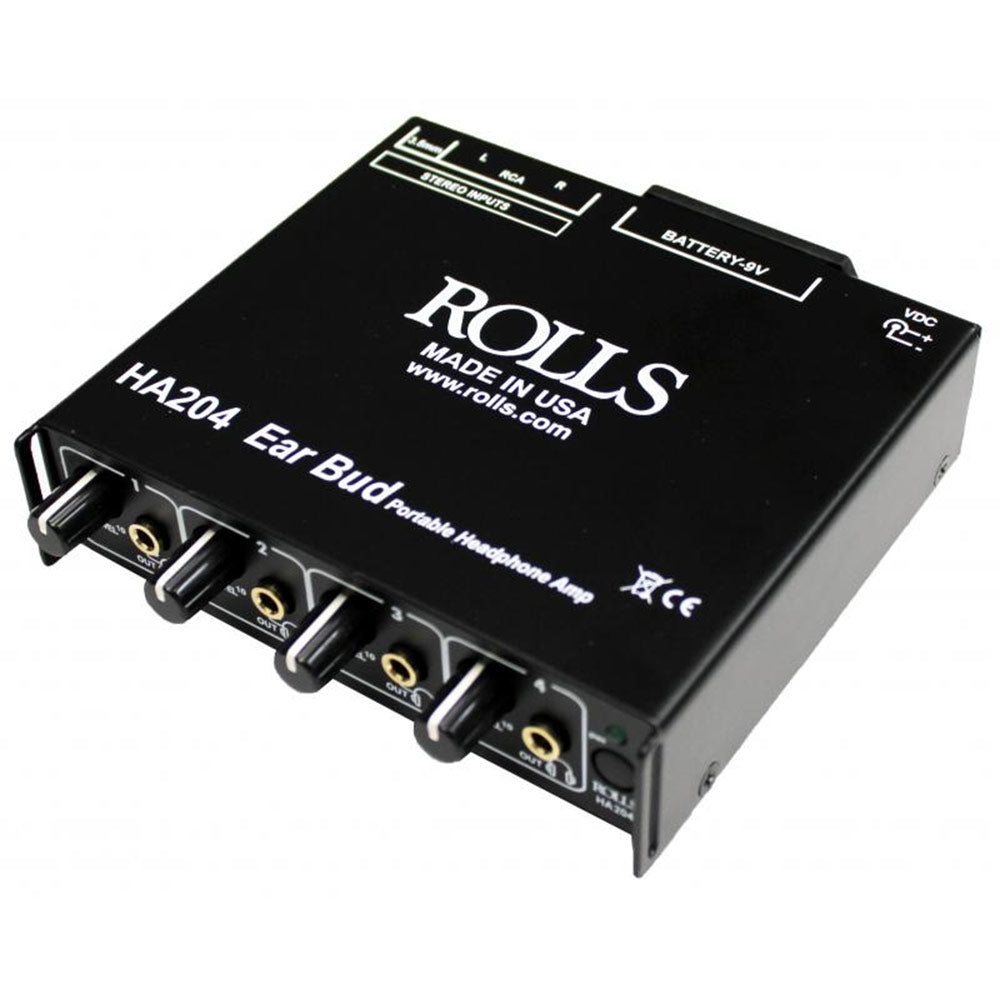

Rolls HA204P EarBud Portable Battery Power Headphone Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The HA204p is a full frequency response, four channel headphone monitoring device designed for the recording studio, or other professional applications. Each output boasts a whopping 20 dB of clean channel gain.
Features:
- Stereo 1/8" and Dual RCA Inputs
- Rotary Volume controls
- AC adapter included
- 15-35k Hz frequency response
- Lots of output level.... it's loud!
- 9V battery Operated
| Input Impedance | 47k Ohms |
| Max Input Level | +13 dBV adapter, +8 dBV Battery |
| Input Connectors | TRS Stereo 1/8Ó, Dual RCA |
| Outputs | 4 - TRS Stereo 1/8Ó (3.5mm) |
| Output Impedance | 10 Ohms each output |
| Max Gain | 20 dB/Channel |
| S/N Ratio | >90 dB |
| THD | < .008% |
| IMD (SMPTE) | <.008% |
| Nominal Current Draw | 30 Mills Min./ 400 Mills Max. |
| Expected Battery Life | 8 Hours Continuos use |
| Frequency Response | 15-35K Hz. |
| Recommended Headphone Impedance | 16 to 500 Ohms. |
| Power | 15 VDC (Rolls Model PS27s) |
| Weight | .85 lb |
| Size | 4.5Ó x 1.125Ó x 4.5Ó |
The HA204p is a full frequency response, four channel headphone monitoring device designed for the recording studio, or other professional applications. Each output boasts a whopping 20 dB of clean channel gain.
Features:
- Stereo 1/8" and Dual RCA Inputs
- Rotary Volume controls
- AC adapter included
- 15-35k Hz frequency response
- Lots of output level.... it's loud!
- 9V battery Operated
| Input Impedance | 47k Ohms |
| Max Input Level | +13 dBV adapter, +8 dBV Battery |
| Input Connectors | TRS Stereo 1/8Ó, Dual RCA |
| Outputs | 4 - TRS Stereo 1/8Ó (3.5mm) |
| Output Impedance | 10 Ohms each output |
| Max Gain | 20 dB/Channel |
| S/N Ratio | >90 dB |
| THD | < .008% |
| IMD (SMPTE) | <.008% |
| Nominal Current Draw | 30 Mills Min./ 400 Mills Max. |
| Expected Battery Life | 8 Hours Continuos use |
| Frequency Response | 15-35K Hz. |
| Recommended Headphone Impedance | 16 to 500 Ohms. |
| Power | 15 VDC (Rolls Model PS27s) |
| Weight | .85 lb |
| Size | 4.5Ó x 1.125Ó x 4.5Ó |
