Description

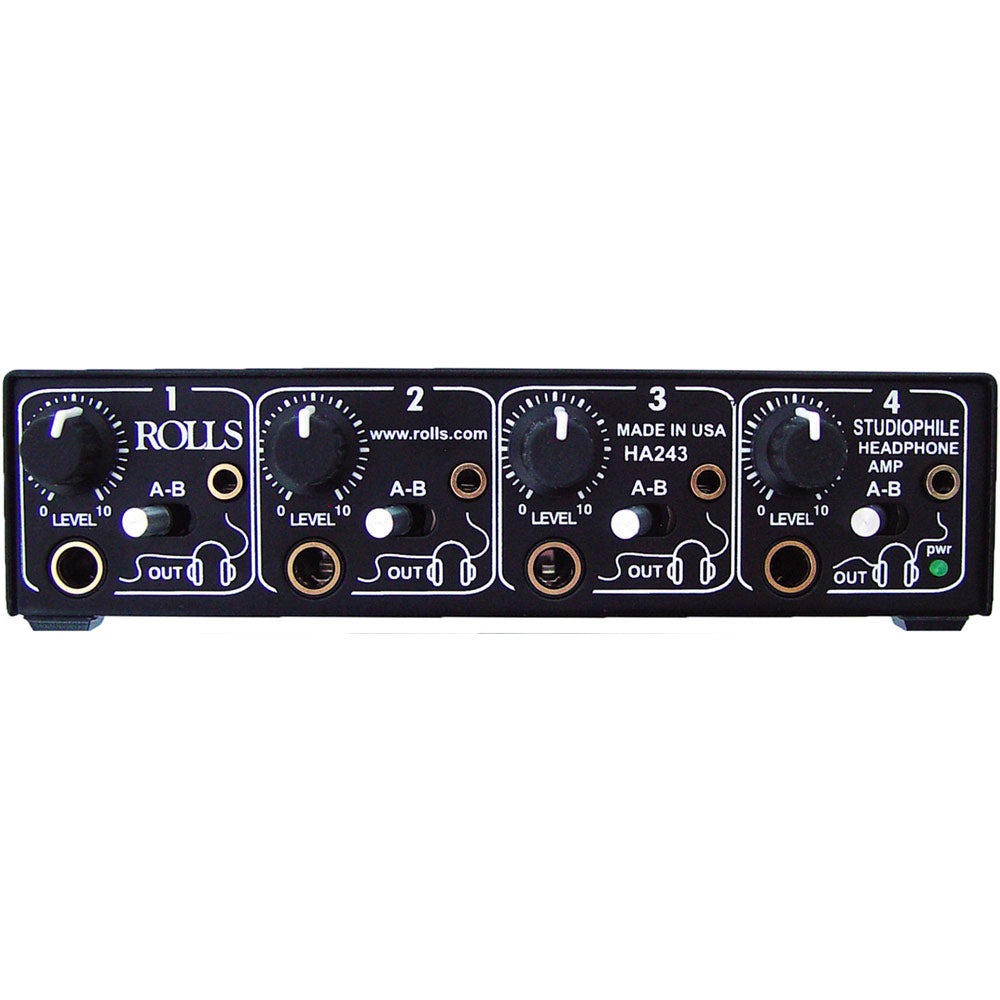

The HA243 is a high powered headphone amplifier with four 1/4" and 1/8" (3.5mm) headphone outs. The HA243 features an A-B switch for each channel to monitor either the A or B input with the flick of a switch!
Features:
- 4: 1/4" TRS Headphone Outputs with Level Control.
- With the new JRC3414 I.C.'s it has plenty of gain!!!

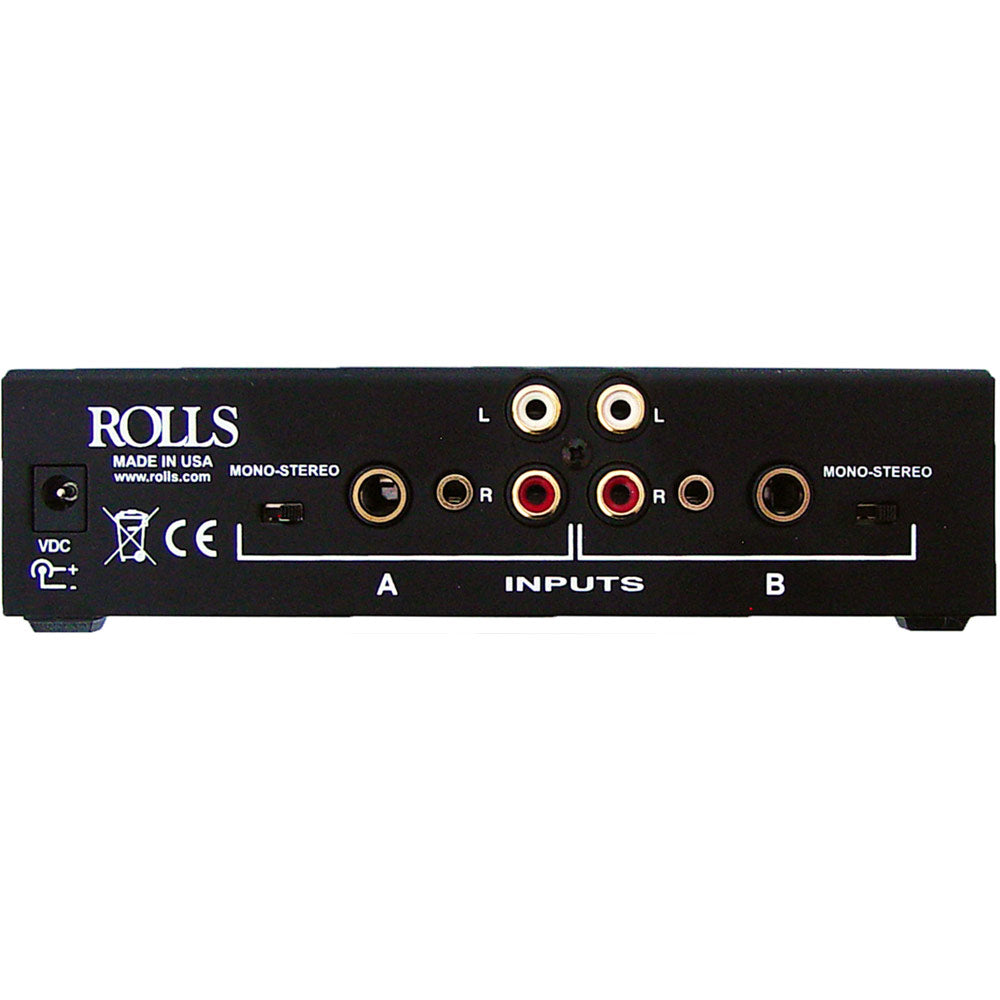

- 1/4" , 3.5mm and RCA A and B Inputs.
- Switchable mono or stereo for both A and B inputs
The HA243 is a four channel headphone amplifier with a variety of input options. Including an A-B selector switch for each channel. Both 1/4" and 1/8" stereo output jacks for each channel. RCA, 1/4" and 1/8" stereo inputs for A and B inputs that can be switched to mono. The HA243 was designed with a new JRC 3414 IC for each channel. This makes the HA243 a very powerful headphone amp, with incredible sound quality. Designed with a studio application in mind, the HA243 is the perfect headphone amp anywhere high quality sound is required.
Input Impedance | 10K Ohms unbalanced |
Max Input Level | +26 dBV |
Input Connectors | RCA,1/4Ó and 3.5mm for both A and B inputs |
Outputs | 4: 1/4" TRS Stereo jacks 4: 1/8" (3.5 mm) TRS Stereo jacks |
Max Gain | 20 dB/Channel |
Output Power | 326 mW/side, 652 mW/Channel @ 62 Ohms |
Frequency Response: | 20 Hz - 20 kHz +/- 3 db |
S/N Ratio | 92 dB |
THD: | <.008% |
IMD | <.008% |
Phase Shift (In to Out) | less than 10 deg. |
Slew Rate: | 2 V per microsecond |
Crosstalk | - 65 dB |
Power | VDC |
Weight | 1.6 lbs |
Size | 6.75Ó x 1.75Ó x 4.75Ó |
Headphone impedance | 8 Ohms to 1000 Ohms |
