Description

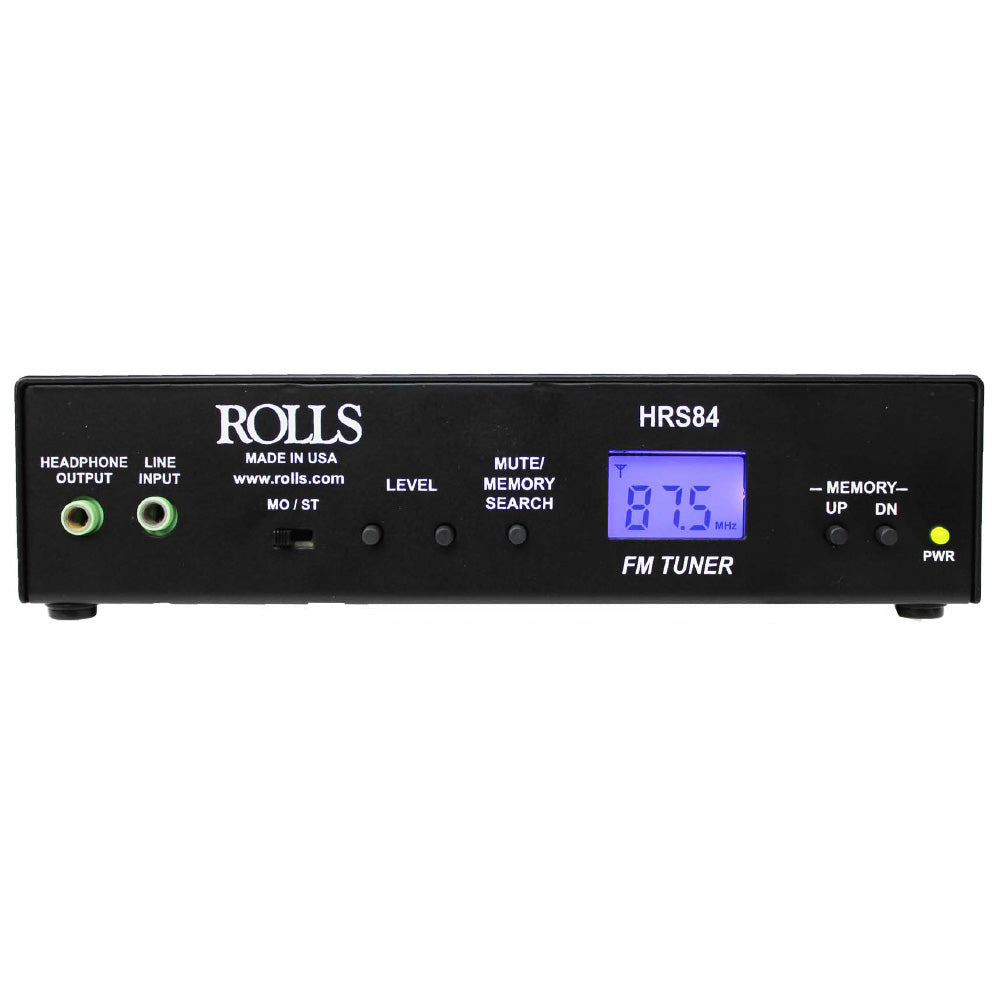

The HRS84 is a digital FM tuner. It features professional line level XLR outputs and a dedicated headphone output on the front of the unit. Operates in Mono or Stereo. Up to two HRS84's can be rack mounted in a single standard 1U rack space, the Rolls URT5 (Universal Rack Tray), or the RMS270 Rack Module System.
Features:
- Tuning Range: 87.5 - 108 MHz
- Output Level control
- XLR and RCA Outputs
- FM stereo or mono operation
30 dB quieting sensitivity | 28 dB |
Image Rejection 105.9 MHz | 20 - 26 dB |
3dB Limiting Sensitivity | 28 - 35 dB |
THD 1 mV Input | 0.5 - 2 % |
Auto Tuning Sensitivity 97.9 MHz | 25 - 30 dB |
Current | 100 mA |
Supply Voltage | 12-15 VDC |
Dimensions | 6.75"w x 3"d x 1.6"h |
Weight | 1.1 lbs |
The HRS84 is a digital FM tuner. It features professional line level XLR outputs and a dedicated headphone output on the front of the unit. Operates in Mono or Stereo. Up to two HRS84's can be rack mounted in a single standard 1U rack space, the Rolls URT5 (Universal Rack Tray), or the RMS270 Rack Module System.
Features:
- Tuning Range: 87.5 - 108 MHz
- Output Level control
- XLR and RCA Outputs
- FM stereo or mono operation
30 dB quieting sensitivity | 28 dB |
Image Rejection 105.9 MHz | 20 - 26 dB |
3dB Limiting Sensitivity | 28 - 35 dB |
THD 1 mV Input | 0.5 - 2 % |
Auto Tuning Sensitivity 97.9 MHz | 25 - 30 dB |
Current | 100 mA |
Supply Voltage | 12-15 VDC |
Dimensions | 6.75"w x 3"d x 1.6"h |
Weight | 1.1 lbs |
