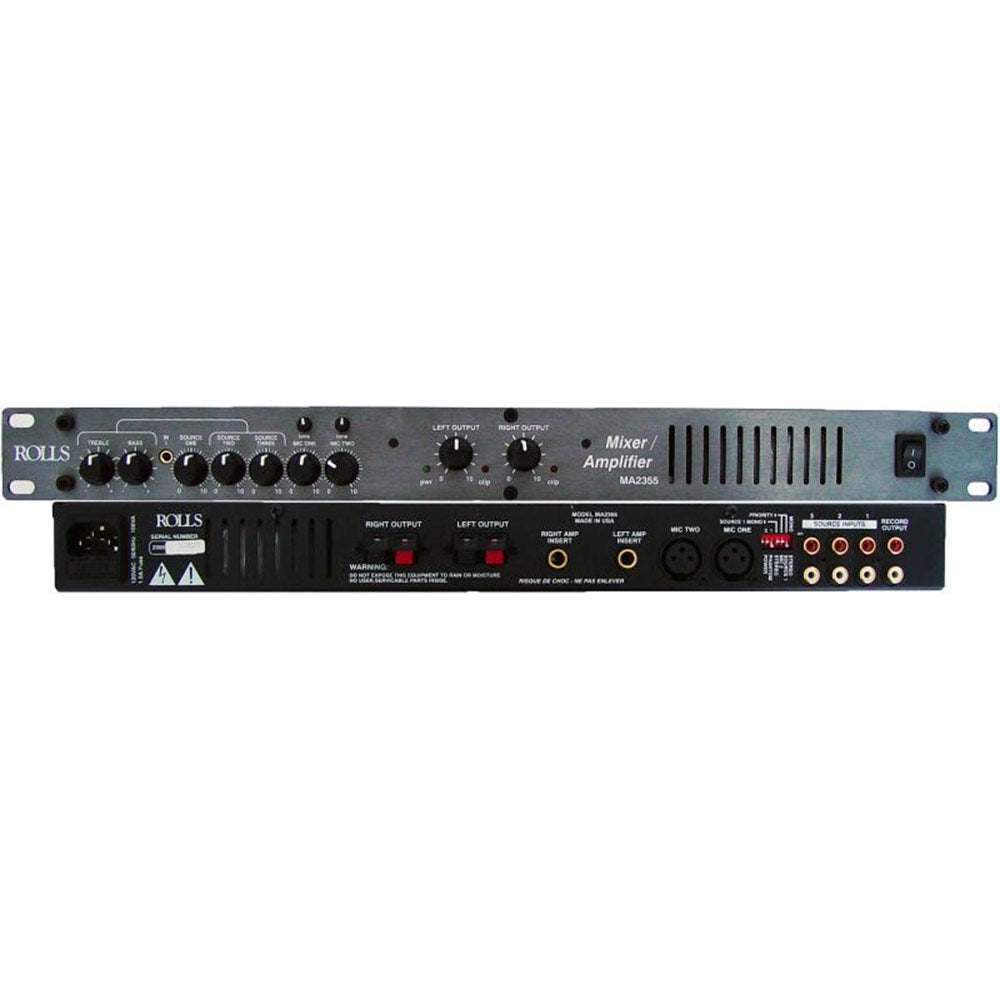

Rolls MA2355 Stereo Mixer/Amplifier - 35 Watts/Ch - Single Rack Space
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The MA2355 is a single rack space mixer amplifier designed for small installation applications. The unit provides a compact and efficient way to mix up to three sources such as AM/FM tuners, CD players, and video players with up to two microphones. Priority talkover is provided on Microphone One for paging, and on Source Three for a jukebox, telephone, etc. The power amplifier provides 35 Watts of power connected to 8 ohm speakers. IMPORTANT NOTICES: THE FRONT PANEL ACTS AS THE HEAT SINK FOR THIS UNIT AND MAY GET HOT UNDER A HEAVY LOAD.
Features:
- Two Microphone inputs with phantom power
- Tone controls for each Mic input
- Three stereo Source inputs
- Direct access to the power amp section
- Bass and Treble controls on Sources Two and Three
- Priority ducking on Mic Two and Source One
- Dual pre-master level Record Output
- Fault protected power amp
- Spring-loaded output terminals
- Clip indication
- FR4 Double-sided epoxy circuit board
- Socketed ICs
- Made in the U.S.A
| MIXER | |
| Input Impedance | Mic: 600 Ohms XLR balanced |
| Source | 22K Ohms RCA |
| Insert | 22K Ohms 1/4Ó TS unbal |
| Max Input Level | Mic: -14 dBV Mic level Max |
| Source | 24 dBV |
| Insert | 24 dBV |
| Connectors | 2: XLR, 6: Stereo RCA, 3: 1/4Ó TRS, 1: 1/4Ó TS, 1: 1/8Ó (3.5mm) |
| Phantom Power | +12 VDC |
| Max Gain: | Mic: 60 dBV |
| Source | 26 dBV |
| Tone Controls | +/-12 dB 100 Hz Bass +/-12 dB 11kHz Treble |
| Noise Floor | Speaker Out: -67 dBV |
| Pre Out | -90 dBV |
| THD + Noise | -82 dBV |
| S/N Ratio | 96 dBV |
| Priority Attenuation | 60 dBVPOWER AMP |
| Recommended Load | 8 Ohms |
| Frequency Response | 60Hz to 20 kHz |
| THD + Noise | .06% typical - 82 dBV |
| Power | 120 VAC |
| Size (W x H x D) | 19Ó x 1.75Ó x 5Ó (48 x 4.5 x 12.7) |
| Weight | 5.5 lbs (2.5 kg) |
The MA2355 is a single rack space mixer amplifier designed for small installation applications. The unit provides a compact and efficient way to mix up to three sources such as AM/FM tuners, CD players, and video players with up to two microphones. Priority talkover is provided on Microphone One for paging, and on Source Three for a jukebox, telephone, etc. The power amplifier provides 35 Watts of power connected to 8 ohm speakers. IMPORTANT NOTICES: THE FRONT PANEL ACTS AS THE HEAT SINK FOR THIS UNIT AND MAY GET HOT UNDER A HEAVY LOAD.
Features:
- Two Microphone inputs with phantom power
- Tone controls for each Mic input
- Three stereo Source inputs
- Direct access to the power amp section
- Bass and Treble controls on Sources Two and Three
- Priority ducking on Mic Two and Source One
- Dual pre-master level Record Output
- Fault protected power amp
- Spring-loaded output terminals
- Clip indication
- FR4 Double-sided epoxy circuit board
- Socketed ICs
- Made in the U.S.A
| MIXER | |
| Input Impedance | Mic: 600 Ohms XLR balanced |
| Source | 22K Ohms RCA |
| Insert | 22K Ohms 1/4Ó TS unbal |
| Max Input Level | Mic: -14 dBV Mic level Max |
| Source | 24 dBV |
| Insert | 24 dBV |
| Connectors | 2: XLR, 6: Stereo RCA, 3: 1/4Ó TRS, 1: 1/4Ó TS, 1: 1/8Ó (3.5mm) |
| Phantom Power | +12 VDC |
| Max Gain: | Mic: 60 dBV |
| Source | 26 dBV |
| Tone Controls | +/-12 dB 100 Hz Bass +/-12 dB 11kHz Treble |
| Noise Floor | Speaker Out: -67 dBV |
| Pre Out | -90 dBV |
| THD + Noise | -82 dBV |
| S/N Ratio | 96 dBV |
| Priority Attenuation | 60 dBVPOWER AMP |
| Recommended Load | 8 Ohms |
| Frequency Response | 60Hz to 20 kHz |
| THD + Noise | .06% typical - 82 dBV |
| Power | 120 VAC |
| Size (W x H x D) | 19Ó x 1.75Ó x 5Ó (48 x 4.5 x 12.7) |
| Weight | 5.5 lbs (2.5 kg) |
