Rolls MA252 Compact Class D Stereo Mixer/Amplifier - 20 Watts/Ch - with XLR Input
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

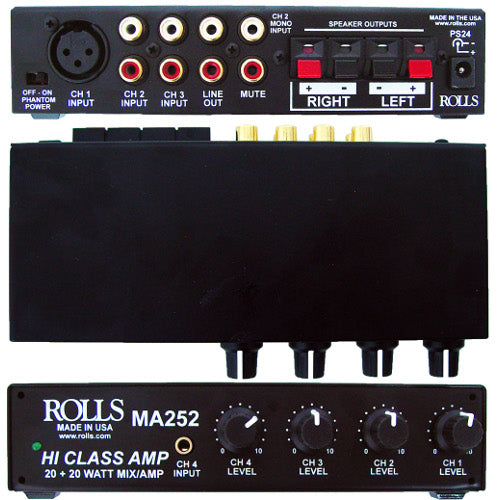

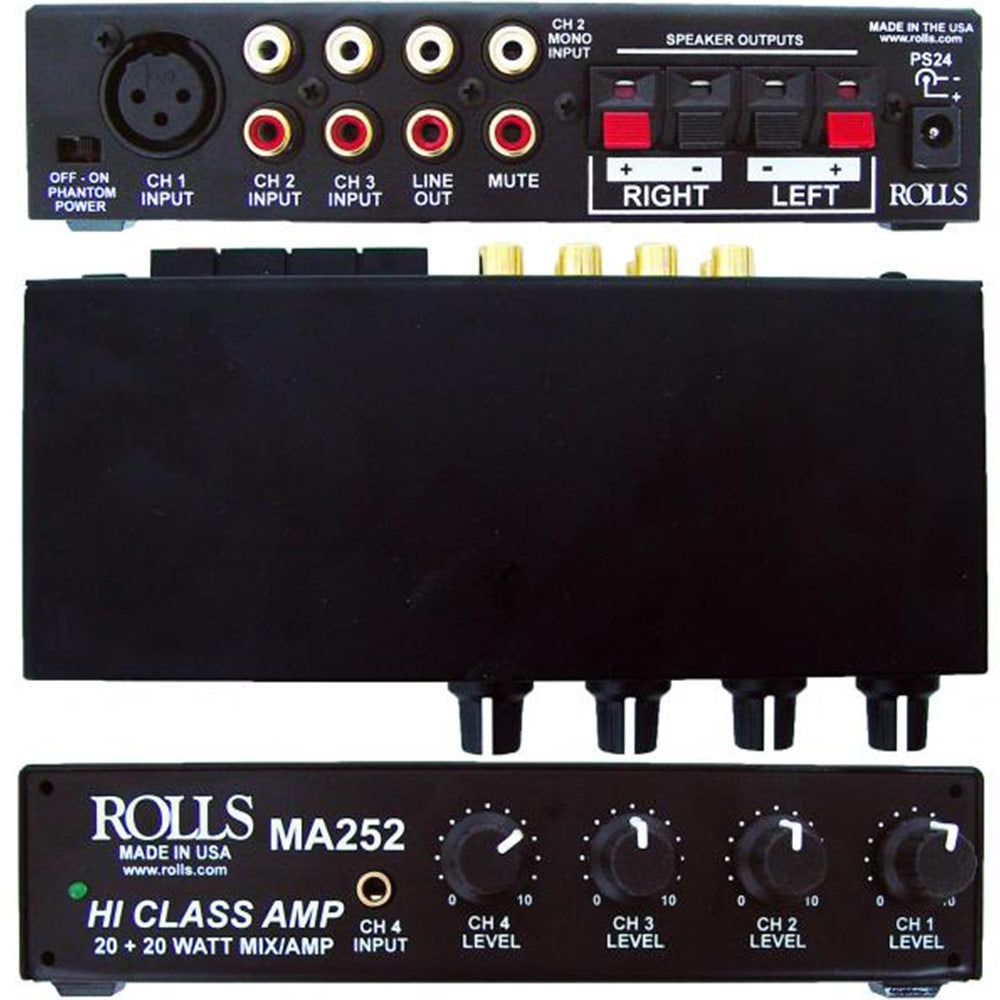

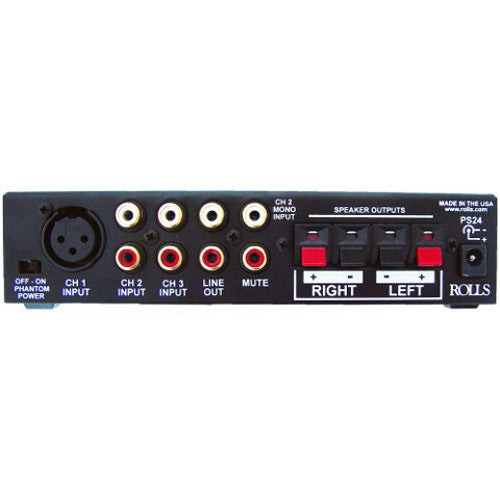

The new MA252 is a compact class D stereo amplifier with a 4-channel stereo mixer built in. It has 20 watts per channel @ 4 Ohms. The class D low heat design gives the MA252 the ability to be mounted in very tight applications. It will work great in ceilings by projectors, or anywhere small and heat free amplification is required. The MA252 is in an all metal chassis and weighs 1 pound. Overall dimensions are 6.75" X 3.5" X 1.5". Bottom mounts are provided for permanent installations. The MA252 has an included 24 VDC external power supply. The 4 channel mixer section consists of 2 separate RCA stereo inputs, along with an XLR mic input and a 3.5mm (1/8") stereo input perfect for an iPod or laptop computer type input. Phantom power is supplied to the XLR input by a switch on the back of the MA252.
| Line Input Impedance | 10K Ohms line 600 Ohms mic |
| Power Output | 20 watts X 2 @ 4 Ohms |
| Voltage Gain | 55 dB mic 30 dB line |
| Maximum Supply Voltage | 24 VDC |
| THD | .05% typical |
| Efficiency | 85% |
| Bandwidth | 20Hz - 25 kHz |
| Size | 6.75" x 3.5" x 1.5" |
| Weight | 1 lb. |
The new MA252 is a compact class D stereo amplifier with a 4-channel stereo mixer built in. It has 20 watts per channel @ 4 Ohms. The class D low heat design gives the MA252 the ability to be mounted in very tight applications. It will work great in ceilings by projectors, or anywhere small and heat free amplification is required. The MA252 is in an all metal chassis and weighs 1 pound. Overall dimensions are 6.75" X 3.5" X 1.5". Bottom mounts are provided for permanent installations. The MA252 has an included 24 VDC external power supply. The 4 channel mixer section consists of 2 separate RCA stereo inputs, along with an XLR mic input and a 3.5mm (1/8") stereo input perfect for an iPod or laptop computer type input. Phantom power is supplied to the XLR input by a switch on the back of the MA252.
| Line Input Impedance | 10K Ohms line 600 Ohms mic |
| Power Output | 20 watts X 2 @ 4 Ohms |
| Voltage Gain | 55 dB mic 30 dB line |
| Maximum Supply Voltage | 24 VDC |
| THD | .05% typical |
| Efficiency | 85% |
| Bandwidth | 20Hz - 25 kHz |
| Size | 6.75" x 3.5" x 1.5" |
| Weight | 1 lb. |
