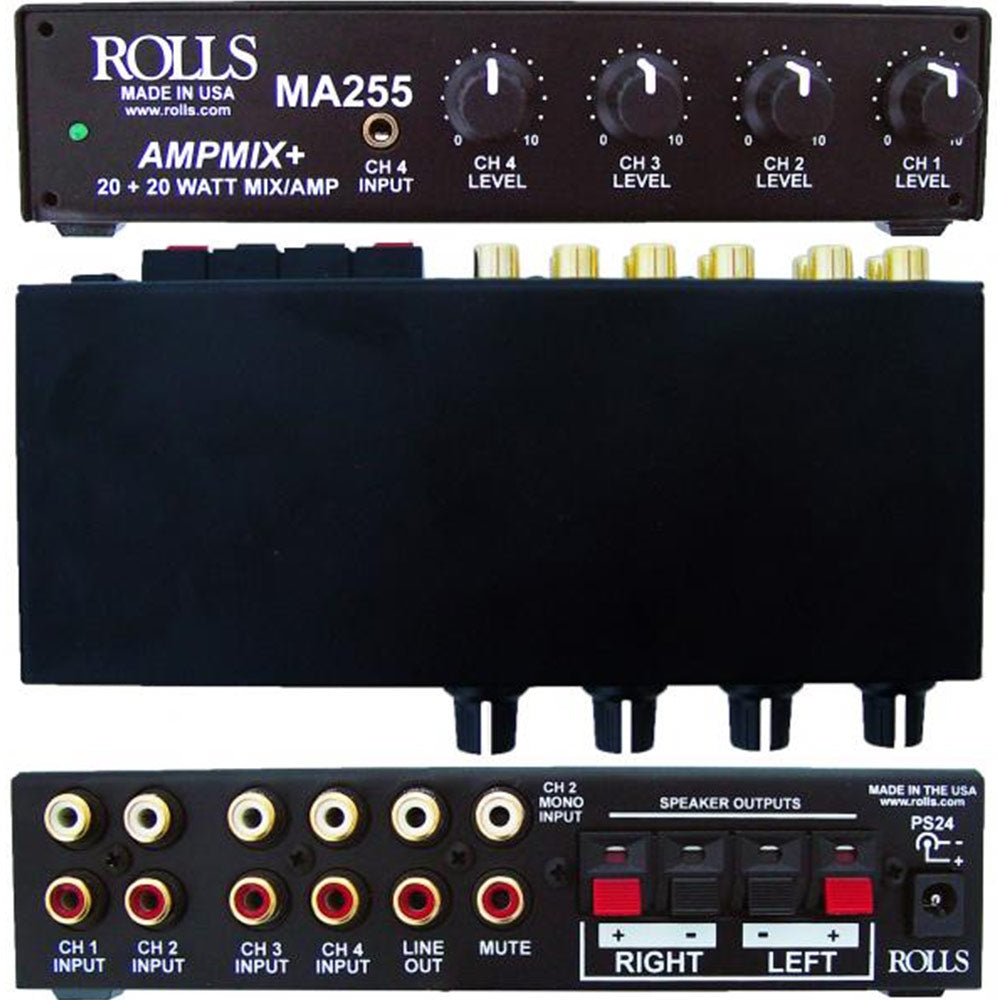

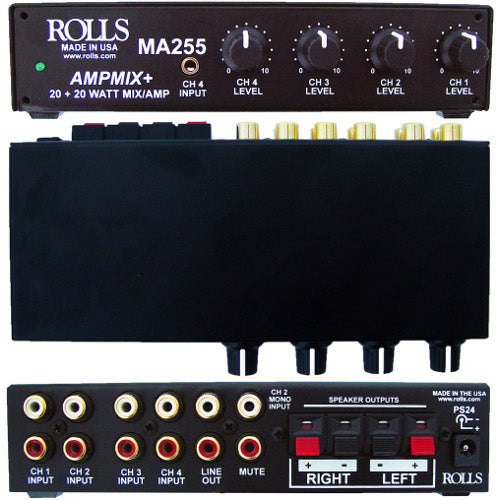

Rolls MA255 Compact Class D Stereo Mixer/Amplifer - 20 Watts/Ch

  • Dale #:

    ROLL-MA255
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The new MA255 is a compact class D stereo amplifier with a 4-channel stereo mixer built in. It has 20 watts per channel @ 4 Ohms. The class D low heat design gives the MA255 the ability to be mounted in very tight applications. It will work great in ceilings by projectors, or anywhere small and h... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The new MA255 is a compact class D stereo amplifier with a 4-channel stereo mixer built in. It has 20 watts per channel @ 4 Ohms. The class D low heat design gives the MA255 the ability to be mounted in very tight applications. It will work great in ceilings by projectors, or anywhere small and heat free amplification is required. The MA255 is built in an all metal chassis and weighs 1 pound. Overall dimensions are 6.75" X 3.5" X 1.5". Bottom mounts are provided for permanent installations. The MA255 has an included 24 VDC external power supply. The 4 channel mixer section consists of 4 separate RCA stereo inputs, along with a 3.5mm (1/8") stereo input perfect for an iPod or laptop computer type input.

More +

Product Specs

Line Input Impedance10K Ohms
Power Output20 watts X 2 @ 4 Ohms
Voltage Gain

30 dB

Maximum Supply Voltage24 VDC
THD.05% typical
Efficiency85%
Bandwidth20Hz - 25 kHz
Size6.75" x 3.5" x 1.5"
Weight1 lb.
