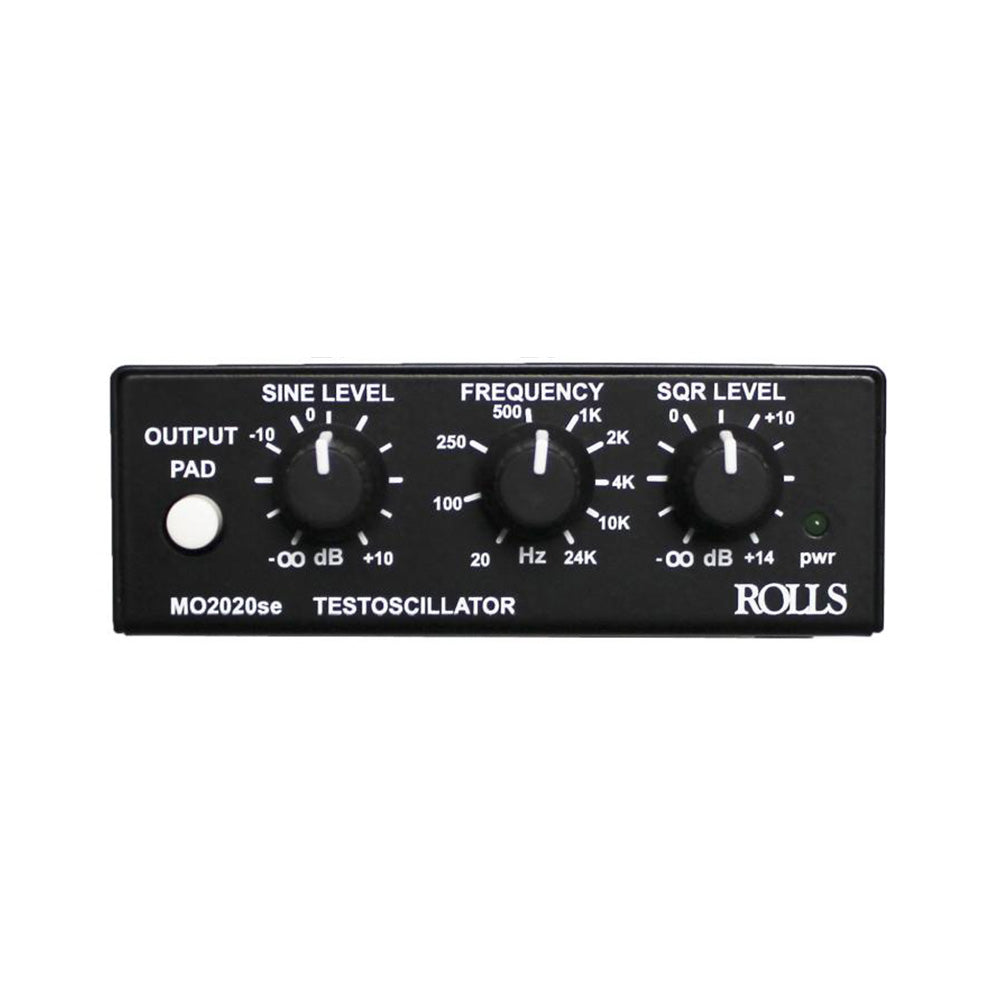

Rolls MO2020se - Test Oscillator and Tone Generator
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

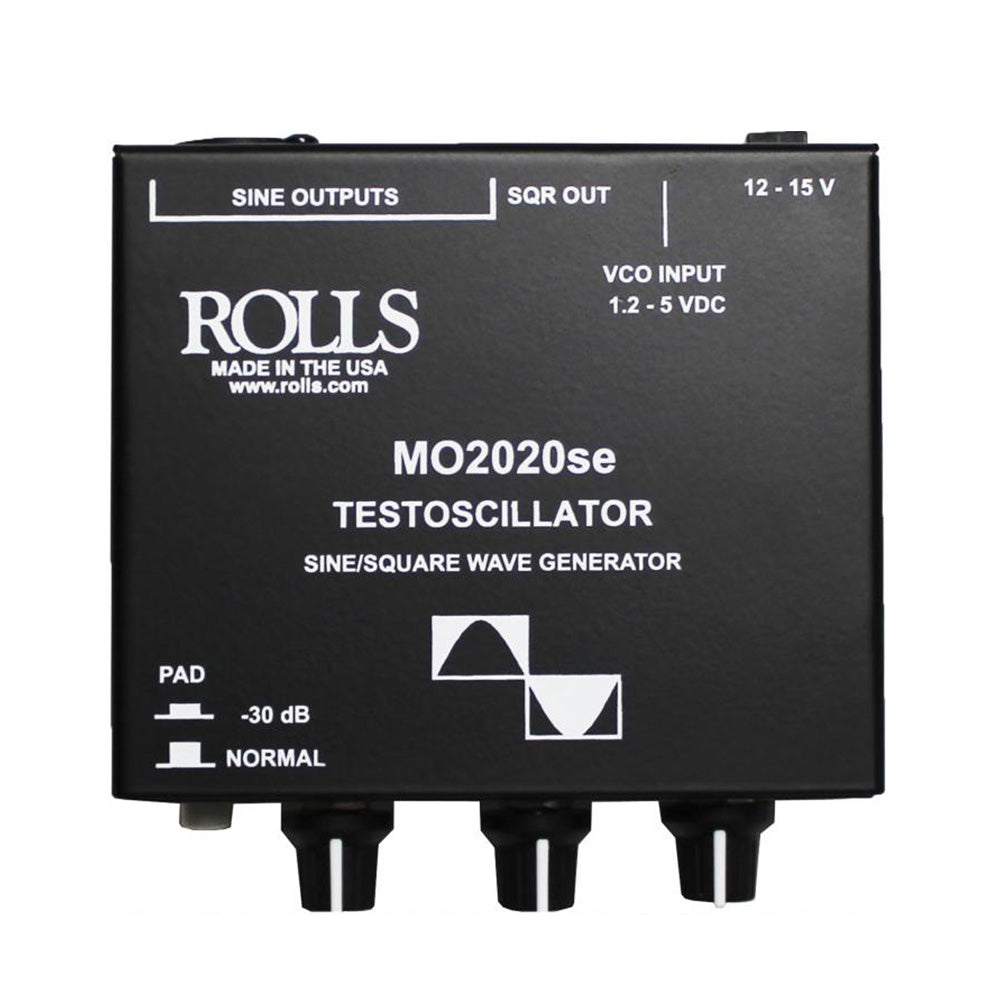

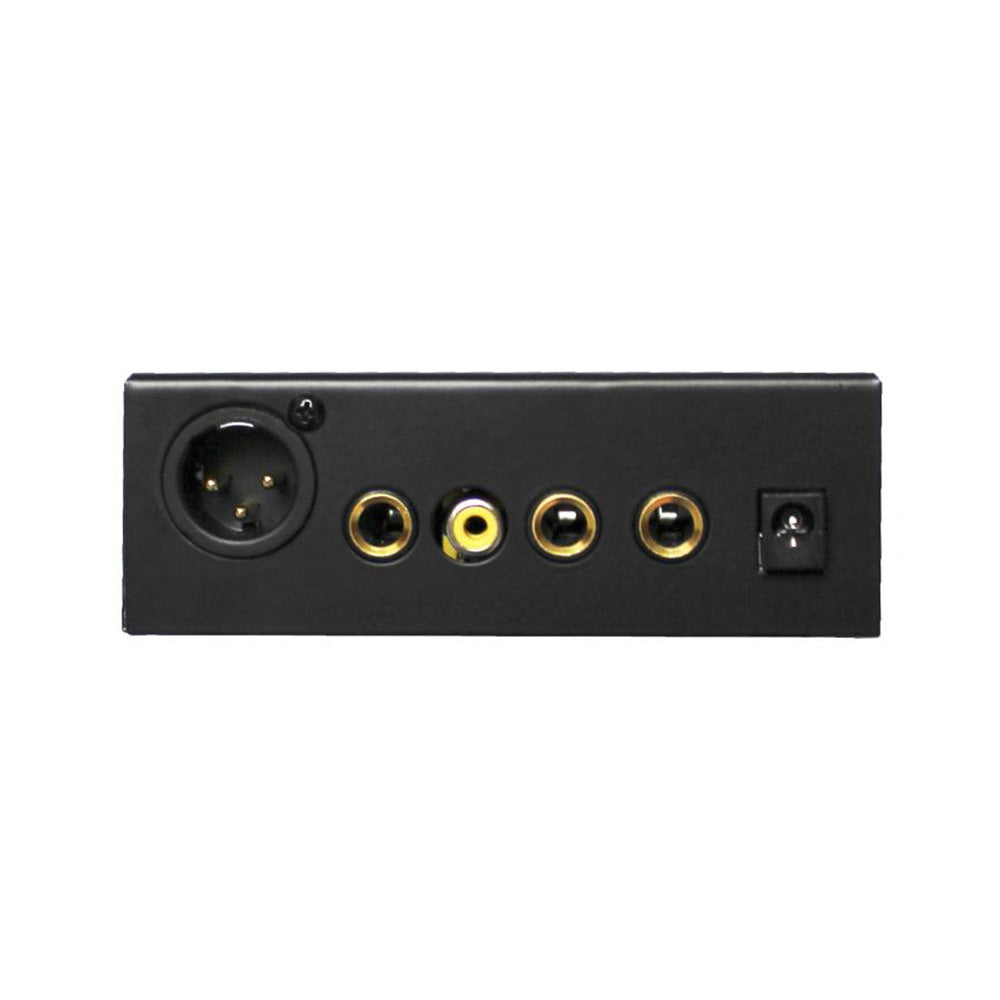

The MO2020se is a signal generator for electronic testing in the audio frequency range. It has XLR, RCA and 1/4" unbalanced sine wave outputs, and a 1/4" unbalanced square wave output. For external control or sweeping of the frequency range, a 1/4" VCO input is provided to receive 1.2 to 5 volts dc.
Features:
- Frequency range from 20Hz to 24kHz
- Balanced XLR, RCA and 1/4" unbalanced Outputs
- Sine and Square wave outputs
- -30 dB pad for referencing
| Output Level | +11 dB Sine +14 dB Square |
| Output Impedance | 100 ½ |
| THD (Sine) | under 1% |
| Size | 4.25" x 3.75" x 1.75" |
| Power | 12 - 15 Volts DC |
| What's In The Box | 1 - Made in USA MO2020se 1 - Owners manual 1 - Rolls PS27s Power supply |
The MO2020se is a signal generator for electronic testing in the audio frequency range. It has XLR, RCA and 1/4" unbalanced sine wave outputs, and a 1/4" unbalanced square wave output. For external control or sweeping of the frequency range, a 1/4" VCO input is provided to receive 1.2 to 5 volts dc.
Features:
- Frequency range from 20Hz to 24kHz
- Balanced XLR, RCA and 1/4" unbalanced Outputs
- Sine and Square wave outputs
- -30 dB pad for referencing
| Output Level | +11 dB Sine +14 dB Square |
| Output Impedance | 100 ½ |
| THD (Sine) | under 1% |
| Size | 4.25" x 3.75" x 1.75" |
| Power | 12 - 15 Volts DC |
| What's In The Box | 1 - Made in USA MO2020se 1 - Owners manual 1 - Rolls PS27s Power supply |
