Rolls MP13 Mini Microphone Preamplifier with XLR and 3.5mm Inputs
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

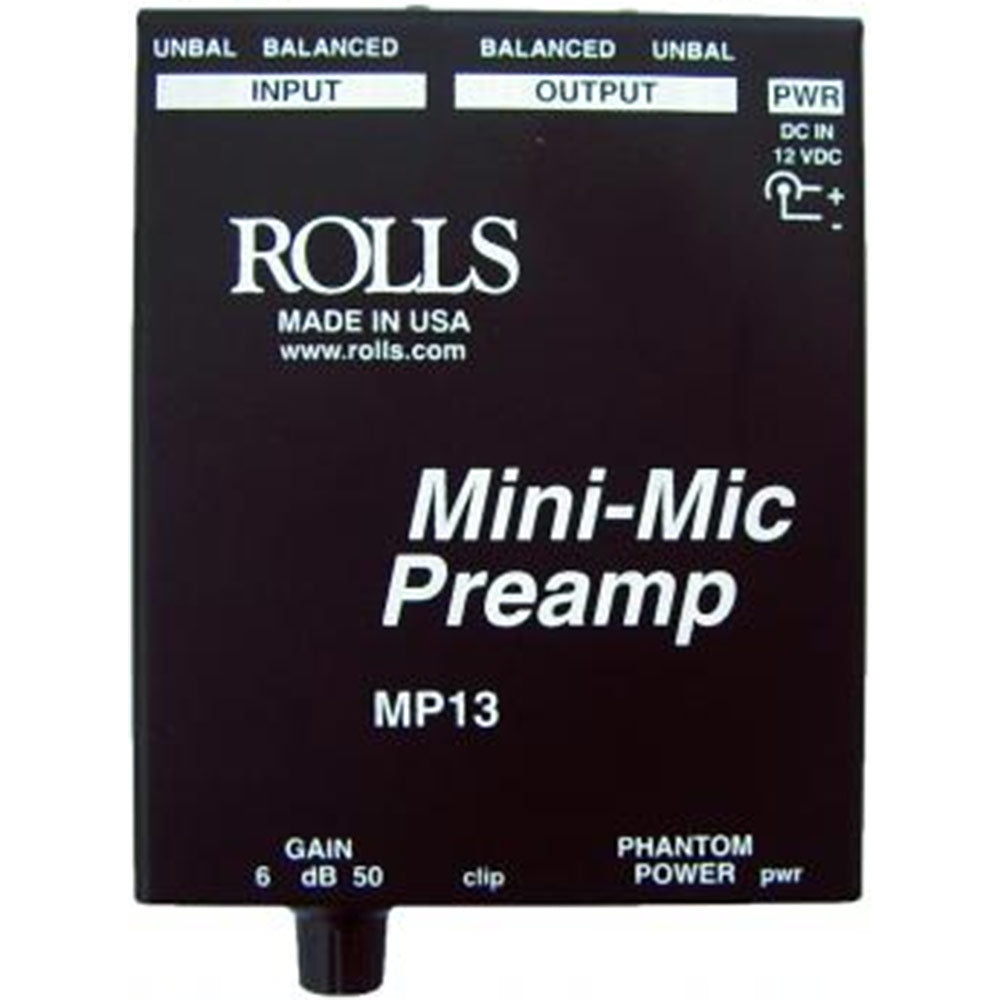

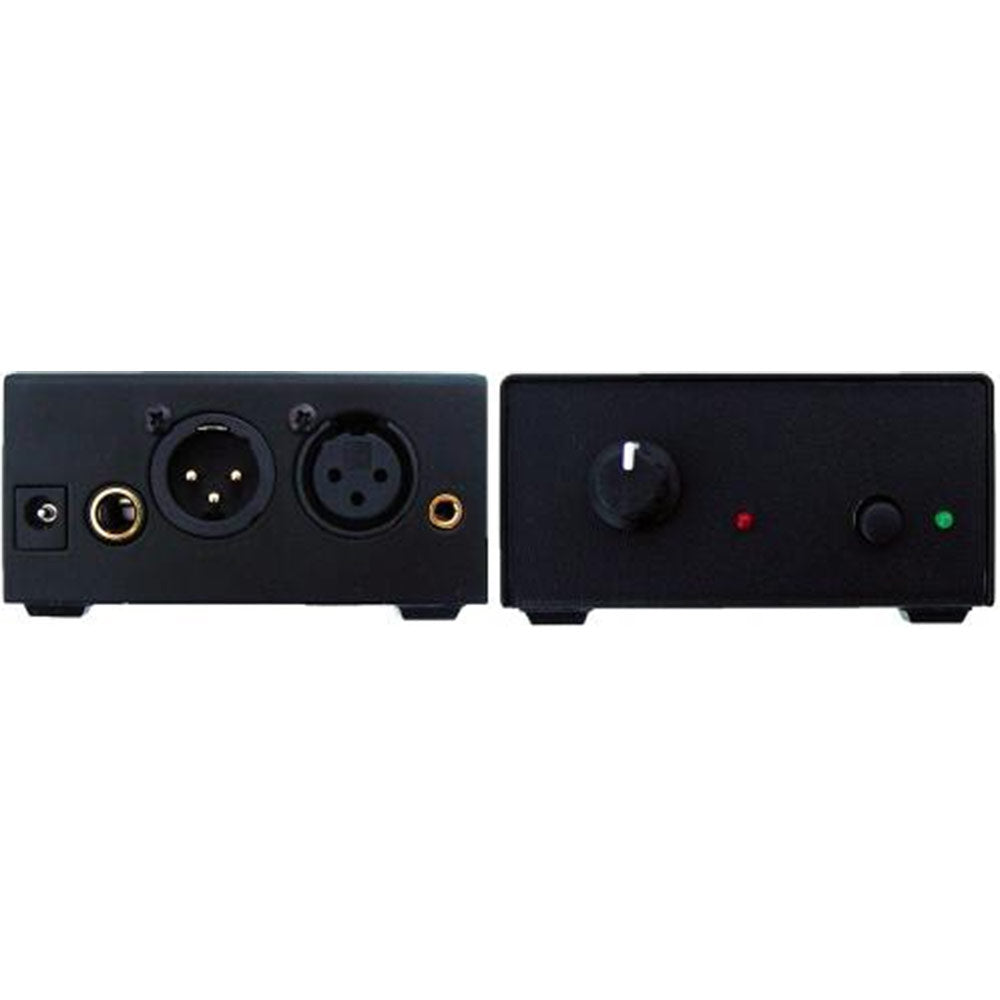

The MP13 is a small, simple, and inexpensive microphone pre amplifier for a variety of applications. The unit has XLR and 1/4" Outputs, XLR and 1/8" Inputs, and a single Gain control with a Clip indicator. Switchable Phantom Power is included for use with a condenser microphone. The unit comes complete with a power adapter.
Features:
- Small size
- Works with dynamic, Phantom and Headset mics
- XLR and 3.5mm inputs
- XLR and 1/4" outs
- Works with 9 to 15 Vdc
| Input Impedance | 10K Ohms balanced/unbalanced |
| Max Input Level | +4dBV XLR balanced, +10dBV unbalanced |
| Max Gain | XLR 60dB, 1/4" 54dB |
| Phase Shift | <10 deg. 20 Hz - 20 kHz |
| EIN | -108dB max. |
| THD | <.01% |
| IMD (SMPTE) | < .01% |
| CMRR | >80 dB |
| Phantom Power | +24 Volts, 6 mA |
| Power | 12-15VDC |
| Size | 3.4" X 4.2" X 1.4" |
| Weight | 1 lbs (.45 kg) |
The MP13 is a small, simple, and inexpensive microphone pre amplifier for a variety of applications. The unit has XLR and 1/4" Outputs, XLR and 1/8" Inputs, and a single Gain control with a Clip indicator. Switchable Phantom Power is included for use with a condenser microphone. The unit comes complete with a power adapter.
Features:
- Small size
- Works with dynamic, Phantom and Headset mics
- XLR and 3.5mm inputs
- XLR and 1/4" outs
- Works with 9 to 15 Vdc
| Input Impedance | 10K Ohms balanced/unbalanced |
| Max Input Level | +4dBV XLR balanced, +10dBV unbalanced |
| Max Gain | XLR 60dB, 1/4" 54dB |
| Phase Shift | <10 deg. 20 Hz - 20 kHz |
| EIN | -108dB max. |
| THD | <.01% |
| IMD (SMPTE) | < .01% |
| CMRR | >80 dB |
| Phantom Power | +24 Volts, 6 mA |
| Power | 12-15VDC |
| Size | 3.4" X 4.2" X 1.4" |
| Weight | 1 lbs (.45 kg) |
