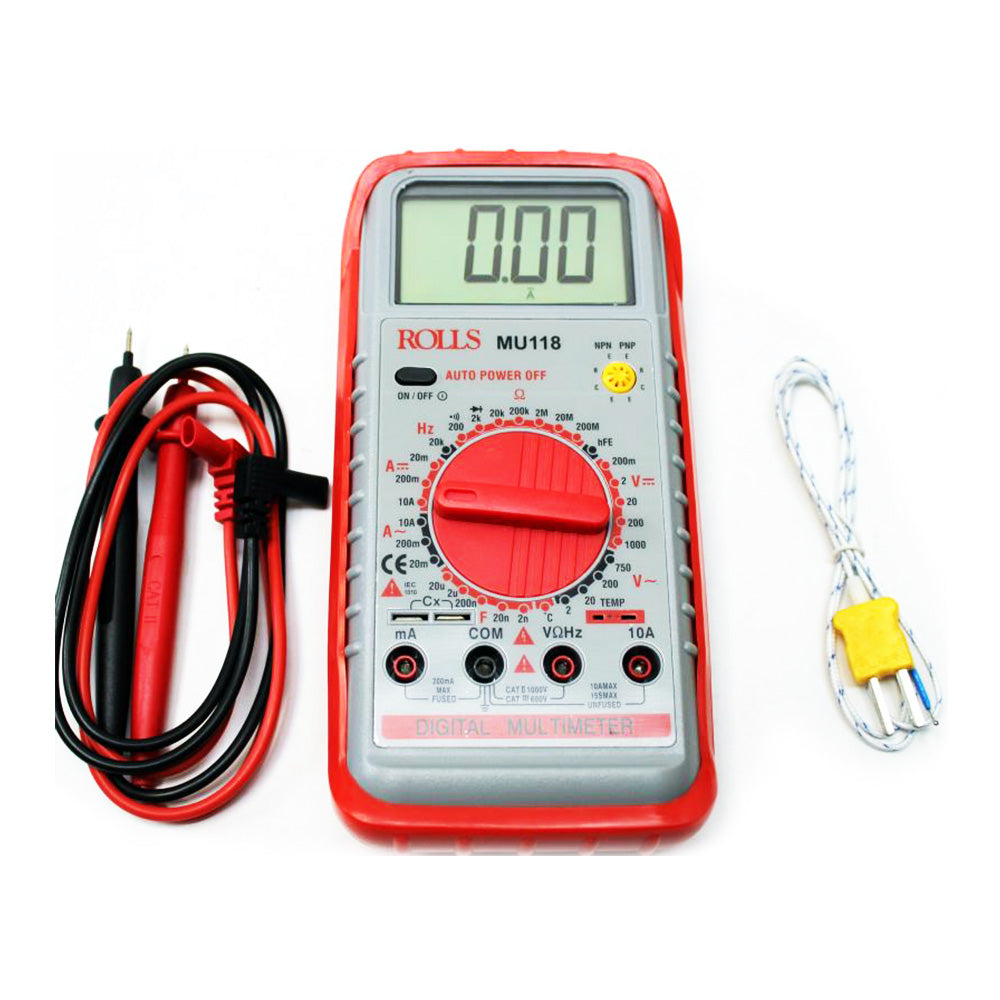

Rolls MU118 Digital Multimeter with Frequency Measurement and Temperature Sensor
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
This instrument is compact, rugged, battery operated, handheld 3 1/2 digit digital multimeter for measuring DC and AC voltage, DC and AC current, resistance and diode, capacitance, transistor, continuity test, temperature and frequency. The dual-slope A-D converter uses C-MOS technology for auto-zeroing, polarity selection and over-range indication. Full overload protection is provided. It is an ideal instrument for use in the field, laboratory, workshop, hobby and home applications.
Features:
- Push-button ON-OFF power switch.
- Single 30 position easy to use rotary switch for function and range selection.
- High sensitivity of 100µV.
- Automatic over range indication with the "1" displayed.
- Automatic polarity indication on DC range.
- All ranges fully protected.
- Resistance measurements 0.1? to 200M?.
- Capacitance measurements 1pF to 20µF.
- Diode testing with 1mA fixed current.
- Transistor hFE test with Ib?100µA.
- Temperature measurement with or without K type thermocouple
| Maximum display | 1999 counts (31/2 digits) with automatic polarity indication and eng. unit. |
| Indication method | LCD display. |
| Measuring method | Dual-slope integration A-D converter system. |
| Overrange indication | Ò1Ó or Ò-1Ó figure only in the display. |
| Maximum common mode voltage | 500V DC/AC rms |
| Reading rate | 2~3 reading per sec. (approximate). |
| Temperature for guaranteed accuracy | 23±5 C |
| Temperature ranges | Operating: 0C to 40C (32F to 104F) Storage: -10C to 50C (14F to 122F) |
| Power supply | One 9V battery (NEDA 1604 or 6F22 or equivalent) |
| Low battery indication | to left of display |
| Size | 88 (W) _ 170 (D) _ 38(H) mm |
| Weight | 340g (including battery) |
| Accessories | Operating manual, set of test leads and thermocouple (K type, 300C) |
This instrument is compact, rugged, battery operated, handheld 3 1/2 digit digital multimeter for measuring DC and AC voltage, DC and AC current, resistance and diode, capacitance, transistor, continuity test, temperature and frequency. The dual-slope A-D converter uses C-MOS technology for auto-zeroing, polarity selection and over-range indication. Full overload protection is provided. It is an ideal instrument for use in the field, laboratory, workshop, hobby and home applications.
Features:
- Push-button ON-OFF power switch.
- Single 30 position easy to use rotary switch for function and range selection.
- High sensitivity of 100µV.
- Automatic over range indication with the "1" displayed.
- Automatic polarity indication on DC range.
- All ranges fully protected.
- Resistance measurements 0.1? to 200M?.
- Capacitance measurements 1pF to 20µF.
- Diode testing with 1mA fixed current.
- Transistor hFE test with Ib?100µA.
- Temperature measurement with or without K type thermocouple
| Maximum display | 1999 counts (31/2 digits) with automatic polarity indication and eng. unit. |
| Indication method | LCD display. |
| Measuring method | Dual-slope integration A-D converter system. |
| Overrange indication | Ò1Ó or Ò-1Ó figure only in the display. |
| Maximum common mode voltage | 500V DC/AC rms |
| Reading rate | 2~3 reading per sec. (approximate). |
| Temperature for guaranteed accuracy | 23±5 C |
| Temperature ranges | Operating: 0C to 40C (32F to 104F) Storage: -10C to 50C (14F to 122F) |
| Power supply | One 9V battery (NEDA 1604 or 6F22 or equivalent) |
| Low battery indication | to left of display |
| Size | 88 (W) _ 170 (D) _ 38(H) mm |
| Weight | 340g (including battery) |
| Accessories | Operating manual, set of test leads and thermocouple (K type, 300C) |
