Description

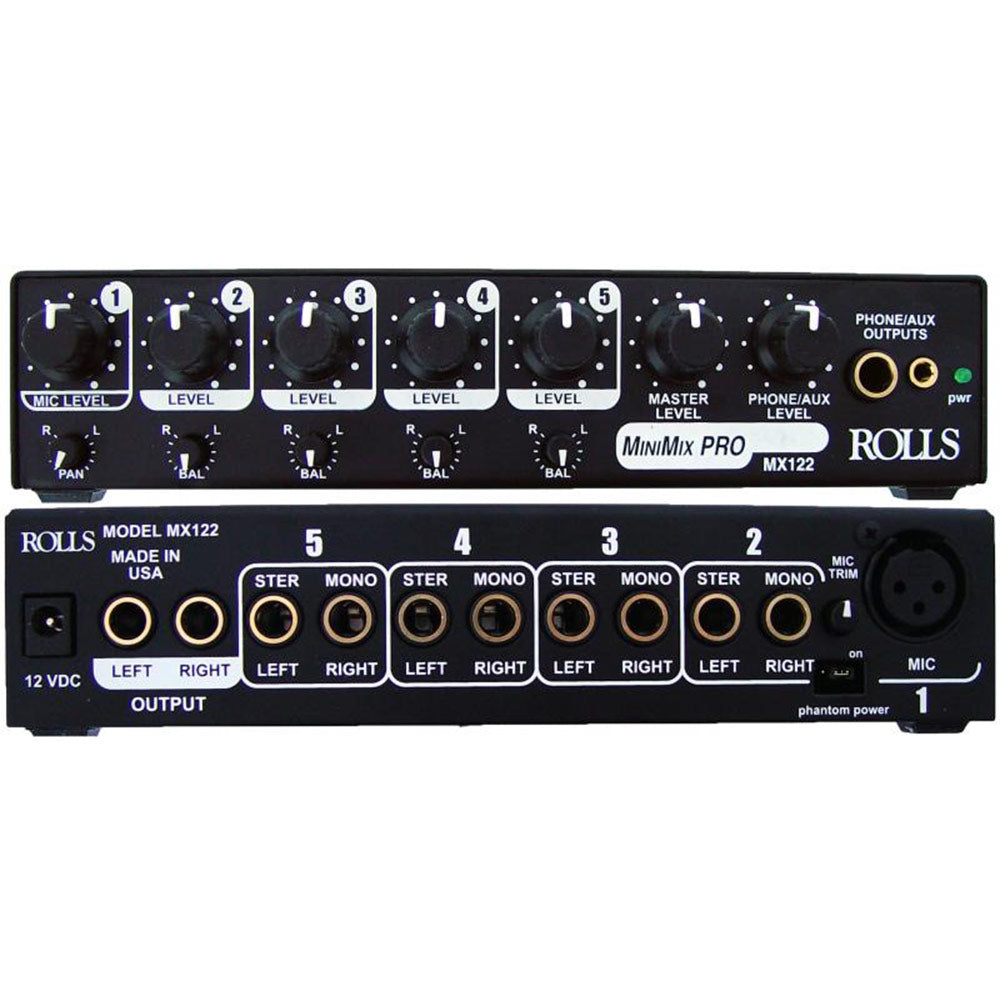

The MX122 is a five channel audio mixer which combines a single microphone signal with four stereo instrument or line level signals. The XLR Microphone input has a trim control and switchable +12 VDC phantom power available. The unit is ideal for musicians needing to mix stereo keyboards and sound modules with a single microphone.
Features:
- 1 XLR Mic Input with rear panel Trim control, balanced
- 4 individual 1/4" Stereo Inputs
- Balanced 1/4" TRS Outputs.
- Balance control on each channel (Pan on the Mic channel).
- Headphone / Auxiliary Outputs
- +12VDC Phantom Power
- External Power Supply included for low noise operation.
Input Impedance: | Line: 10 K Ohms unbal. Mic: 10 K Ohms bal. | ||||||||||||
Phantom Power Voltage | +12 VDC | ||||||||||||
Output Impedance | 50 Ohms bal | ||||||||||||
Max Input Level | +24 dBV line, -8 dBV microphone | ||||||||||||
Phase Shift | < 10 deg. 20 Hz - 20 kHz | ||||||||||||
Connectors |
