Description

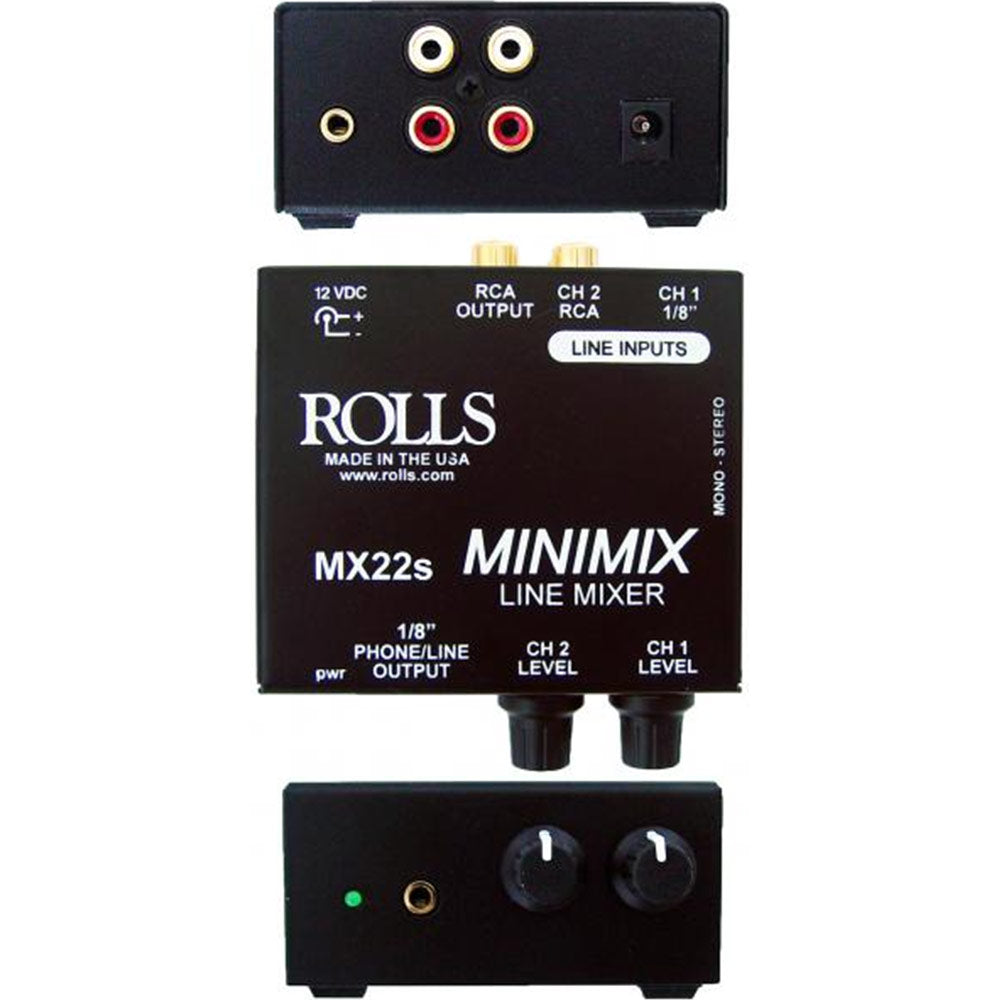

The MX22s is a 2 Channel mixer for mixing a 1/8" line signal such as a laptop computer or Ipod, and a stereo RCA signal such as a CD player. The MX22s has enough output to drive a power amplifier directly, and is ideal for audio visual and aerobics studio applications. The MX22s can be configured as either Stereo (default) or Mono, by moving a shorting jumper on the PCB. Power adapter is included.
Features:
- 1/8" and RCA line level signals
- Dual RCA Stereo output
- Individual controls for each channel
CH 1 Input: 1/8" stereo jack for receiving line or instrument level signals.
CH 2 Input: Stereo RCA input for receiving line level signals.These signals are mixed to mono.
Line 1 Volume: Controls the level of the signal from Channel 1
Line 2 Volume: Controls the level of the signal from Channel 2
Line Outputs: Dual mono RCA and 1/8" jacks for connection to a line input device such as a mixer.
Power Input: For connection to the power supply Rolls PS27.
STEREO/MONO SWITCH: For switching the MX22s from stereo in/out to mono in/out. Units are shipped from the factory in stereo mode.
CH1 Max Gain | 32 dB |
CH2 Max Gain | 20 dB |
CH1 Input Impedance | 10K Ohms |
CH2 Input Impedance | 20K Ohms |
Output Impedance | 50 Ohms |
Power | Rolls PS27 @ 12 VDC 200mA |
Size: | 2.75Ó x 2.35Ó x 1.5Ó (7 x 6 x 3.8 cm) |
Weight | 1lb (.45Kg) |
