Description

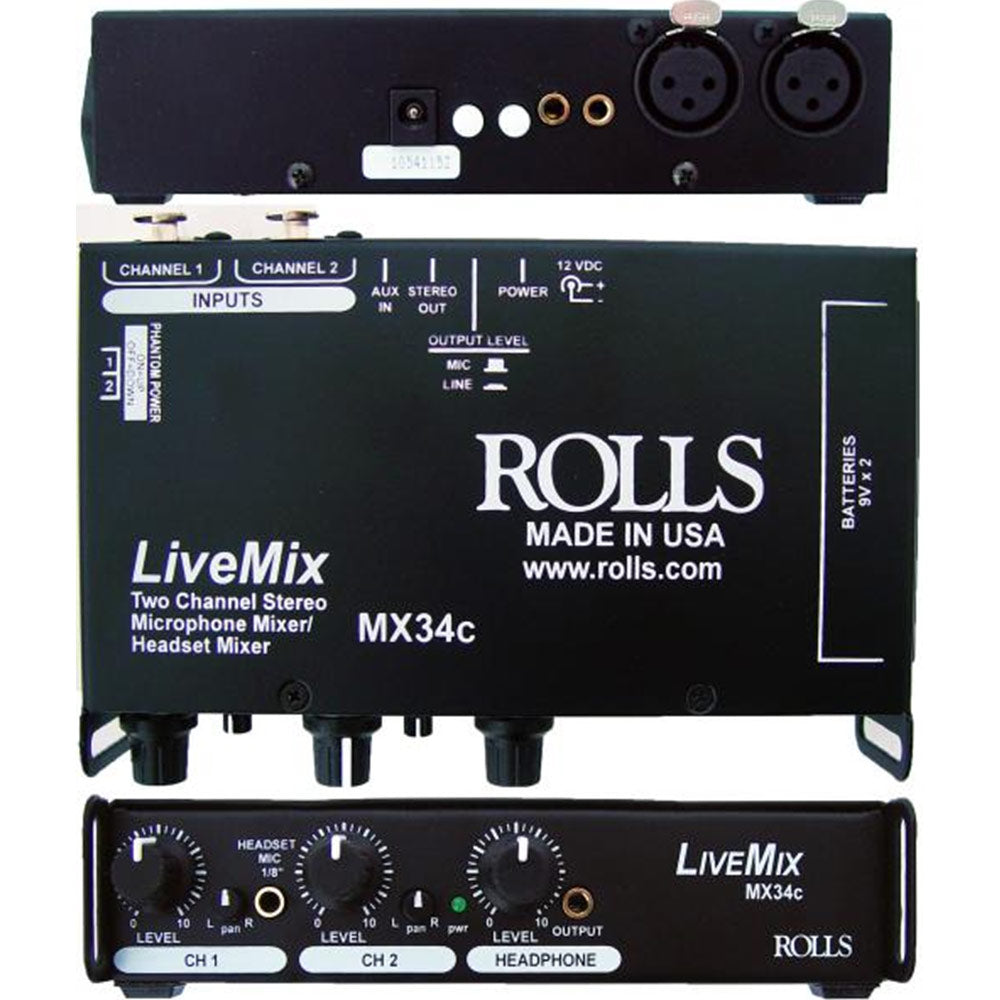

The MX34c LiveMix - two channel microphone mixer. Although having many uses, this little mixer was originally designed with the video camera operator in mind. The MX34c is a two channel microphone mixer with balanced XLR inputs, phantom power, and stereo 1/8\" (3.5mm) outputs. The 3.5mm output may be switched either mic or line level. It has a stereo 1/8\" (3.5mm) Auxiliary input for connection to any stereo line-level source such as an AM/FM tuner, CD player etc. And a 3.5mm headset mic in on the front for narration, etc.. Each channel has a Level and Pan control, and a separate headphone circuit allows for monitoring all signals without effecting the main output signal. Holes for a shoulder strap, easy-access controls, and smart Input/Output jack placement make the MX34c ideal for the live recording enthusiast. The 9 volt alkaline batteries ensure adequate signal strength as well as phantom power for your favorite condenser microphone.
Features:
- 9V Battery or AC adapter operation
- 2 Mic Inputs
- +18VDC Phantom Power
- 3.5mm Stereo Output
- 3.5mm Stereo Headphone Output
- Pan control on each channel
- Auxiliary 3.5mm Input
- 3.5mm mic in jack for headset or other mic
- Mic/Line Switch for each XLR Input
Input Impedance | Êmic - 600 Ohms or greater XLRaux - 47K stereo 3.5mm |
Output Impedance | 50 Ohms |
THD + Noise | .02% |
S/N Ratio | 110 dB |
Frequency Response | 20 Hz - 30 kHz (+0 / -1 dB) |
Max Output Level | + 14 dB |
Max Input Level | +20 dB |
Max Gain | +70 dB |
Batteries | 2 X 9V Alkaline |
Current Draw | 30 mA |
Phantom Power | +18 VDC |
Input Connectors | 2 Female XLR, 1/8Ó (3.5mm) |
DC Power Jack | (5.5 X 2.1 mm tip negative) |
Output connectors | 3.5mm stereo main out3.5mm Headphone |
Size | 6.3Ów x 3.7Ód x 1.4Ó h |
Weight | 1 lbs |
The MX34c LiveMix - two channel microphone mixer. Although having many uses, this little mixer was originally designed with the video camera operator in mind. The MX34c is a two channel microphone mixer with balanced XLR inputs, phantom power, and stereo 1/8\" (3.5mm) outputs. The 3.5mm output may be switched either mic or line level. It has a stereo 1/8\" (3.5mm) Auxiliary input for connection to any stereo line-level source such as an AM/FM tuner, CD player etc. And a 3.5mm headset mic in on the front for narration, etc.. Each channel has a Level and Pan control, and a separate headphone circuit allows for monitoring all signals without effecting the main output signal. Holes for a shoulder strap, easy-access controls, and smart Input/Output jack placement make the MX34c ideal for the live recording enthusiast. The 9 volt alkaline batteries ensure adequate signal strength as well as phantom power for your favorite condenser microphone.
Features:
- 9V Battery or AC adapter operation
- 2 Mic Inputs
- +18VDC Phantom Power
- 3.5mm Stereo Output
- 3.5mm Stereo Headphone Output
- Pan control on each channel
- Auxiliary 3.5mm Input
- 3.5mm mic in jack for headset or other mic
- Mic/Line Switch for each XLR Input
Input Impedance | Êmic - 600 Ohms or greater XLRaux - 47K stereo 3.5mm |
Output Impedance | 50 Ohms |
THD + Noise | .02% |
S/N Ratio | 110 dB |
Frequency Response | 20 Hz - 30 kHz (+0 / -1 dB) |
Max Output Level | + 14 dB |
Max Input Level | +20 dB |
Max Gain | +70 dB |
Batteries | 2 X 9V Alkaline |
Current Draw | 30 mA |
Phantom Power | +18 VDC |
Input Connectors | 2 Female XLR, 1/8Ó (3.5mm) |
DC Power Jack | (5.5 X 2.1 mm tip negative) |
Output connectors | 3.5mm stereo main out3.5mm Headphone |
Size | 6.3Ów x 3.7Ód x 1.4Ó h |
Weight | 1 lbs |
