Description

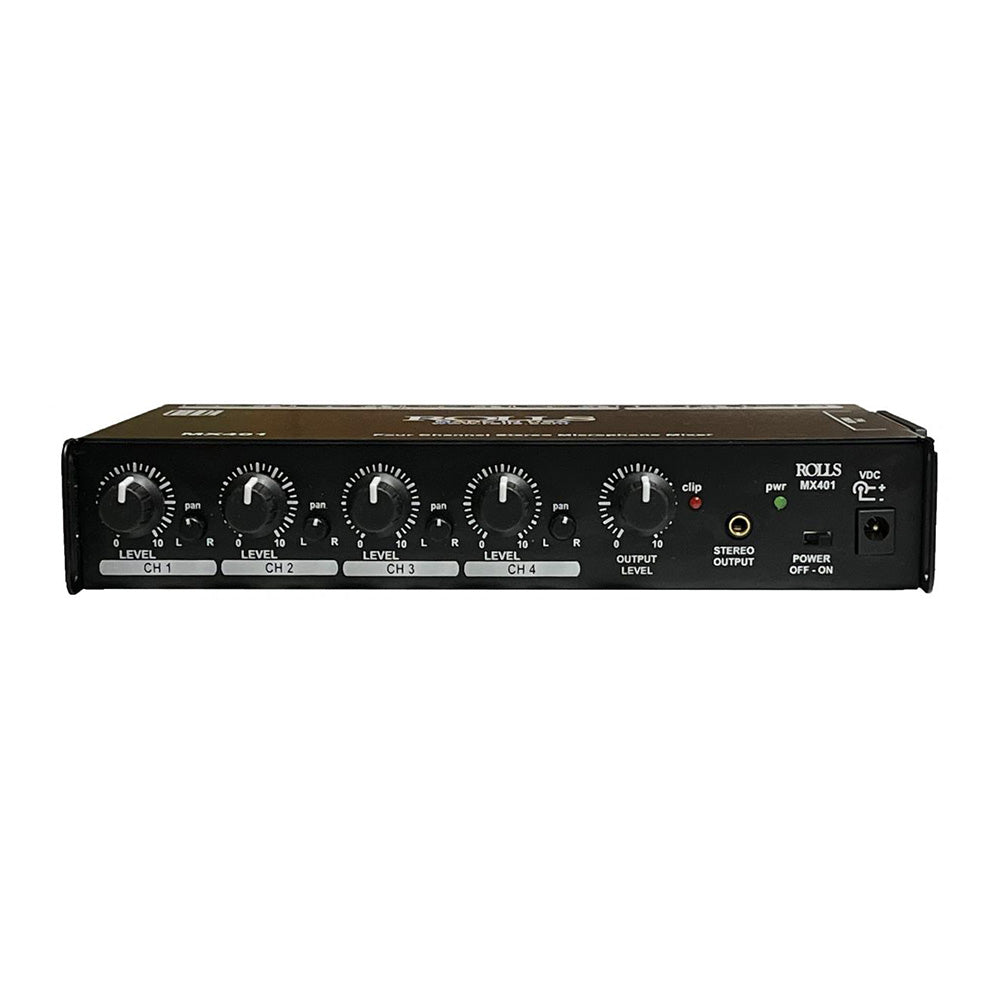

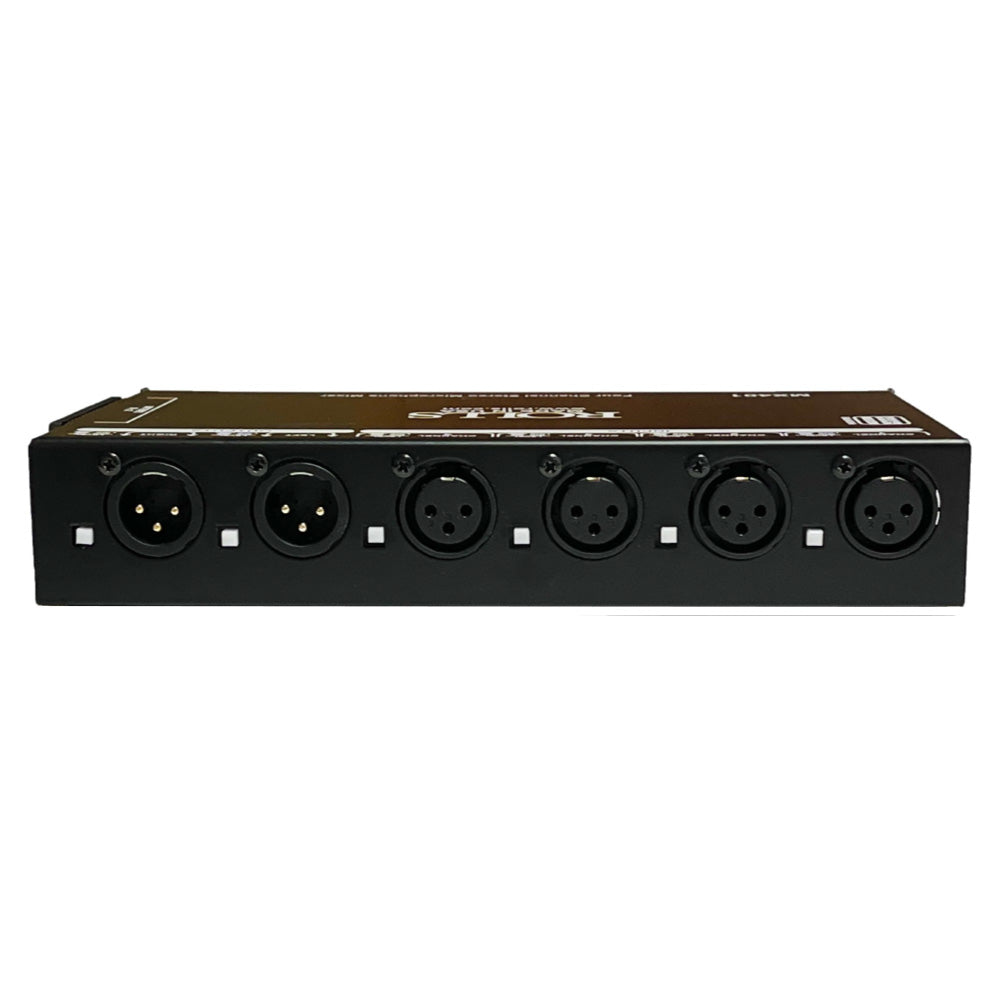

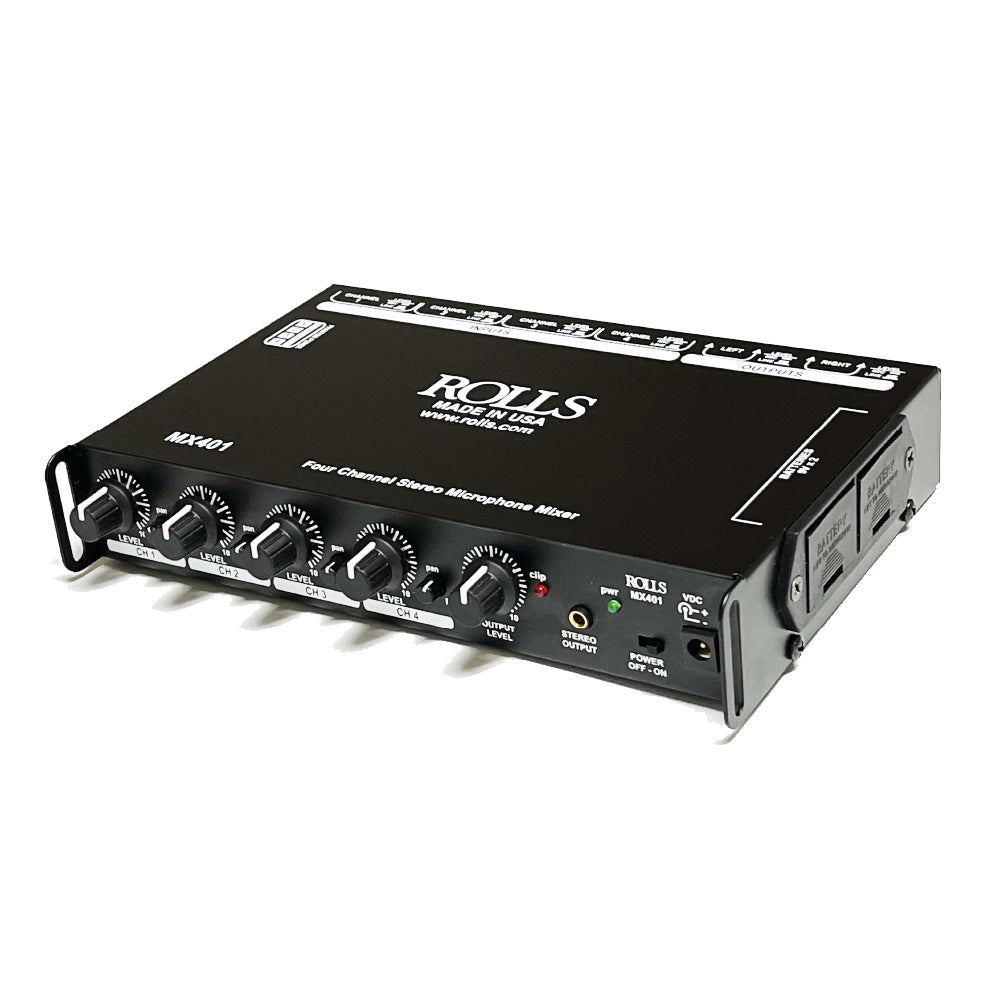

The MX401 mixes 4 microphones or line level XLR′s into two balanced Stereo outputs. The four XLR inputs, each have individually switchable phantom power, MIC or LINE level switch, Level control, and a Pan control. Two independant balanced, XLR outputs both with selectable MIC or LINE level. 1/8" inch Stereo Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries or the included 15VDC power supply.
Features:
- Four balanced XLR Inputs
- Two balanced XLR Outputs
- Switchable Output Level ( Line level, or mic)
- Switchable Phantom Power for each input
- Level controls for each channel
- 3.5mm Stereo Output
- Rolls PS27s 15 VDC external power supply included
- Powered by two 9 volt batteries or the included power supply
Input Impedance | 600 Ohms MIC - 10k Ohms LINE |
Output Impedance | 600 Ohms MIC - 10k Ohms LINE |
THD Noise | .02% |
S/N Ratio | 96 dB |
THD Noise | .02% |
Self Noise | -65 dB maximum, -90 dB typical |
Frequency Response | 20 Hz - 20kHz ( 0 / -3 dB) |
Max Output Level | 14 dB |
Max Gain | 55 dB |
Current Draw | 30 mA with no Phantom Power or Signal |
Phantom Power | 15 VDC |
Power | 12-15VDC / < 300-500 mA |
Size | 8.5Ów x 5.75Ód x 1.5Ó h |
Weight | 2.05 lbs |
The MX401 mixes 4 microphones or line level XLR′s into two balanced Stereo outputs. The four XLR inputs, each have individually switchable phantom power, MIC or LINE level switch, Level control, and a Pan control. Two independant balanced, XLR outputs both with selectable MIC or LINE level. 1/8" inch Stereo Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries or the included 15VDC power supply.
Features:
- Four balanced XLR Inputs
- Two balanced XLR Outputs
- Switchable Output Level ( Line level, or mic)
- Switchable Phantom Power for each input
- Level controls for each channel
- 3.5mm Stereo Output
- Rolls PS27s 15 VDC external power supply included
- Powered by two 9 volt batteries or the included power supply
Input Impedance | 600 Ohms MIC - 10k Ohms LINE |
Output Impedance | 600 Ohms MIC - 10k Ohms LINE |
THD Noise | .02% |
S/N Ratio | 96 dB |
THD Noise | .02% |
Self Noise | -65 dB maximum, -90 dB typical |
Frequency Response | 20 Hz - 20kHz ( 0 / -3 dB) |
Max Output Level | 14 dB |
Max Gain | 55 dB |
Current Draw | 30 mA with no Phantom Power or Signal |
Phantom Power | 15 VDC |
Power | 12-15VDC / < 300-500 mA |
Size | 8.5Ów x 5.75Ód x 1.5Ó h |
Weight | 2.05 lbs |
