Description

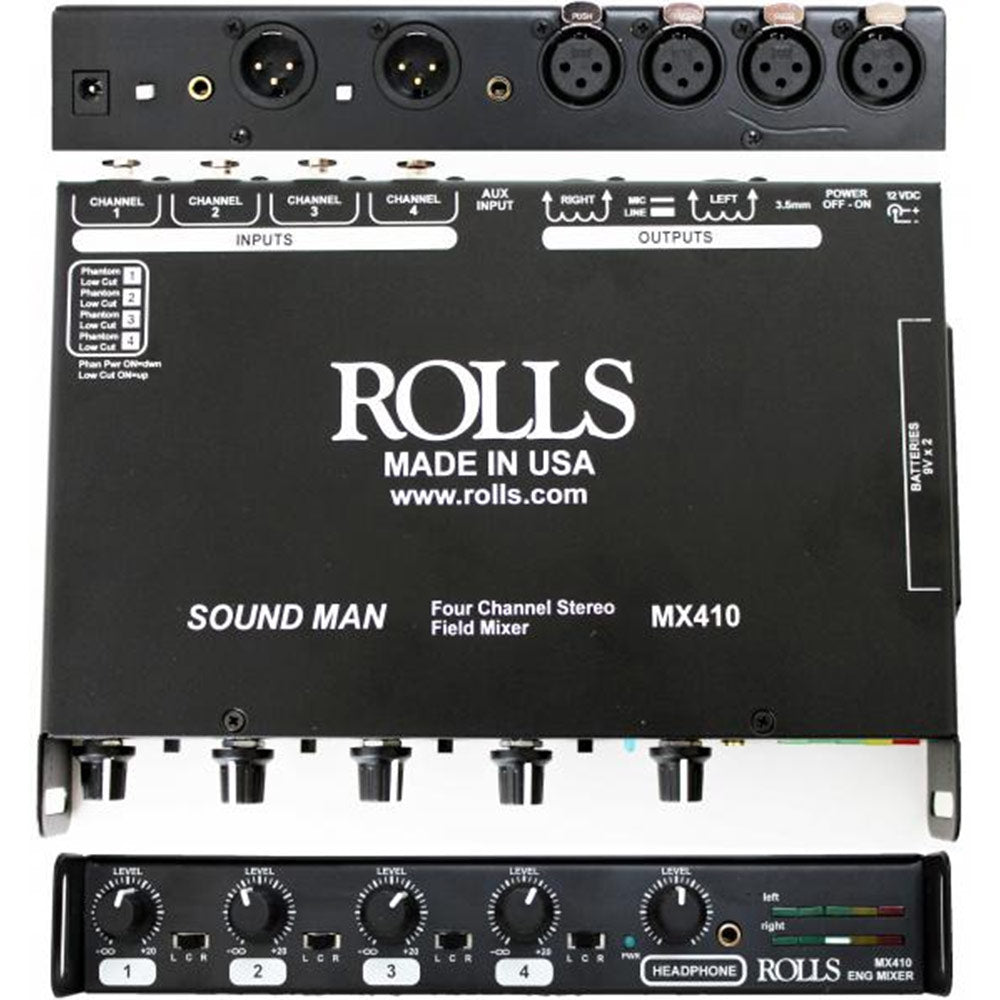

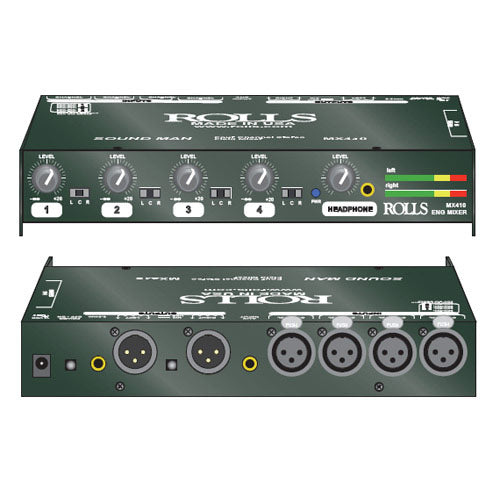

The MX410 is a four channel, microphone mixer with balanced XLR inputs and outputs. The unit is ideal for the broadcast and video markets. It has the same features of other ENG / portable mixers without the extremely high price.
Applications include: * DV Field Production. * Electronic News Gathering. * Location Recording (Dialogue and Music). * Digital Recording. * Broadcast Remotes. * Desktop Mixing for Video Post Production. http://www.youtube.com/watch?v=-sWkxCddVpg
Features:
- Four balanced XLR Inputs
- Two transformer-balanced XLR Outputs
- Switchable Output Level ( Line level, or mic)
- Switchable Phantom Power for each input.
- Level controls for each channel
- 3.5mm Headphone Output and Level control
- Canvas case with shoulder strap included
- Rolls PS27 external power supply included
- Powered by two 9 volt batteries or the included power supply
- http://www.youtube.com/watch?v=-sWkxCddVpg
Input Impedance | Mic: 600 Ohms XLR balanced |
Output Attenuator | -30 dB |
Self Noise | -65 dB maximum-90 dB typical |
Max Gain | +55 db |
S/N Ratio | 115 dB |
THD | .05% |
Frequency Response | 20 Hz - 20 kHz | +0, -3 dB |
Low Cut | 100 Hz |
Max Input | -20 dBV |
Current Draw | 30 mA with no Phantom Power or Signal. |
Phantom Power | +18 VDC |
Typical Battery Life | 18 Hrs. (2 mics, phan on, with headphone) |
Connectors | 4 ea. Female XLR, 2 ea. Male XLR,3 ea. 1/8Ó (3.5mm), 1 Center Negative power jack |
Power Adapter | 12VDC / 200 mA |
Size | 9Ó W x 6.75Ó D x 1.5Ó H |
Weight | 2.45 lbs |
The MX410 is a four channel, microphone mixer with balanced XLR inputs and outputs. The unit is ideal for the broadcast and video markets. It has the same features of other ENG / portable mixers without the extremely high price.
Applications include: * DV Field Production. * Electronic News Gathering. * Location Recording (Dialogue and Music). * Digital Recording. * Broadcast Remotes. * Desktop Mixing for Video Post Production. http://www.youtube.com/watch?v=-sWkxCddVpg
Features:
- Four balanced XLR Inputs
- Two transformer-balanced XLR Outputs
- Switchable Output Level ( Line level, or mic)
- Switchable Phantom Power for each input.
- Level controls for each channel
- 3.5mm Headphone Output and Level control
- Canvas case with shoulder strap included
- Rolls PS27 external power supply included
- Powered by two 9 volt batteries or the included power supply
- http://www.youtube.com/watch?v=-sWkxCddVpg
Input Impedance | Mic: 600 Ohms XLR balanced |
Output Attenuator | -30 dB |
Self Noise | -65 dB maximum-90 dB typical |
Max Gain | +55 db |
S/N Ratio | 115 dB |
THD | .05% |
Frequency Response | 20 Hz - 20 kHz | +0, -3 dB |
Low Cut | 100 Hz |
Max Input | -20 dBV |
Current Draw | 30 mA with no Phantom Power or Signal. |
Phantom Power | +18 VDC |
Typical Battery Life | 18 Hrs. (2 mics, phan on, with headphone) |
Connectors | 4 ea. Female XLR, 2 ea. Male XLR,3 ea. 1/8Ó (3.5mm), 1 Center Negative power jack |
Power Adapter | 12VDC / 200 mA |
Size | 9Ó W x 6.75Ó D x 1.5Ó H |
Weight | 2.45 lbs |
