Rolls MX41B Stereo 4-Channel Passive Mixer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

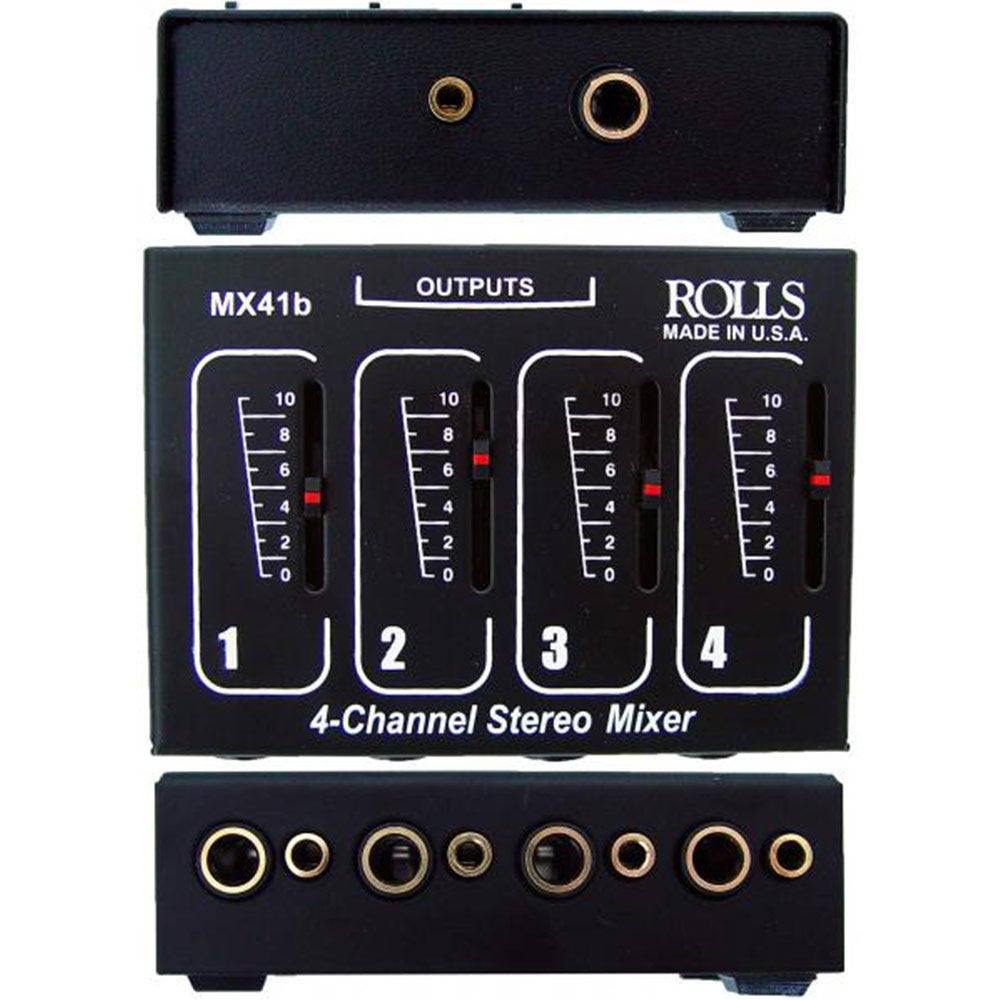

The MX41b is a stereo four channel passive mixer for expanding a console mixer, mixing instruments, CD players, cassette players, computers etc. It requires no batteries or other power source. The unit may also be used as a 1 In 4 Out stereo splitter box when all controls are set to maximum.
Features:
- Four Stereo 1/4" and 1/8" Inputs.
- Stereo 1/4" and 1/8" Outputs.
- 100K Ohm Potentiometers.
OUTPUTS: Stereo 1/4" TRS, and stereo 1/8" TRS jacks for connection to a mixer input or other input device.
INPUTS 1 - 4: 4 stereo 1/4" TRS, and 4 stereo 1/8" TRS jacks for connection to line, instrument, or consumer level devices.
VOLUME 1 - 4: Control the level of the signals coming from Inputs 1 - 4.
| Input Impedance | 10K to 47K Ω |
| Output Impedance | 2.5K to 10K Ω |
| Gain | -12 dB MAX |
| Dimensions | 3.6" x 2.7" x 1.42" (W x H x D) |
| Weight | 1 lb |
The MX41b is a stereo four channel passive mixer for expanding a console mixer, mixing instruments, CD players, cassette players, computers etc. It requires no batteries or other power source. The unit may also be used as a 1 In 4 Out stereo splitter box when all controls are set to maximum.
Features:
- Four Stereo 1/4" and 1/8" Inputs.
- Stereo 1/4" and 1/8" Outputs.
- 100K Ohm Potentiometers.
OUTPUTS: Stereo 1/4" TRS, and stereo 1/8" TRS jacks for connection to a mixer input or other input device.
INPUTS 1 - 4: 4 stereo 1/4" TRS, and 4 stereo 1/8" TRS jacks for connection to line, instrument, or consumer level devices.
VOLUME 1 - 4: Control the level of the signals coming from Inputs 1 - 4.
| Input Impedance | 10K to 47K Ω |
| Output Impedance | 2.5K to 10K Ω |
| Gain | -12 dB MAX |
| Dimensions | 3.6" x 2.7" x 1.42" (W x H x D) |
| Weight | 1 lb |
