Rolls MX51s 1 Mini-Mix 2 - 4-Channel Mixer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

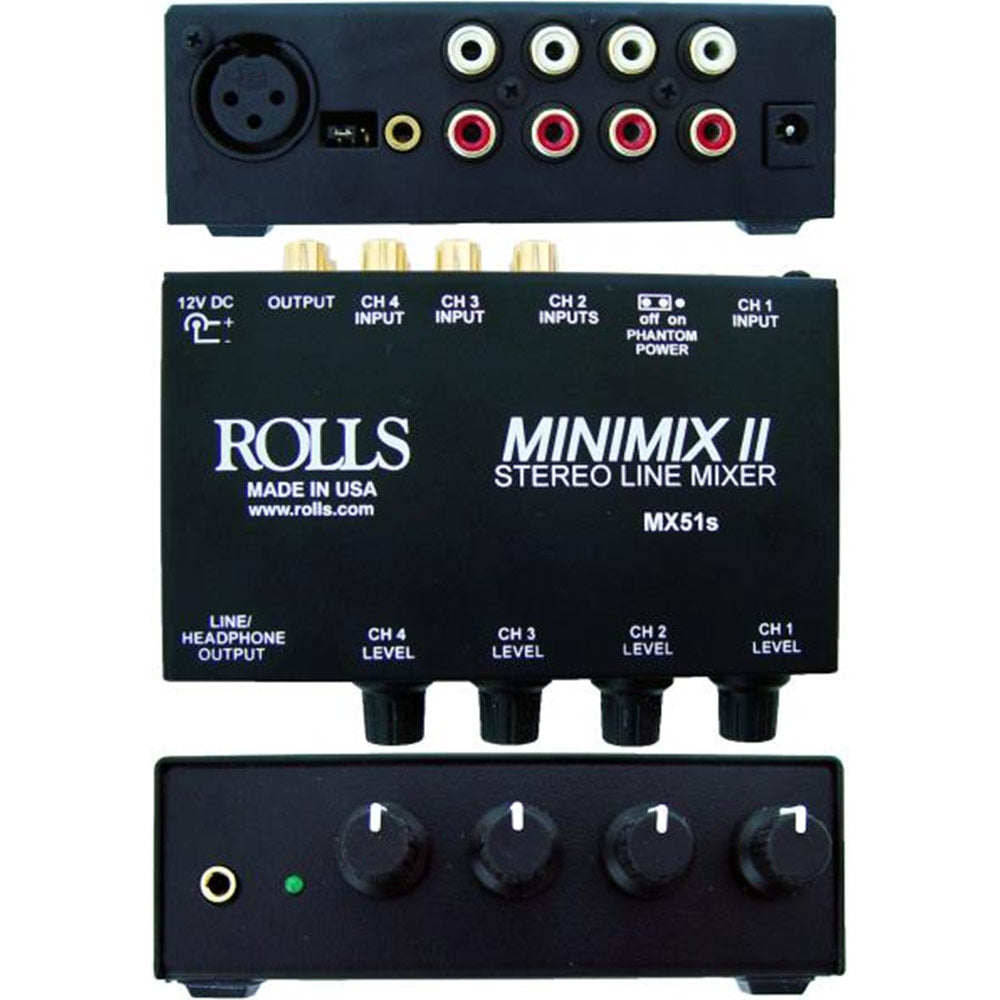

The MX51s Mini Mix 2 is small four-channel mixer with individual volume controls, and a headphone / line output. The unit has one XLR input along with an 1/8" input and 3 sets of stereo RCA inputs. It has enough gain and output level to connect to a power amplifier, with either RCA or 1/8" jacks. The MX51s is powered by an included ROLLS PS27 12 VDC adapter
Features:
- For mixing a microphone XLR input with up to three
- RCA input signals
- Four channels total
- Line / Headphone output level
- ROLLS PS27 AC adapter included
- Stereo RCA Line-Level Output
| System Specifications | |
| Input Impedance | 10K Ohms unbalanced each jack |
| CH 1 Gain | 32 dB XLR jack (highest gain) |
| Phantom Power | for CH 1 microphone XLR |
| Ch2 Gain | 26 dB 1/8" and RCA |
| Ch 3 and 4 Gain | 26 dB each RCA |
| Output | 1/8" stereo and stereo RCA |
| S/N Ratio | >90 dB |
| THD | <.008% |
| IMD(SMPTE) | <.008% |
| Power | ROLLS PS27 12 VDC adapter |
| Size | 3" x 5" x 1.25" (8 x 13 x 3.2 cm) |
| Weight | 1 lbs. (.45 Kg) |
The MX51s Mini Mix 2 is small four-channel mixer with individual volume controls, and a headphone / line output. The unit has one XLR input along with an 1/8" input and 3 sets of stereo RCA inputs. It has enough gain and output level to connect to a power amplifier, with either RCA or 1/8" jacks. The MX51s is powered by an included ROLLS PS27 12 VDC adapter
Features:
- For mixing a microphone XLR input with up to three
- RCA input signals
- Four channels total
- Line / Headphone output level
- ROLLS PS27 AC adapter included
- Stereo RCA Line-Level Output
| System Specifications | |
| Input Impedance | 10K Ohms unbalanced each jack |
| CH 1 Gain | 32 dB XLR jack (highest gain) |
| Phantom Power | for CH 1 microphone XLR |
| Ch2 Gain | 26 dB 1/8" and RCA |
| Ch 3 and 4 Gain | 26 dB each RCA |
| Output | 1/8" stereo and stereo RCA |
| S/N Ratio | >90 dB |
| THD | <.008% |
| IMD(SMPTE) | <.008% |
| Power | ROLLS PS27 12 VDC adapter |
| Size | 3" x 5" x 1.25" (8 x 13 x 3.2 cm) |
| Weight | 1 lbs. (.45 Kg) |
