Rolls MX54 3-Channel Portable Stereo Microphone Mixer w/ Headphone Out
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

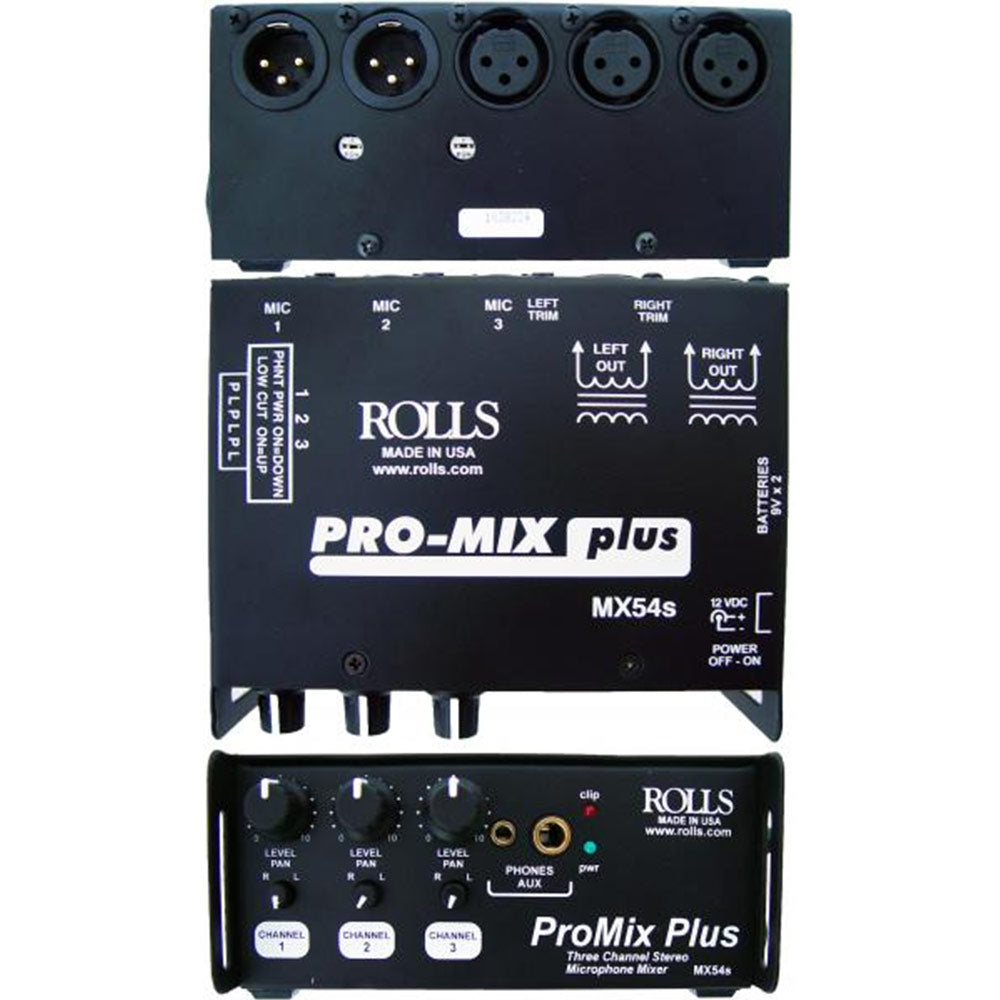

The MX54s Pro-Mix Plus mixes three microphones into two transformer balanced outputs. It has three XLR inputs, each with individually switchable phantom power, and Low Cut switches, a Level control, and a Pan control. As mentioned, it has two transformer balanced, XLR outputs. A 1/4 inch Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries.
Features:- Mixes three microphones to stereo XLR outputs
- Output level controls for mic or line-level output
- Transformer isolated outputs
- Phantom Power and Low-Cut switches for each Mic input
- Battery and AC powered
- Handy shoulder strap mounts
| Input Impedance | 600 Ohms |
| Output Impedance | XLR 600 Ohms |
| THD + Noise | .02% |
| S/N Ratio | 84 dB |
| Frequency Response | 25 Hz - 16 kHz (+0 / -3 dB) |
| Max Output Level | + 14 dB |
| Max Input Level | -14 dB |
| Max Gain | +60 dB |
| Low Cut | -3 dB @ 100 Hz |
| Current Draw | 20 mA |
| Phantom Power | +18 VDC |
| Connectors | |
| 3 | Female XLR |
| 2 | Male XLR |
| 1 | 1/4 TRS, DC Power Jack |
| Size | 5.3 x 3.7 x 2 |
| Weight | 1 lbs |
The MX54s Pro-Mix Plus mixes three microphones into two transformer balanced outputs. It has three XLR inputs, each with individually switchable phantom power, and Low Cut switches, a Level control, and a Pan control. As mentioned, it has two transformer balanced, XLR outputs. A 1/4 inch Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries.
Features:- Mixes three microphones to stereo XLR outputs
- Output level controls for mic or line-level output
- Transformer isolated outputs
- Phantom Power and Low-Cut switches for each Mic input
- Battery and AC powered
- Handy shoulder strap mounts
| Input Impedance | 600 Ohms |
| Output Impedance | XLR 600 Ohms |
| THD + Noise | .02% |
| S/N Ratio | 84 dB |
| Frequency Response | 25 Hz - 16 kHz (+0 / -3 dB) |
| Max Output Level | + 14 dB |
| Max Input Level | -14 dB |
| Max Gain | +60 dB |
| Low Cut | -3 dB @ 100 Hz |
| Current Draw | 20 mA |
| Phantom Power | +18 VDC |
| Connectors | |
| 3 | Female XLR |
| 2 | Male XLR |
| 1 | 1/4 TRS, DC Power Jack |
| Size | 5.3 x 3.7 x 2 |
| Weight | 1 lbs |
