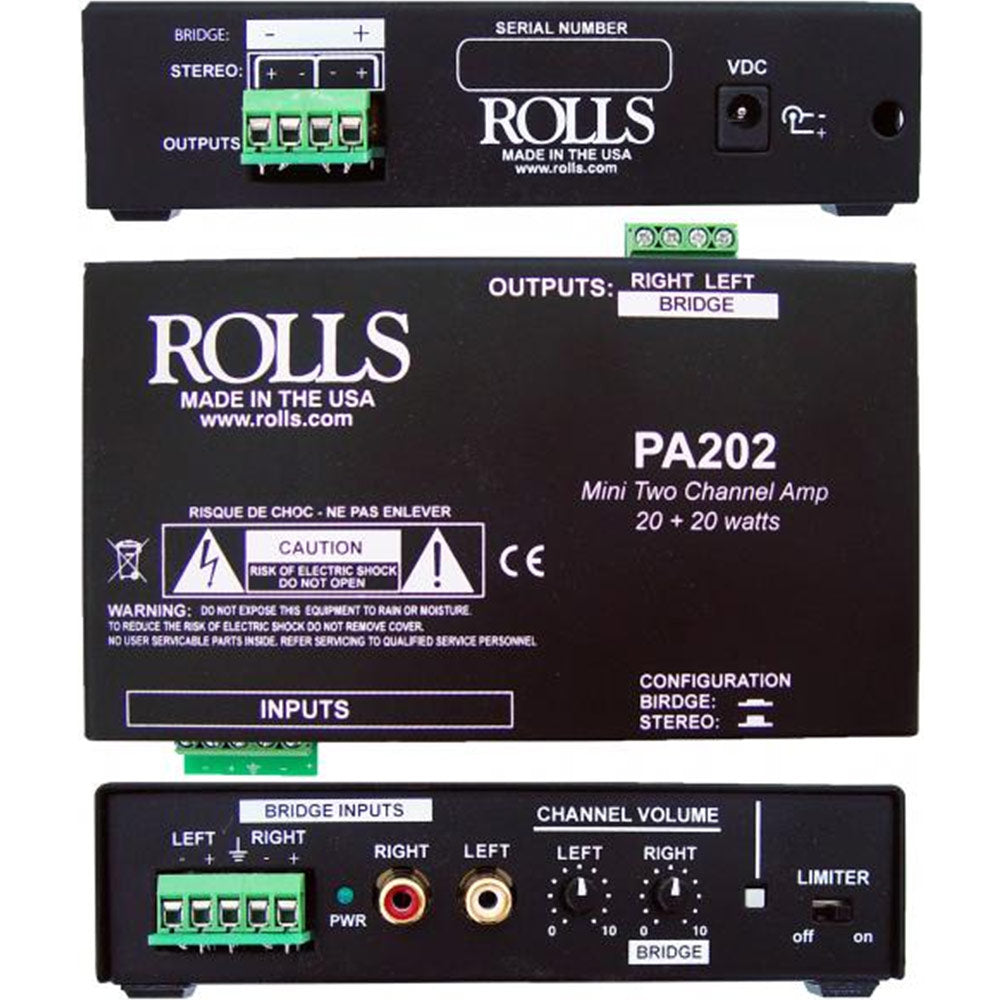

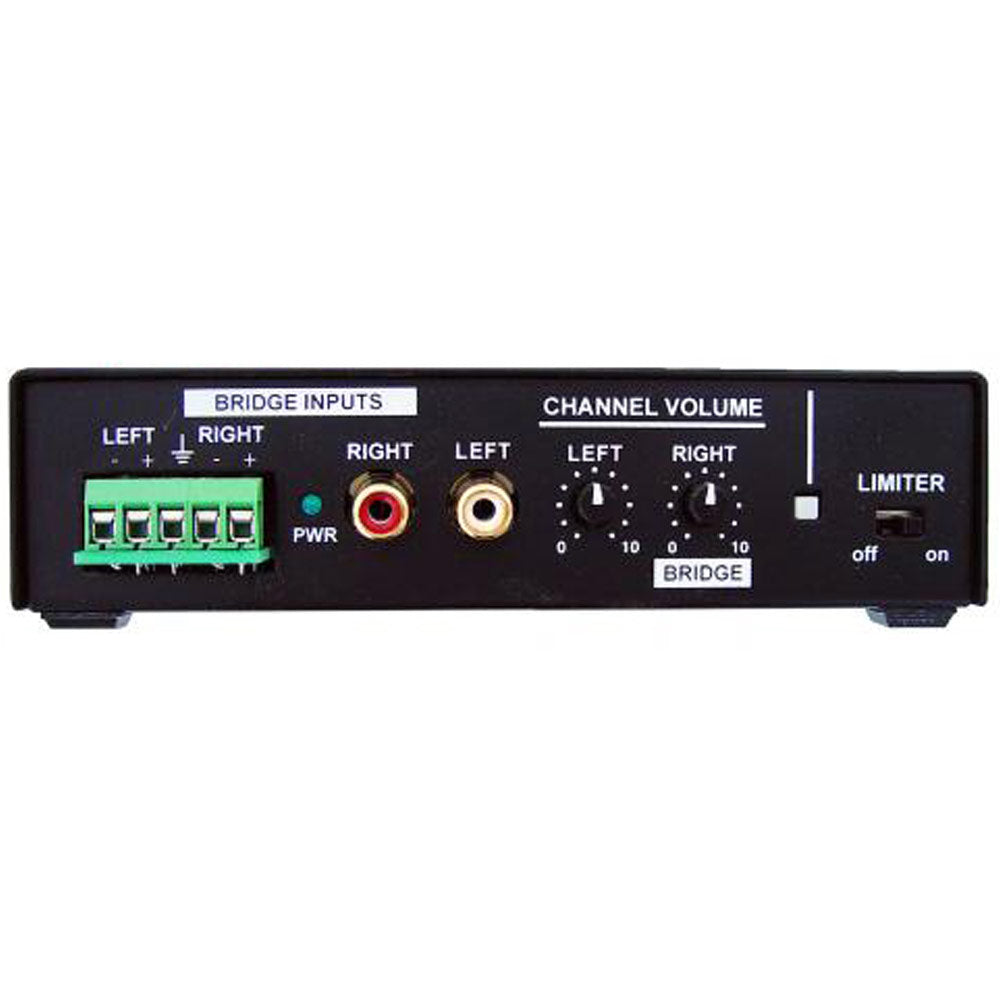

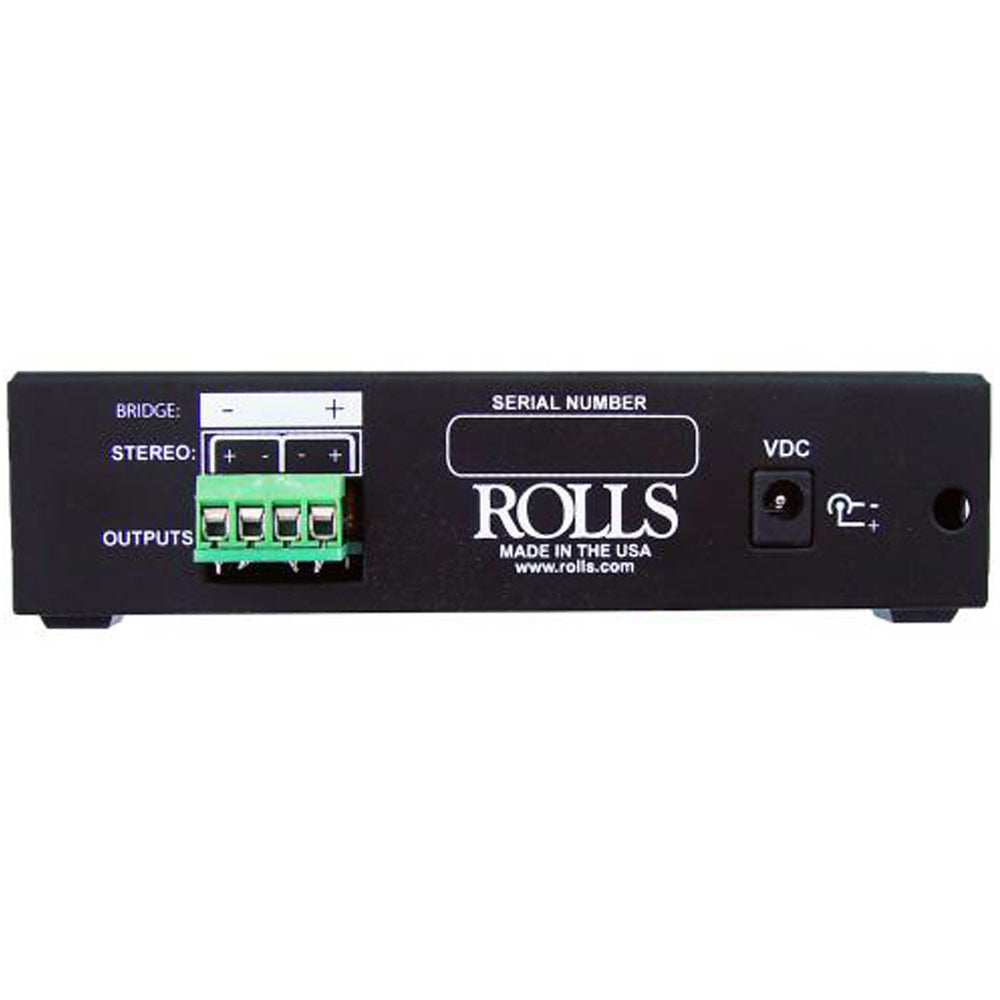

Rolls PA202 Stereo 20W/Ch Class D Mini Amplifier

  • Dale #:

    ROLL-PA202
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Small general purpose audio power amplifier for projector, ceiling mount, or rack monitoring. Great for boardroom and classroom applications. Ideal for small space installations where a larger amplifier won't fit. Works with 4 or 8 ohm loads. Has bridge switch for higher power mono and a limiter.... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Small general purpose audio power amplifier for projector, ceiling mount, or rack monitoring. Great for boardroom and classroom applications. Ideal for small space installations where a larger amplifier won't fit. Works with 4 or 8 ohm loads. Has bridge switch for higher power mono and a limiter. Included 24 VDC inline IEC power supply.

Features:

  • Small size with mounting tabs
  • Balanced and Unbalanced Inputs
  • Pheonix type input and output
  • Low cost, helps win your bid
  • Optical Limiter for maximum clean power output
  • Bridge switch for 40W mono operation
  • Included 24 VDC inline IEC power supply.

The limiter is a function that will not allow very loud signals to passthrough the PA202 by limiting their volume temporarily to a normal level,preventing damage to the speakers or the unit its self. It is important to
note that the limiter utilizes a circuit that decreases the amount of very loud signals it does not cut out all potentially loud signals. Proper installation and setup is crucial. If you are experiencing distortion turning the Limiter on may help but it is not intended for total dynamics control. Its primary function is to help prevent one time very loud signals like dropping a microphone or loud program material that is temporary.

More +

Product Specs

Line Input Impedance47K Ohms
Power Output20 Watts X 2 (8 Ohms)
Voltage Gain32 dB
Maximum Supply Voltage30 VDC
THD.05% typical
EIN3 mV
Effi ciency85%
Input Sensitivity28 mV
Bandwidth20Hz - 25 kHz
Size6" x 3.5" x 1.5"
Weight1 lb
