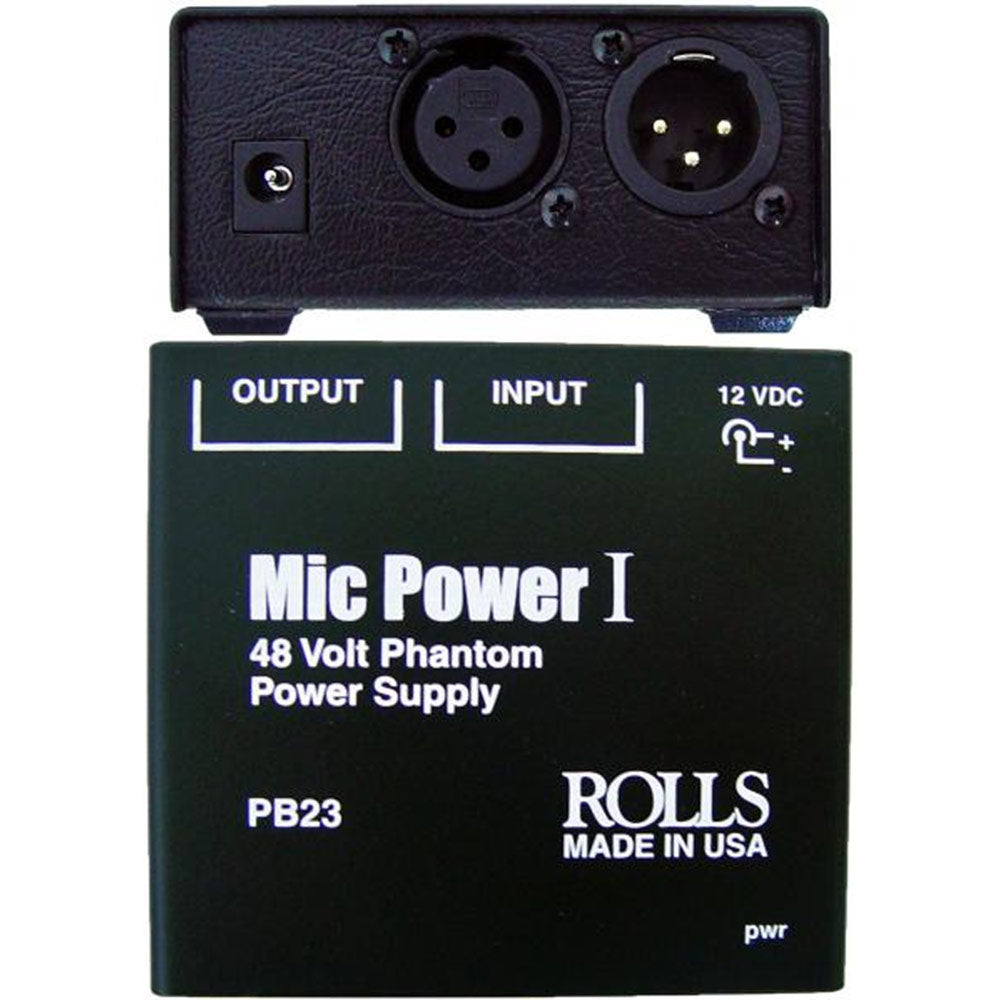

Rolls PB23 Single Channel Phantom Power Supply
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Rolls PB23 is an inexpensive single-channel miniature phantom power supply, switchable between 12 and 48 Volts, featuring a DC power loop enabling multiple unit operation off of a single power supply.
Features:
- Single-channel switchable 12/48 Volt phantom power supply with all-metal case
- Power on LED
- Noiseless 100 kHz switching power supply
- Output pull down resistors for universal mixer compatibility
- Dual 2.5mm DC jacks enable multiple units to operate off of one AC adapter
| Input Connectors | 1 x 3-pin XLR Female |
| Output Connectors | 1 x 3-pin XLR Male |
| Adapter | Yes, 12 VDC |
| Battery | No |
| Power | 12 VDC Adapter |
| Dimensions | 3 x 2.5 x 1.25 (76.2 x 63.5 x 31.75mm) |
| Weight | 1 lb (450 g) |
