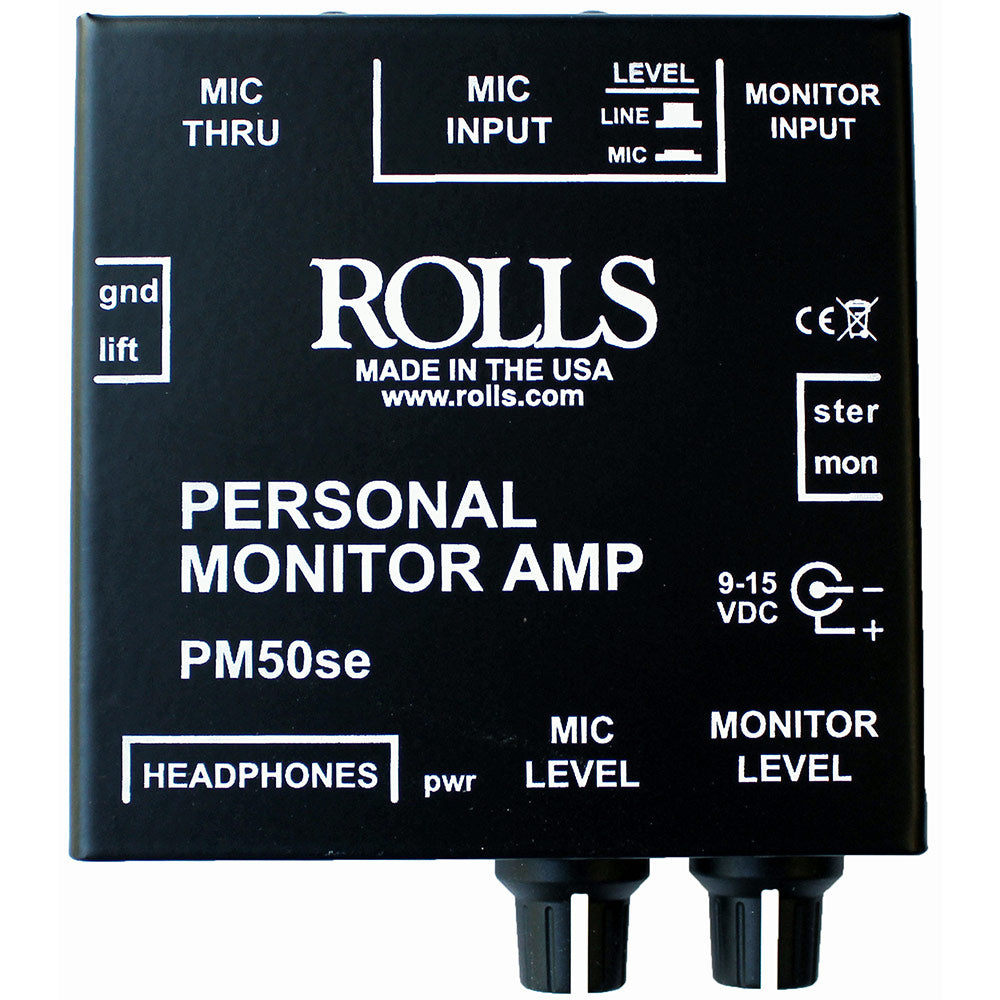

ROLLS PM50se Personal Monitor Amp
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The PM50se mixes a stereo or mono line-level Monitor signal with a microphone or line level XLR signal to a set of headphones. It has a monitor level control, mic/XLR level control, mic/line pass through XLR jack, two headphone output jacks, and a stereo or mono TRS or TS 1/4" monitor input jack. Possible users may be drummers who need to hear a click track, choir singers who need to hear themselves, podcast, recording or many other applications. The power adapter is included.
| Inputs | -20 dB max XLR 1K balanced, 20 dB monitor |
| Outputs | 1/4", and 1/8" (3.5mm) 8 ohm or greater |
| Gain | 20 dB 1/4", 50 dB XLR |
| Frequency Response | 3Hz to 100kHz |
| S/N Ratio | 90 dB |
| Size | 3" X 2.5" X 1.25" |
| Weight | 1 lb (.45 kg) |
| Other Specs | Current drain 60ma nominal no load 15vdc Mic or Line Level XLR input XLR Mic or Line Pass Thru Ground Lift on XLR Thru Mono or Stereo 1/4" Monitor Input 1/4" and 1/8" Phone Outputs |
The PM50se mixes a stereo or mono line-level Monitor signal with a microphone or line level XLR signal to a set of headphones. It has a monitor level control, mic/XLR level control, mic/line pass through XLR jack, two headphone output jacks, and a stereo or mono TRS or TS 1/4" monitor input jack. Possible users may be drummers who need to hear a click track, choir singers who need to hear themselves, podcast, recording or many other applications. The power adapter is included.
| Inputs | -20 dB max XLR 1K balanced, 20 dB monitor |
| Outputs | 1/4", and 1/8" (3.5mm) 8 ohm or greater |
| Gain | 20 dB 1/4", 50 dB XLR |
| Frequency Response | 3Hz to 100kHz |
| S/N Ratio | 90 dB |
| Size | 3" X 2.5" X 1.25" |
| Weight | 1 lb (.45 kg) |
| Other Specs | Current drain 60ma nominal no load 15vdc Mic or Line Level XLR input XLR Mic or Line Pass Thru Ground Lift on XLR Thru Mono or Stereo 1/4" Monitor Input 1/4" and 1/8" Phone Outputs |
