Rolls PM59 - Dual Personal Monitor Amp
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

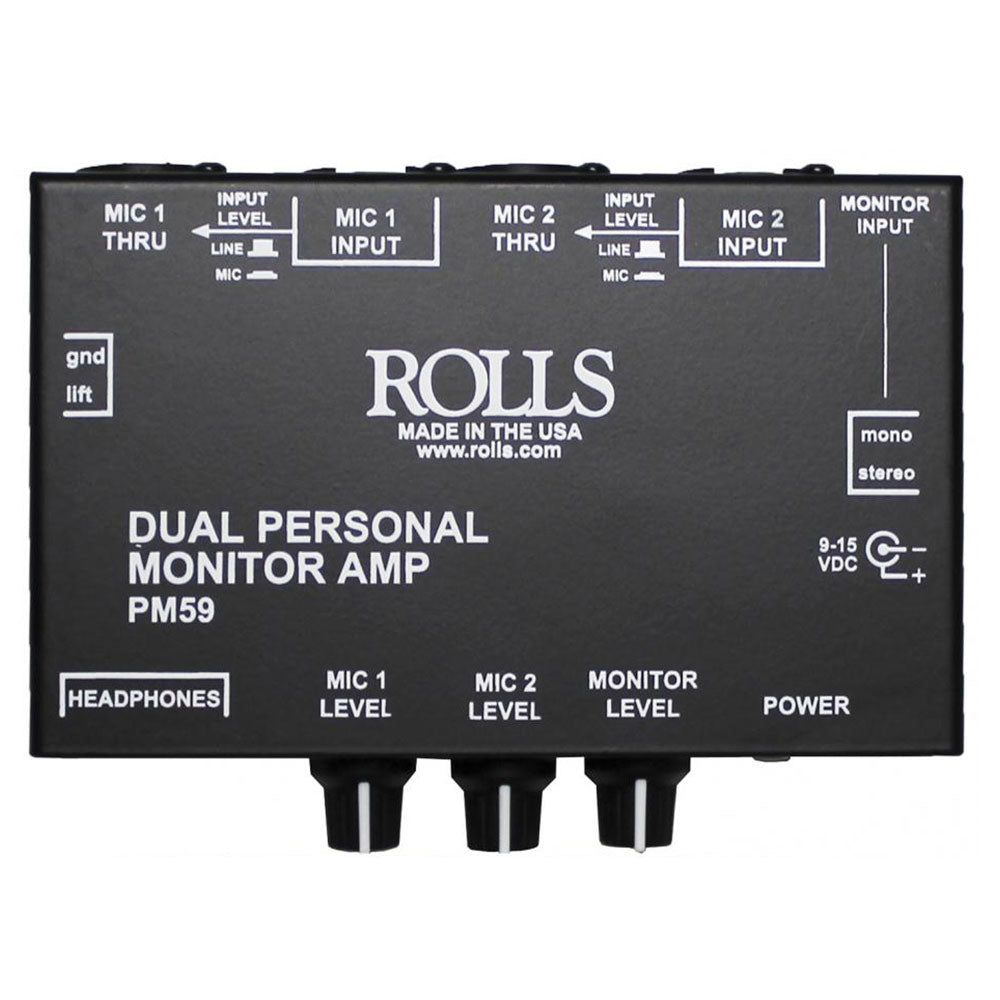

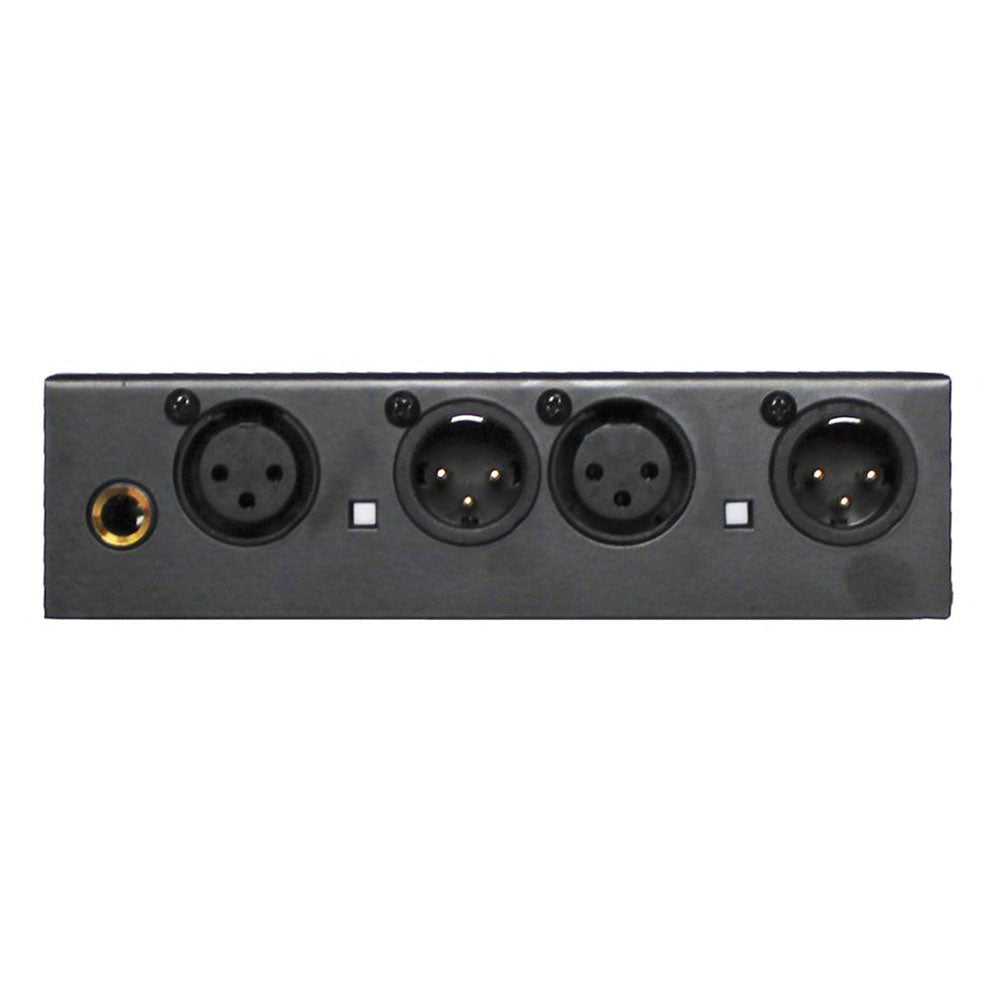

The PM59 mixes one or two microphones with a line-level Monitor signal to a set of headphones. The microphone inputs can be configured for standard mic level or line level XLR. The PM59 has a monitor level control, mic/XLR level control for each channel, mic/line pass through output XLR jacks for both channels, two headphone output jacks, and a stereo or mono TRS or TS 1/4" monitor input jack. The PM59 is designed for recording, podcast, keyboard players, drummers who need to hear a click track, choir singers who need to hear themselves, and many other applications.
What's in the box?
- 1 - Made in USA PM59
- 1 - 15V power supply PN PS27s
- 1 - This owners manual
- 1 - Love for audio and decades of experience with building and design
| Gain | 10 dB 1/4" 48 dB XLR "MIC" 20 dB XLR "LINE" |
| Input Impedance | 600 Ohms XLR 22K 1/4" |
| Output Impedance | 10 Ohms |
| Frequency Response | 3Hz to 100kHz |
| THD | .05% @ 1KHz |
| S/N Ratio | 90 dB |
| PWR | 9-15 VDC |
| Indicator | 1 Power LED |
The PM59 mixes one or two microphones with a line-level Monitor signal to a set of headphones. The microphone inputs can be configured for standard mic level or line level XLR. The PM59 has a monitor level control, mic/XLR level control for each channel, mic/line pass through output XLR jacks for both channels, two headphone output jacks, and a stereo or mono TRS or TS 1/4" monitor input jack. The PM59 is designed for recording, podcast, keyboard players, drummers who need to hear a click track, choir singers who need to hear themselves, and many other applications.
What's in the box?
- 1 - Made in USA PM59
- 1 - 15V power supply PN PS27s
- 1 - This owners manual
- 1 - Love for audio and decades of experience with building and design
| Gain | 10 dB 1/4" 48 dB XLR "MIC" 20 dB XLR "LINE" |
| Input Impedance | 600 Ohms XLR 22K 1/4" |
| Output Impedance | 10 Ohms |
| Frequency Response | 3Hz to 100kHz |
| THD | .05% @ 1KHz |
| S/N Ratio | 90 dB |
| PWR | 9-15 VDC |
| Indicator | 1 Power LED |
