Rolls RA170 70 Volt Mono Installation Power Amplifier
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The RA170 mono power amplifier was designed especially for the installation contractor, and is housed in a single rack-space unit with a choice of either an RCA coaxial or 1/4 TS phono unbalanced input. The 70 volt speaker outputs are provided via spring-loaded terminals and no transformer is required for speaker connection.

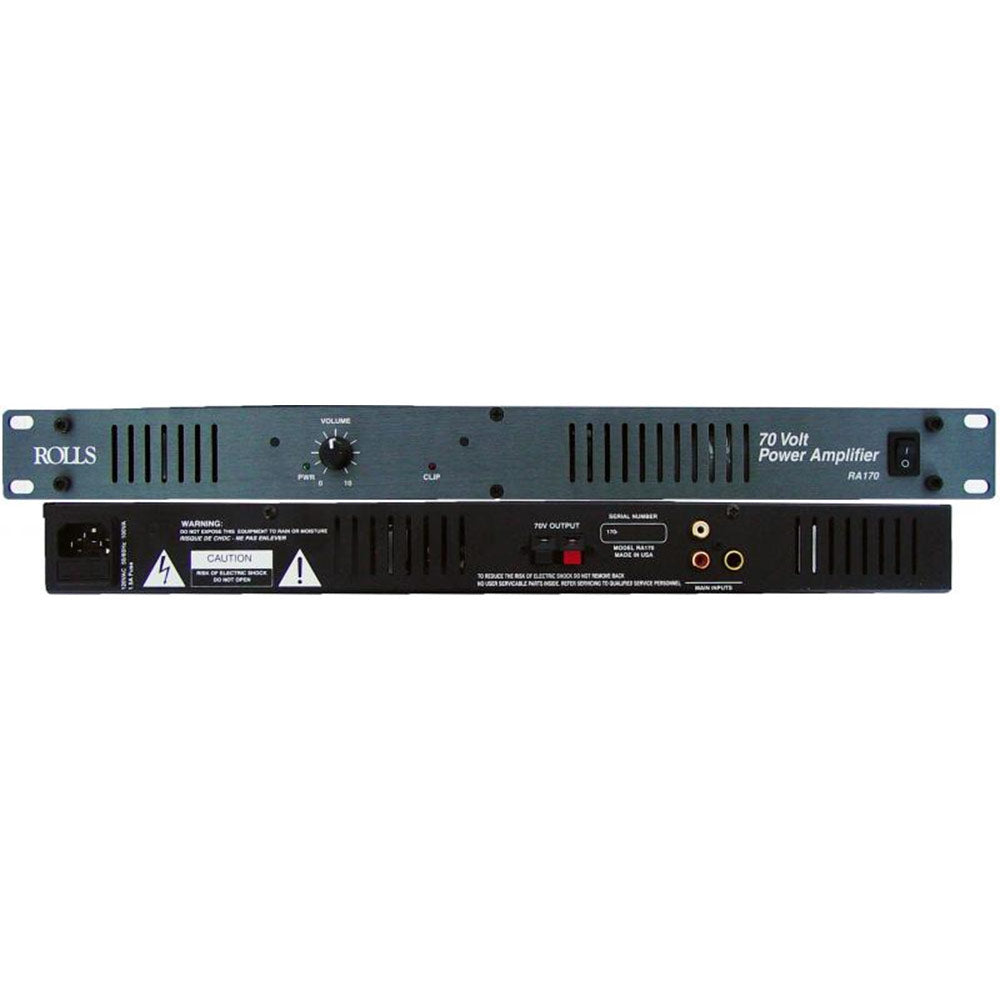

The front panel includes a power indicator LED, a volume control, and two clip LED's which indicate circuitry overload. The output circuitry of the RA170 is protected from momentary shorting and excessive load by a specially designed protective circuit.
Features:
- Mono 70 volt amplifier
- Drives 70 volt speakers directly
- Choice of RCA coaxial or 1/4 TS phono input
- Spring loaded speaker output
- Clip indication
- Fault protection output
| Power Rating | Mono @ 70V: 70 watts maximum |
| Damping Factor | Not applicable |
| Input Sensitivity | Not specified by manufacturer |
| Input Impedance | 147k ohm |
| Gain | 40dB |
| Frequency Response | 70Hz to 20kHz |
| Signal-to-Noise Ratio | Better than 114dB @ 70 watts |
| Total Harmonic Distortion (THD) | Not specified by manufacturer |
| Input Connections | 1 x RCA coaxial, 1 x 1/4 TS phono |
| Output Connectors | 1 x Pair spring loaded speaker connectors |
| Controls Front Panel | Power switch, 1 x Rotary volume |
| Controls (Rear) | None |
| Indicators | 2 x Clip, 1 x Power LED's |
| Cooling | Convection (uses front panel for heat distribution) |
| Power Consumption | Not specified by manufacturer |
| Dimensions | 19 x 5 x 1 3/4 |
| Weight | 5.5 lbs |
| Specialties | Requires no transformer coupling to drive 70 volt speakers directly |
The RA170 mono power amplifier was designed especially for the installation contractor, and is housed in a single rack-space unit with a choice of either an RCA coaxial or 1/4 TS phono unbalanced input. The 70 volt speaker outputs are provided via spring-loaded terminals and no transformer is required for speaker connection.
The front panel includes a power indicator LED, a volume control, and two clip LED's which indicate circuitry overload. The output circuitry of the RA170 is protected from momentary shorting and excessive load by a specially designed protective circuit.
Features:
- Mono 70 volt amplifier
- Drives 70 volt speakers directly
- Choice of RCA coaxial or 1/4 TS phono input
- Spring loaded speaker output
- Clip indication
- Fault protection output
| Power Rating | Mono @ 70V: 70 watts maximum |
| Damping Factor | Not applicable |
| Input Sensitivity | Not specified by manufacturer |
| Input Impedance | 147k ohm |
| Gain | 40dB |
| Frequency Response | 70Hz to 20kHz |
| Signal-to-Noise Ratio | Better than 114dB @ 70 watts |
| Total Harmonic Distortion (THD) | Not specified by manufacturer |
| Input Connections | 1 x RCA coaxial, 1 x 1/4 TS phono |
| Output Connectors | 1 x Pair spring loaded speaker connectors |
| Controls Front Panel | Power switch, 1 x Rotary volume |
| Controls (Rear) | None |
| Indicators | 2 x Clip, 1 x Power LED's |
| Cooling | Convection (uses front panel for heat distribution) |
| Power Consumption | Not specified by manufacturer |
| Dimensions | 19 x 5 x 1 3/4 |
| Weight | 5.5 lbs |
| Specialties | Requires no transformer coupling to drive 70 volt speakers directly |
