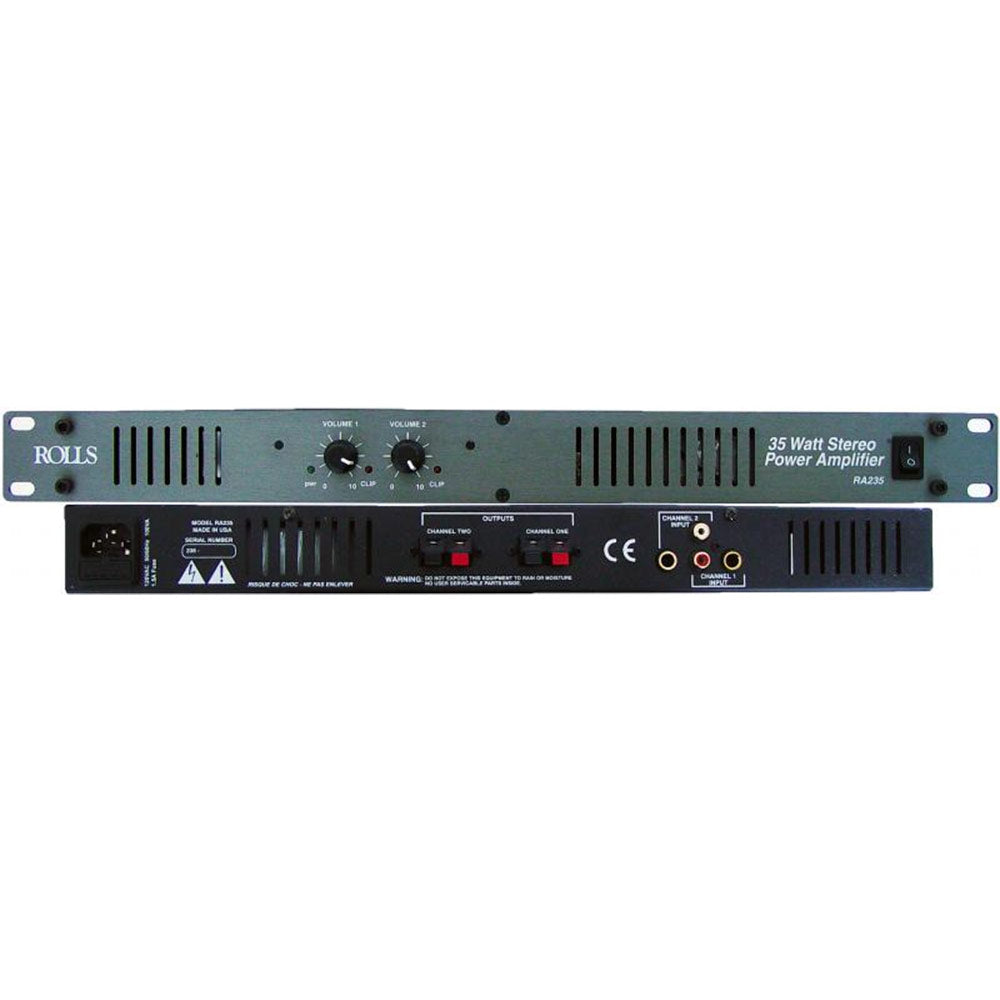

Rolls RA235 Stereo 35W/Ch Power Amplifier - Single Rack Space
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The RA235 is a virtually indestructible single rack space amplifier intended for musicians and studio owners alike. The unit is ideal for home studio applications or wherever a clean, efficient, medium wattage amp is required.
Features:
- 35 Watts per channel of clean amplification
- 1/4" and RCA inputs.
- Convenient spring-loaded output terminals
- Front panel heat sinking for proper venting.
- Protected output stage.
Outputs: Spring loaded terminals to be connected to 8 Ohms speaker loads only.
MAIN INPUTS: 1/4" and RCA jacks to be connected to line level signals to be amplifi ed. Note: Do not directly connect the output of a phono player as those devices require special equalization.For MONO operation, plug one RCA connector between the two RCA jacks. Either Channel One or Channel Two 1/4" inputs may be used as the MONO input.
| Recommended Load | 8 W |
| Frequency Response | 5 Hz - 40 kHz |
| Equiv. Input Noise | 100 mV typical, A Weighted 600 W Input |
| S/N Ratio | 114 dB @ 35 Watts |
| Gain | 34 dB |
| Input Impedance | 47 k W |
| Power | 120 VAC 50-60 Hz |
| Weight | 5.5 lbs (2.5 kg) |
| Size | 19" x 1.75" x 5" (48cm x 4.5cm x 12.7cm) |
The RA235 is a virtually indestructible single rack space amplifier intended for musicians and studio owners alike. The unit is ideal for home studio applications or wherever a clean, efficient, medium wattage amp is required.
Features:
- 35 Watts per channel of clean amplification
- 1/4" and RCA inputs.
- Convenient spring-loaded output terminals
- Front panel heat sinking for proper venting.
- Protected output stage.
Outputs: Spring loaded terminals to be connected to 8 Ohms speaker loads only.
MAIN INPUTS: 1/4" and RCA jacks to be connected to line level signals to be amplifi ed. Note: Do not directly connect the output of a phono player as those devices require special equalization.For MONO operation, plug one RCA connector between the two RCA jacks. Either Channel One or Channel Two 1/4" inputs may be used as the MONO input.
| Recommended Load | 8 W |
| Frequency Response | 5 Hz - 40 kHz |
| Equiv. Input Noise | 100 mV typical, A Weighted 600 W Input |
| S/N Ratio | 114 dB @ 35 Watts |
| Gain | 34 dB |
| Input Impedance | 47 k W |
| Power | 120 VAC 50-60 Hz |
| Weight | 5.5 lbs (2.5 kg) |
| Size | 19" x 1.75" x 5" (48cm x 4.5cm x 12.7cm) |
