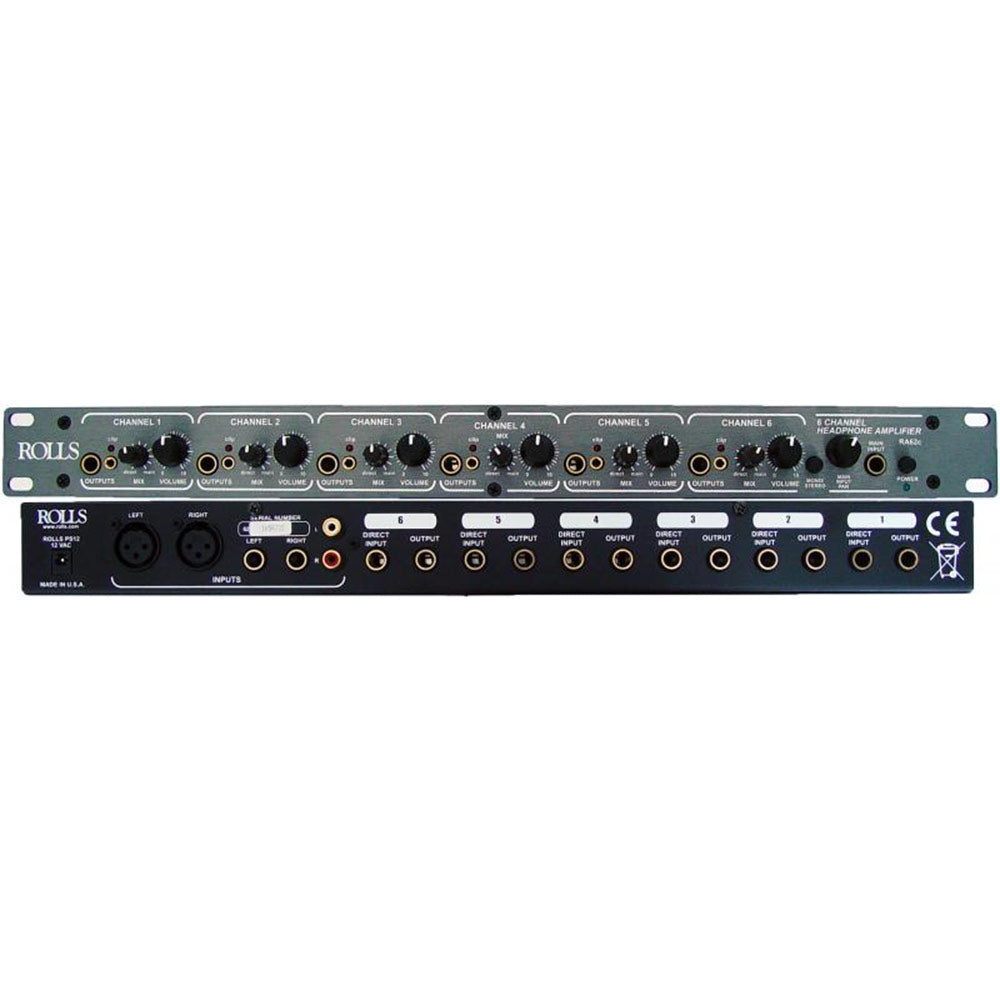

Rolls RA62C Six Channel Stereo Headphone Amplifier
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Rolls RA62c is a 6-channel headphone/earphone amplifier for professional audio monitoring. A variety of input options are available including 1/4 in., RCA, and balanced XLR. Since the Mono/Stereo switch is after the pan control, it will mix 2 Mono signals and their balance can be adjusted with the Pan control. With the addition of rear panel Direct Input connectors, each channel may mix a second stereo signal.
Features:
- 6 channels of clean, quiet headphone/earphone amplification
- Individual Direct Inputs to mix separate stereo signal with Main Input signals
- 1/4 in. and 3.5mm Headphone/Earphone Outputs
- LED Clip indication
| Input Impedance | 10K Ohms unbalanced |
| Max Input Level | +18 dBV |
| Input Connectors | 1/4 in. TRS stereo, R / L bal. / unbal. 1/4 in. RCA, R / L balanced XLR 6: 1/4 in. TRS Direct Input jacks |
| Output Connectors | 12: 1/4 in. TRS Stereo jacks 6: 1/8 in. (3.5 mm) TRS Stereo jacks |
| Max Gain | 20 dB/Channel |
| Max Output Power | up to 300 mW/side, 600 mW/Channel ( @ 16 Ohms ) |
| Frequency Response | DC - 30 kHz |
| S/N Ratio | 90 dB |
| THD | <.008% |
| IMD | <.008% |
| Phase Shift (In to Out) | 0 deg. |
| Slew Rate | 25 V per microsecond Second |
| Crosstalk | - 65 dB |
The Rolls RA62c is a 6-channel headphone/earphone amplifier for professional audio monitoring. A variety of input options are available including 1/4 in., RCA, and balanced XLR. Since the Mono/Stereo switch is after the pan control, it will mix 2 Mono signals and their balance can be adjusted with the Pan control. With the addition of rear panel Direct Input connectors, each channel may mix a second stereo signal.
Features:
- 6 channels of clean, quiet headphone/earphone amplification
- Individual Direct Inputs to mix separate stereo signal with Main Input signals
- 1/4 in. and 3.5mm Headphone/Earphone Outputs
- LED Clip indication
| Input Impedance | 10K Ohms unbalanced |
| Max Input Level | +18 dBV |
| Input Connectors | 1/4 in. TRS stereo, R / L bal. / unbal. 1/4 in. RCA, R / L balanced XLR 6: 1/4 in. TRS Direct Input jacks |
| Output Connectors | 12: 1/4 in. TRS Stereo jacks 6: 1/8 in. (3.5 mm) TRS Stereo jacks |
| Max Gain | 20 dB/Channel |
| Max Output Power | up to 300 mW/side, 600 mW/Channel ( @ 16 Ohms ) |
| Frequency Response | DC - 30 kHz |
| S/N Ratio | 90 dB |
| THD | <.008% |
| IMD | <.008% |
| Phase Shift (In to Out) | 0 deg. |
| Slew Rate | 25 V per microsecond Second |
| Crosstalk | - 65 dB |
