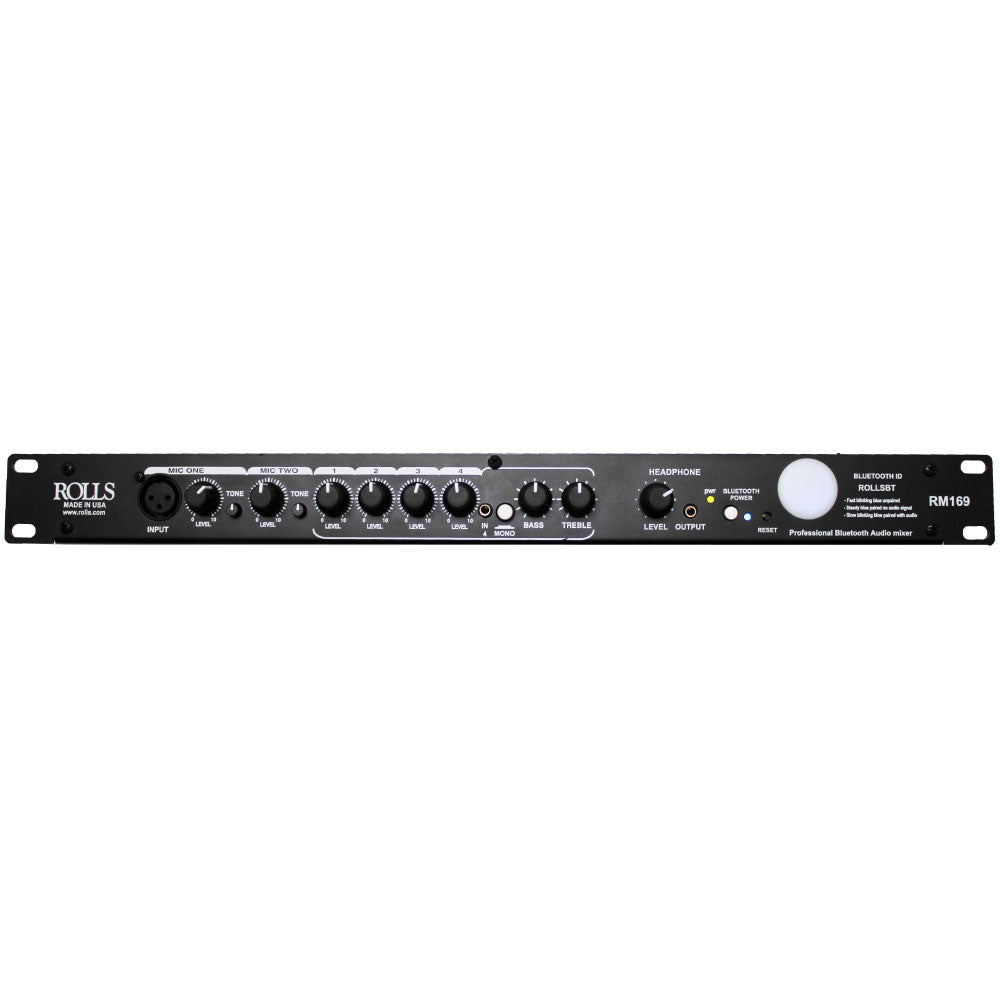

Rolls RM169 Install Audio Mixer with Bluetooth
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The RM169 is a six channel Professional audio mixer with Bluetooth input. Two microphone inputs, and four stereo line RCA inputs, the RM169 is ideal for any installation where space is a consideration, without compromising audio quality. The Bluetooth input has extended range and exceptional audio quality. RCA and XLR balanced outputs jacks make the RM169 perfect for any application.
Features:
- Two XLR Microphone Inputs (including a paralleled front panel input).
- Individually switchable phantom power.
- Four Stereo Source Inputs, Four RCA and one front panel stereo 3.5mm.
- 1/4" TRS Mic Insert jack.
- Stereo RCA and XLR Outputs.
- Headphone output on front panel with volume control.
- Level control for Bluetooth input signal.
| Input Impedance | Mic: 600 Ohms XLR balanced Source: 22K Ohms RCA Mic Insert: 22K Ohms 1/4" TRS insert |
| Weight | 5 lbs. (2.3 kg) |
| Size | 19" x 1.75" x 4" (48.3 x 4.5 x 10 cm) |
| Max Gain | Mic: 60 dB Source: 26 dB Tone Controls: /-12 dB 100 Hz Bass, /-12 dB 11kHz Treble Noise Floor: - 80 dB, THD: <.025% |
| Output Impedance | 51 Ohms |
| Output Level | 17 dBV max |
| Phantom Power | 15 VDC |
| In/Out Connectors | 5: XLR, 5: Stereo RCA, 1: 1/4" TRS, 2: 3.5mm |
| Headphone Output Impedance | > 8 Ohms |
| Max Input Level | Mic: -14 dBV Mic level Source: 24 dBV |
| Current drain | 100ma 15vdc |
The RM169 is a six channel Professional audio mixer with Bluetooth input. Two microphone inputs, and four stereo line RCA inputs, the RM169 is ideal for any installation where space is a consideration, without compromising audio quality. The Bluetooth input has extended range and exceptional audio quality. RCA and XLR balanced outputs jacks make the RM169 perfect for any application.
Features:
- Two XLR Microphone Inputs (including a paralleled front panel input).
- Individually switchable phantom power.
- Four Stereo Source Inputs, Four RCA and one front panel stereo 3.5mm.
- 1/4" TRS Mic Insert jack.
- Stereo RCA and XLR Outputs.
- Headphone output on front panel with volume control.
- Level control for Bluetooth input signal.
| Input Impedance | Mic: 600 Ohms XLR balanced Source: 22K Ohms RCA Mic Insert: 22K Ohms 1/4" TRS insert |
| Weight | 5 lbs. (2.3 kg) |
| Size | 19" x 1.75" x 4" (48.3 x 4.5 x 10 cm) |
| Max Gain | Mic: 60 dB Source: 26 dB Tone Controls: /-12 dB 100 Hz Bass, /-12 dB 11kHz Treble Noise Floor: - 80 dB, THD: <.025% |
| Output Impedance | 51 Ohms |
| Output Level | 17 dBV max |
| Phantom Power | 15 VDC |
| In/Out Connectors | 5: XLR, 5: Stereo RCA, 1: 1/4" TRS, 2: 3.5mm |
| Headphone Output Impedance | > 8 Ohms |
| Max Input Level | Mic: -14 dBV Mic level Source: 24 dBV |
| Current drain | 100ma 15vdc |
