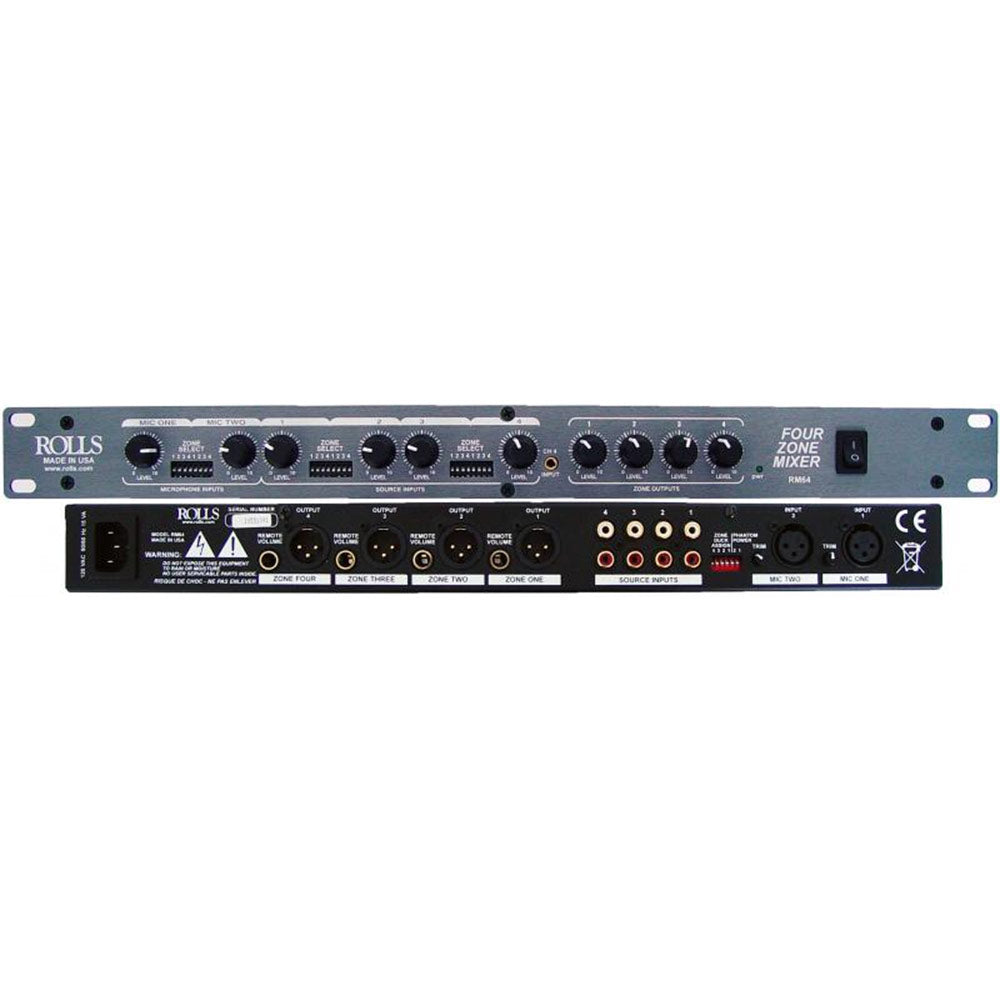

Rolls RM64 Four Zone Mixer



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:ROLL-RM64

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The Rolls RM64 Four Zone Mixer is ideal for use in restaurants, banquet rooms, offices, and other similar venues that need a mix of microphone and source signals sent to multiple rooms. The RM64 has two mic and four line-level source inputs which can be sent to any combination of four output zones. All four outputs have balanced XLR connectors and accompanying 1/4 jacks for external volume control. The mic inputs have automatic ducking for easy paging.
    • Two mic inputs with individual volume controls, zone selector switches, and automatic ducking
    • Four stereo RCA inputs with individual volume controls and zone selector switches
    • Four output zones with XLR connectors, individual volume controls, and 1/4 jacks for remote volume control
    • Single rack space steel housing
  • Input ImpedanceMic: 10 k ohms (Balanced)
    RCA: 50 k ohms (Unbalanced)
    Output Impedance50 ohms (Balanced XLR)
    Maximum Input LevelMic: +10dB
    Source: +22dB
    Phantom Power+12 VDC
    Inputs2 x XLR Female
    4 x RCA Stereo Pairs
    Outputs4 x XLR Male
    Controls Front Panel1 x Power Switch
    4 x Zone Level Control Knobs
    4 x Source Input Level Control Knobs
    16 x Source Zone Selector Switches
    2 x Mic Level Control Knobs
    8 x Mic Zone Selector Switches
    Controls Rear Panel2 x Mic Trim Controls
    2 x Phantom Power On/Off Switches
    4 x Ducking Switches
    Maximum Input Gain60dB Mic
    30dB Line
    Signal to Noise RatioGreater than 75dB
    Total Harmonic Distortion (THD)Less than 0.3%
    IMDLess than 0.3%
     Common Mode Rejection Ratio90dB
    Frequency Response20Hz - 20kHz
    Power120 VAC, 50-60Hz, 15 W
    Dimensions (WxHxD)19 x 1.75 x 6.5" (483 x 45 x 165 mm)
    Weight7 lbs (3 kg)
