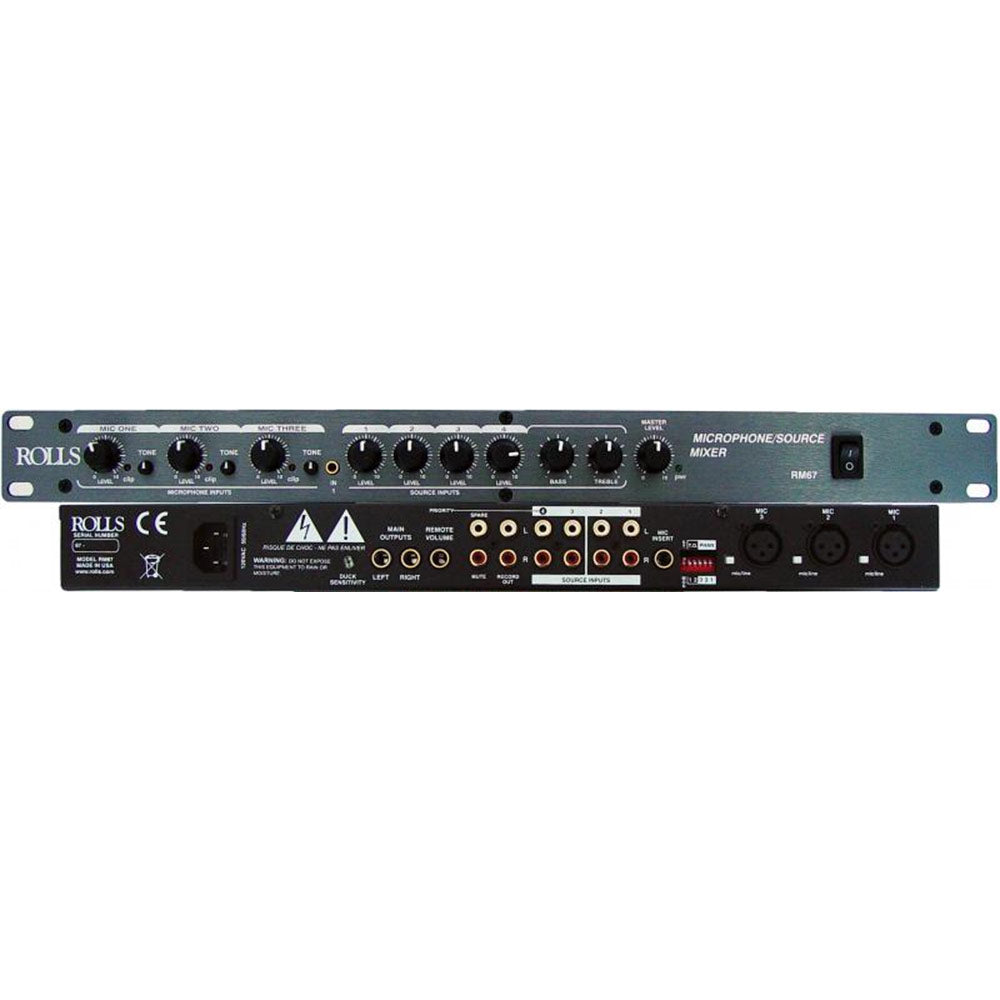

Rolls RM67 Single Rack Space Mic/Source Mixer for Install Applications - 3 XLR+3 Stereo Source Ins
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The RM67 is a single rack space mixer designed for the install/contractor market. The unit mixes three balanced microphones with four stereo sources to mono or stereo balanced outputs,the XLR Microphone Inputs have Mic/Line level switches, a send/return Insert jack, and individually switchable +12 VDC phantom power. Priority talkover, with variable Duck Sensitivity is available on one microphone for paging, and on one Source input for use on a jukebox. telephone system, etc, Each Microphone input has a level and tone control, and each Source input has a level control. Bass and Treble controls have been provided for all the sources, and a Master Output Level control adjusts the level of all mixed signals. Source One has an added front-panel 3.5mm input,A pre-Master RCA output has been provided for recording, and a Remote Volume output jack is provided for connection to a 100K ohm linear taper potentiometer and used as an external master level control.
Features:
- Three XLR mic inputs with switchable phantom power and input padding.
- Four stereo RCA line/consumer level inputs.
- Mic Insert jack for adding signal processing to the Mic Inputs.
- Priority ducking/talk-over for microphone paging, and jukebox.
- Stereo Record Out.
- Remote Volume jack (connects to an optional 100K ohm potentiometer).
- Master Level control.
- Mute jack, contact closure to ground main output mute.
- Clip LEDs for each Mic input.
- Master Bass and Treble controls.
| Input Impedance | |
| Mic | 600 Ohms XLR balanced |
| Line | 22K Ohms |
| Source | 22K Ohms gold plated RCA |
| Mic Insert | 22K Ohms 1/4 TS unbal |
| Max Input Level | |
| Mic | -14 dBV Mic level, +20 dB Line level |
| Source | 24 dBV |
| Connectors | 3: XLR, 6: Stereo RCA, 3: 1/4 TRS, 1: 1/4 TS, 1: 3.5mm |
| Phantom Power | +12 VDC |
| Output Level | +17 dBV max |
| Output Impedance | 51 Ohms |
| Max Gain | Mic:60 dB, Source:26 dB |
| Tone Controls | +/-12 dB 100 Hz Bass, +/-12 dB 11kHz Treble |
| Nose Floor | - 80 dB, THD: <.025%, S/N Ratio: 96 dB |
| Size | 19 x 1.75 x 6 (48.3 x 4.5 x 15 cm) |
