Rolls RM69 6-Channel Mic/Line Mixer with Phantom Power
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

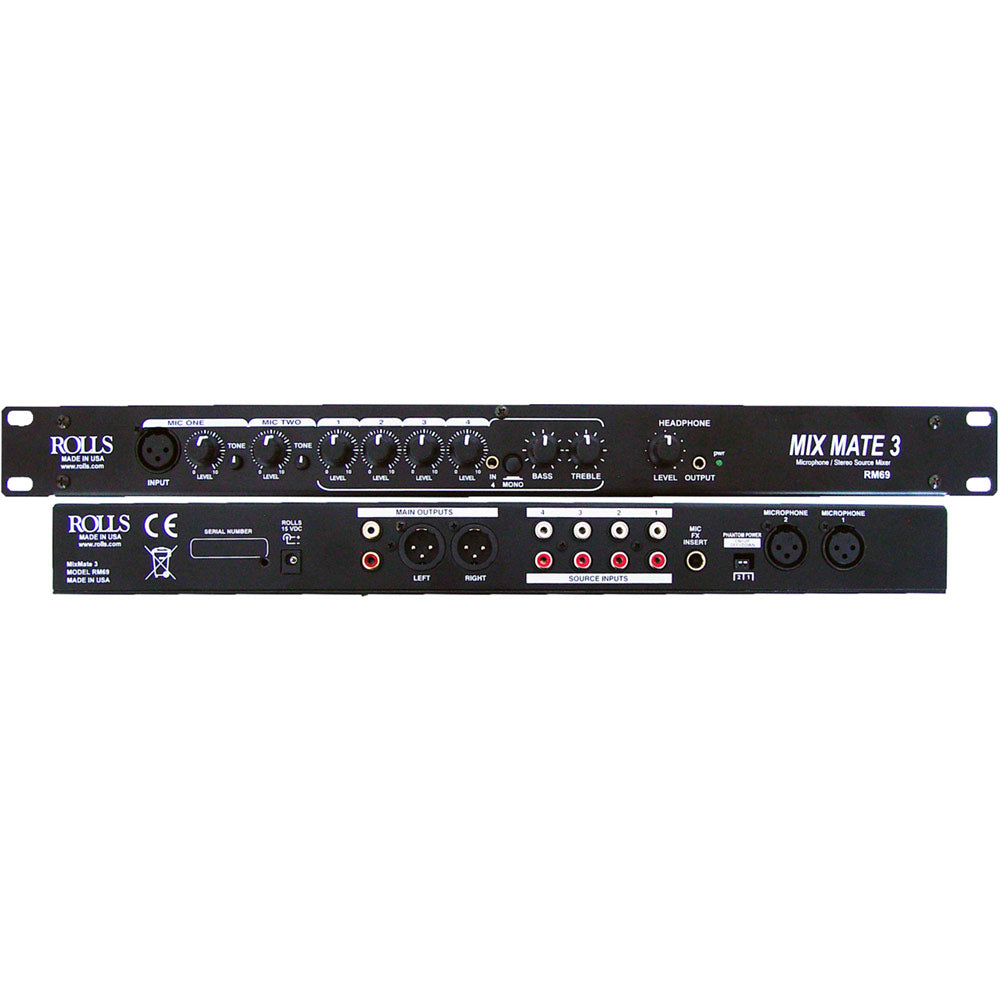

The RM69 MixMate 3 is a six channel, single rack space, audio mixer with two microphone inputs and four stereo line inputs. The unit is ideal for installs such as small restaurants or night clubs where space is a consideration, without compromising audio quality. A convenient front-panel 3.5mm jack has been included for connection to any standard MP3 player's output.
Features:
- Two XLR Microphone Inputs (including a paralleled front panel input)
- Individually switchable phantom power
- Four Stereo Source Inputs, Four RCA and one front panel stereo 3.5mm
- 1/4" TRS Mic Insert jack
- Stereo RCA and XLR Outputs
- Headphone output on front panel with volume control
| Input Impedance | Mic: 600 Ohms XLR balanced Source: 22K Ohms RCA Mic Insert: 22K Ohms 1/4" TRS insert |
| Max Input Level | Mic: -14 dBV Mic level Source: 24 dBV |
| Headphone Output Impedance | >8 Ohms |
| Total In/Out Connectors | 5: XLR, 5: Stereo RCA, 1: 1/4" TRS, 2: 3.5mm |
| Phantom Power | +15 VDC |
| Output Level | +17 dBV max |
| Output Impedance | 100 Ohms Balanced |
| Max Gain | Mic: 60 dB Source: 26 dB |
| Tone Controls | +/- 12dB 100 Hz Bass +/- 12dB 11kHz Treble |
| Noise Floor | -80 dB, THD: <.025% |
| S/N Ratio | 96 dB |
| Size | 19" x 1.75" x 4" (48.3 x 4.5 x 10 cm) |
| Weight | 5 lbs. (2.3 kg) |
The RM69 MixMate 3 is a six channel, single rack space, audio mixer with two microphone inputs and four stereo line inputs. The unit is ideal for installs such as small restaurants or night clubs where space is a consideration, without compromising audio quality. A convenient front-panel 3.5mm jack has been included for connection to any standard MP3 player's output.
Features:
- Two XLR Microphone Inputs (including a paralleled front panel input)
- Individually switchable phantom power
- Four Stereo Source Inputs, Four RCA and one front panel stereo 3.5mm
- 1/4" TRS Mic Insert jack
- Stereo RCA and XLR Outputs
- Headphone output on front panel with volume control
| Input Impedance | Mic: 600 Ohms XLR balanced Source: 22K Ohms RCA Mic Insert: 22K Ohms 1/4" TRS insert |
| Max Input Level | Mic: -14 dBV Mic level Source: 24 dBV |
| Headphone Output Impedance | >8 Ohms |
| Total In/Out Connectors | 5: XLR, 5: Stereo RCA, 1: 1/4" TRS, 2: 3.5mm |
| Phantom Power | +15 VDC |
| Output Level | +17 dBV max |
| Output Impedance | 100 Ohms Balanced |
| Max Gain | Mic: 60 dB Source: 26 dB |
| Tone Controls | +/- 12dB 100 Hz Bass +/- 12dB 11kHz Treble |
| Noise Floor | -80 dB, THD: <.025% |
| S/N Ratio | 96 dB |
| Size | 19" x 1.75" x 4" (48.3 x 4.5 x 10 cm) |
| Weight | 5 lbs. (2.3 kg) |
