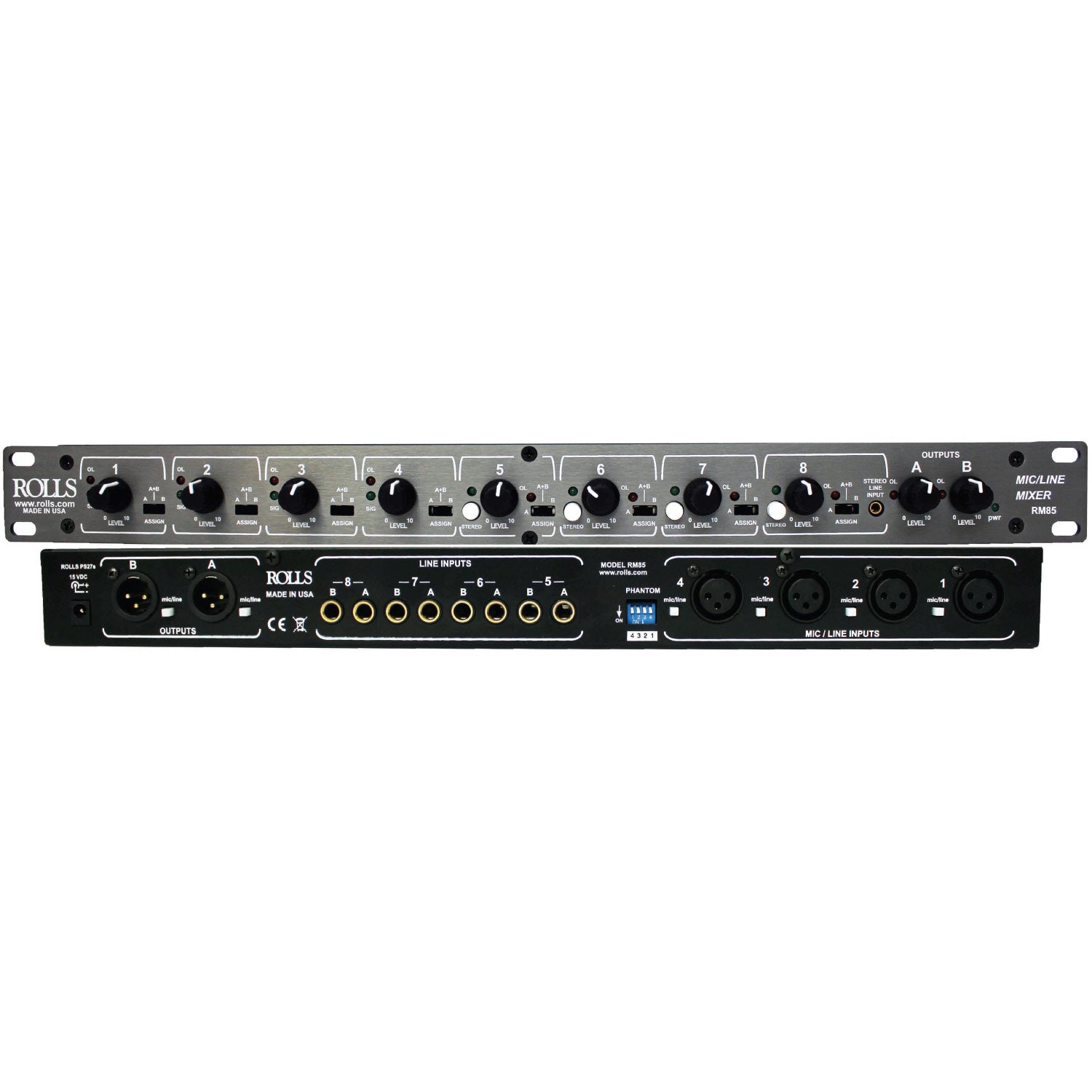

Rolls RM85 Two Zone Mic/Line Mixer
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The RM85 is a 8 channel two zone mixer. Channels 1-4 will accommodate XLR microphone or XLR line level inputs. Channels 5-8 are 1/4" inputs. All 8 channels can be sent to the two XLR outputs in three configurations; A, B or both A+B. The separate A and B outputs are XLR and either can be selected to be Line or Microphone level output. Channel 8 also has a stereo 3.5mm (1/8") input on the front of the RM85.
Features:
- Four XLR balanced inputs with +48 V phantom power
- Four stereo Source inputs, including a front panel 3.5mm input
- Master Output Level control for each channel
- Low noise, efficient operation
- All in a single rack space
| Input Impedance | |
| Mic | 600 Ohms XLR |
| balanced Line | 22K Ohms RCA |
| Max Input Level | |
| Mic | -14 dBV |
| Mic level Line | +24 dBV |
| Total input Connectors | 4- XLR, 4- Stereo 1/4", 1- 3.5mm |
| Phantom Power | +48 VDC |
| RCA Output Level | +17 dBV max (impedance 1K Ohm) |
| Max Gain | |
| Mic | 70 dB |
| Source | 30 dB |
| Noise Floor | - 80 dB THD:<.025% |
| S/N Ratio | 96 dB |
| Voltage Gain | 32 dB |
| Nominal Supply Voltage | 15 VDC |
| Bandwidth | 20Hz - 25 kHz |
| Size | 19" x 1.75" x 4" (48.3 x 4.5 x 10 cm) |
| Weight | 7 lbs. (2.3 kg) |
| Power supply | Rolls PS27s power supply 15 VDC 500 mA TIP NEGATIVE. |
