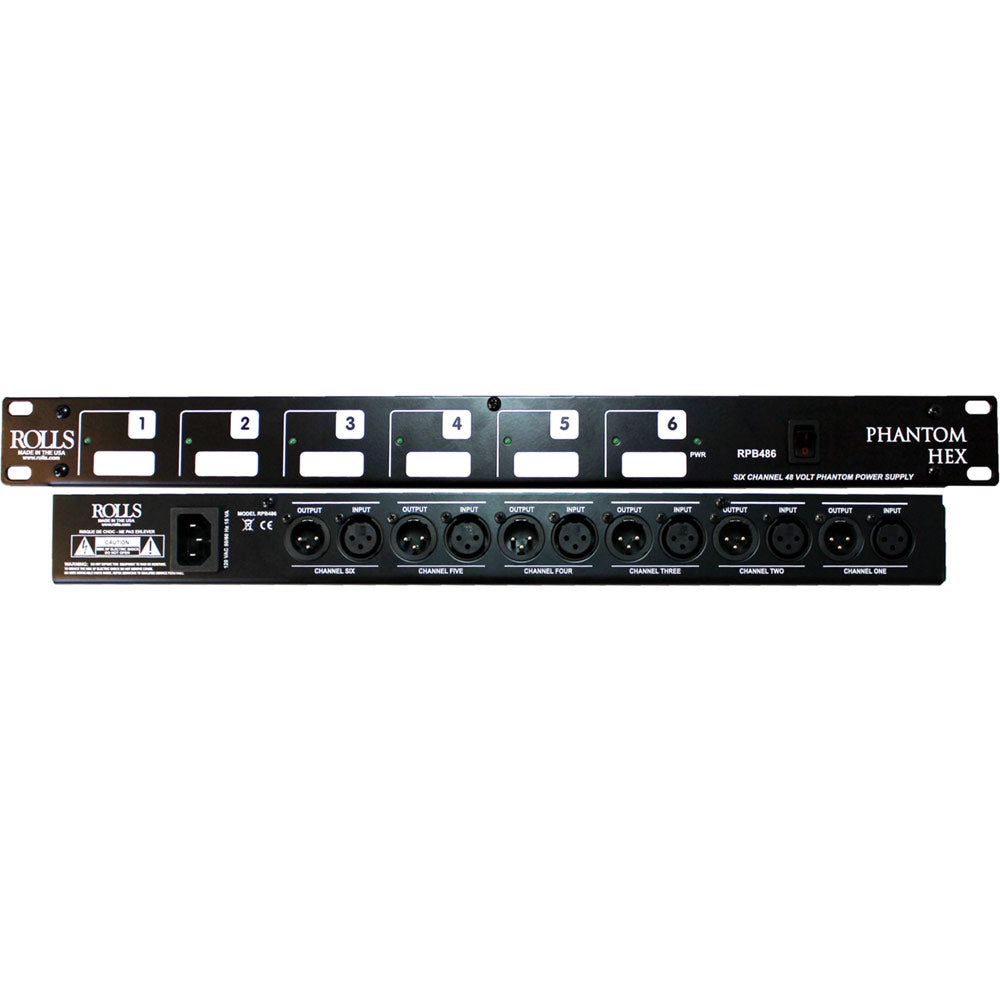

Rolls RPB486 Phantom Hex 6-Channel Phantom Power - with XLR Inputs and Output
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The RPB486 powers up to 6 condenser microphones with 48 volts of ultra clean phantom power. The outputs are XLR balanced for easy connection to a digital multi-track recorder. To eliminate the possibility of any DC voltages, the RPB486 features pull-down resistors and isolation capacitors on all outputs.
Features:
- XLR Input and XLR Output
- +48 Volt Regulated Phantom Power.
- LED "In Use" Indication.
- Perfect for digital multitrack use.

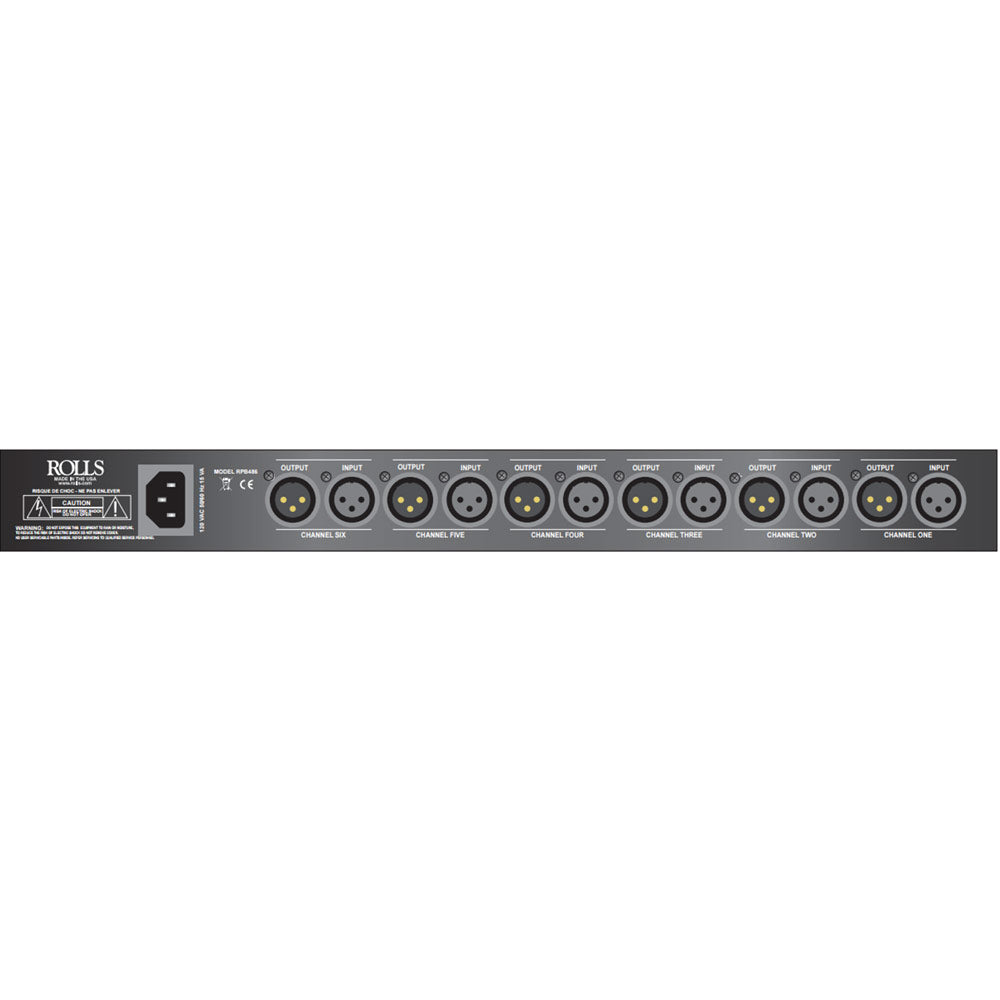

| Connectors | 6 ea. XLR female jacks (pin 2 hot) 6 ea. XLR male jacks (pin 2 hot) |
| Phantom Power Voltage | 48 Volts |
| Max Phantom Power Current: | 14 mA each channel |
| Power Supply | Linear 120VAC 50/60Hz |
| Size (W x H x D) | 19Ó x 1.75Ó x 2.5Ó (48 x 4.5 x 12.7) |
| Weight | 4 lbs |
The RPB486 powers up to 6 condenser microphones with 48 volts of ultra clean phantom power. The outputs are XLR balanced for easy connection to a digital multi-track recorder. To eliminate the possibility of any DC voltages, the RPB486 features pull-down resistors and isolation capacitors on all outputs.
Features:
- XLR Input and XLR Output
- +48 Volt Regulated Phantom Power.
- LED "In Use" Indication.
- Perfect for digital multitrack use.
| Connectors | 6 ea. XLR female jacks (pin 2 hot) 6 ea. XLR male jacks (pin 2 hot) |
| Phantom Power Voltage | 48 Volts |
| Max Phantom Power Current: | 14 mA each channel |
| Power Supply | Linear 120VAC 50/60Hz |
| Size (W x H x D) | 19Ó x 1.75Ó x 2.5Ó (48 x 4.5 x 12.7) |
| Weight | 4 lbs |
