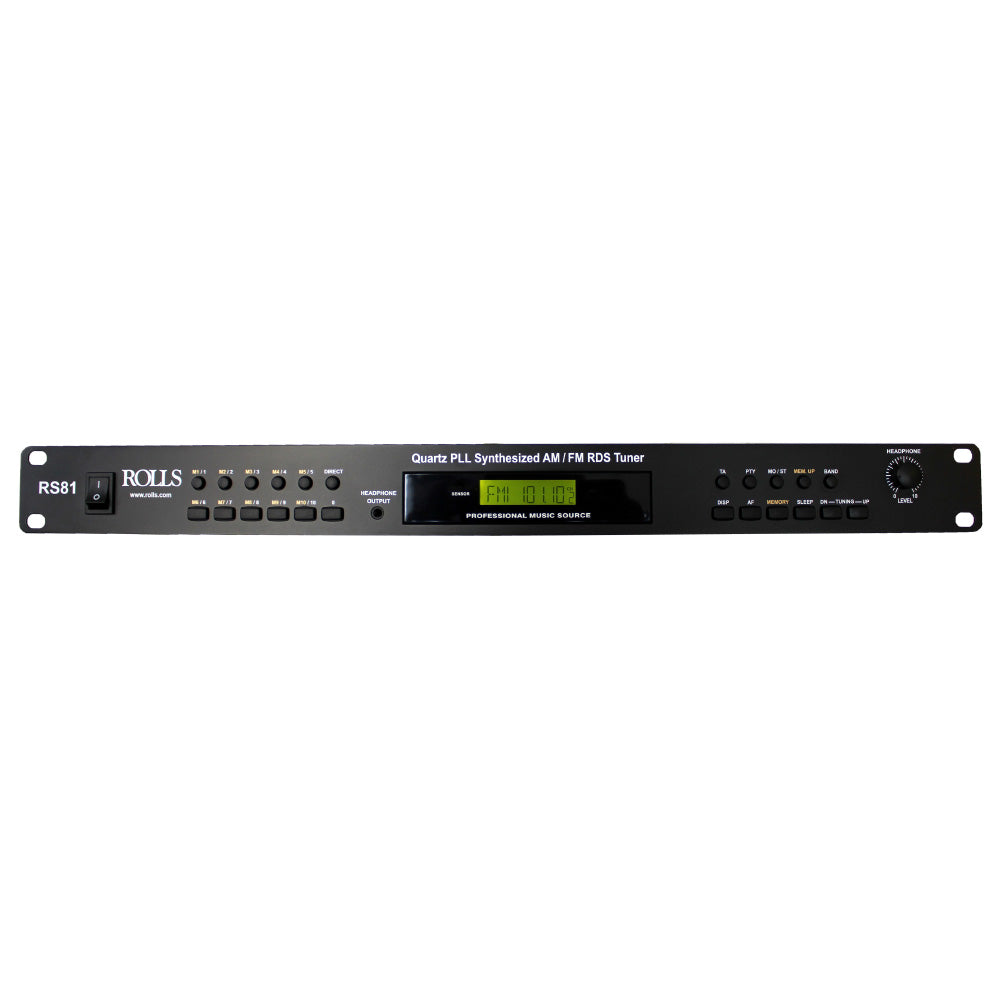

Rolls RS81B Quartz PLL Synthesized AM/FM Tuner
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The RS81B is a single rack space Phase Lock Loop digital AM/FM Tuner designed and built for professional applications such as remote radio station trucks and repeaters, church and school installations, as well as night clubs and restaurants.
Features:
- Up to 30 FM and AM stations may be stored.
- RDS ( Radio Data System) Display.
- Retains presets when power is off.
- Large LCD digital display.
- Auto Search function.
- Standard 1 space EIA rack chassis.

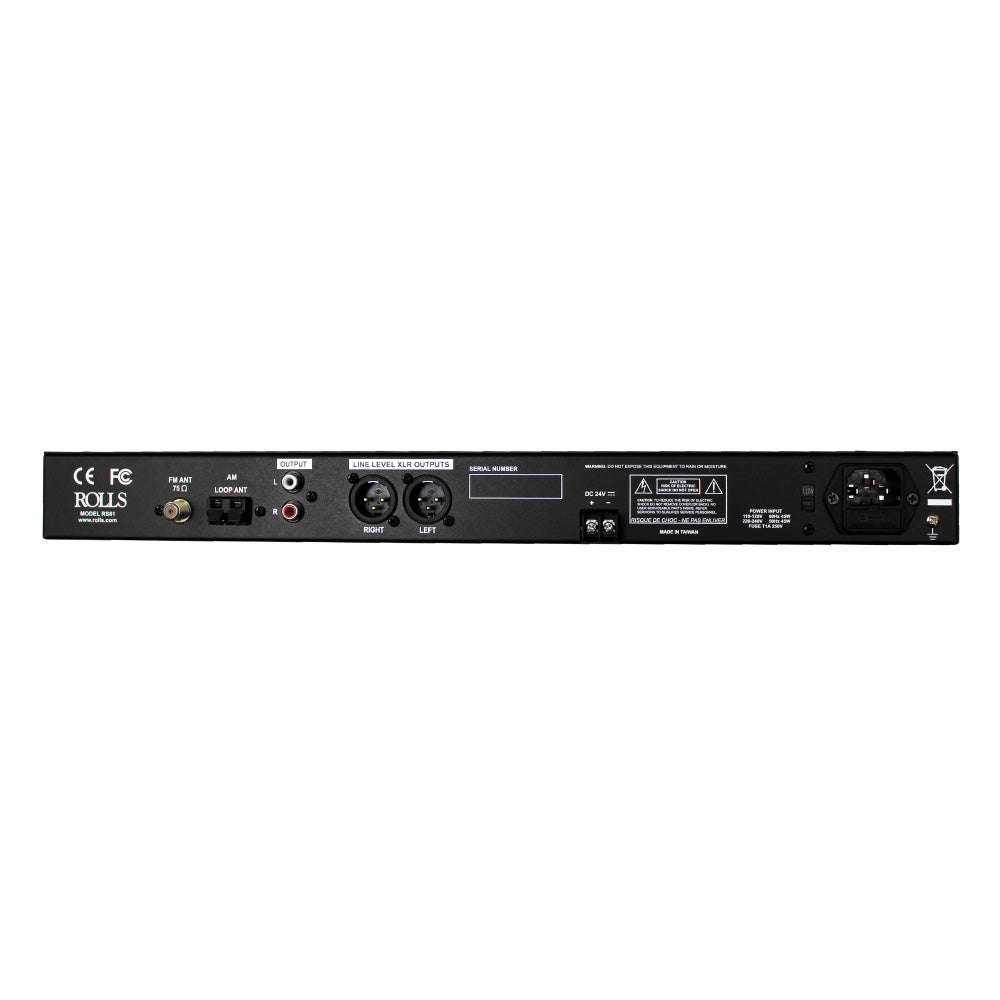

- 3.5mm Headphone output, XLR outputs.
- Remote included.
| FM SECTION | |
| Tuning Range | 87.5-108MHz |
| 3 dB Limiting | 12dB |
| Image Rejection | 53dB |
| Usable sensitivity mono IHF | 9dB |
| Selectivity | (-70KHz : +90KHz) |
| S/N Ratio at 1 mV Mono | 52dB |
| Stereo | 50dB |
| THD at 1 mV 40 kHz deviation | 0.18% |
| Stereo Separation | 28dB |
| Auto Scan Sensitivity | 23dB |
| AM Suppression Mod | 52dB |
| Antenna Input Impedance | 75 Ohms |
| AM SECTION | |
| Tuning Range | 530 - 1710 kHz (10 kHz increm.) |
| IF Frequency | 450KHz |
| Usable Sensitivity | 28dB |
| Auto Scan Sensitivity | 41dB |
| S/N Ratio at 5 mV/M | 46dB |
| 6 dB Bandwidth | 7KHz |
| Image Rejection | 42dB |
| A.C.A. +/- 9 kHz | 46dB |
| AGC Action | 43dB |
| THD at 5mV/M | 0.40% |
| Antenna Input Impedance | 300 Ohms |
| Size | 19” x 1.75” x 7” |
| Weight | 7.1 lbs. (3.2 kg) |
The RS81B is a single rack space Phase Lock Loop digital AM/FM Tuner designed and built for professional applications such as remote radio station trucks and repeaters, church and school installations, as well as night clubs and restaurants.
Features:
- Up to 30 FM and AM stations may be stored.
- RDS ( Radio Data System) Display.
- Retains presets when power is off.
- Large LCD digital display.
- Auto Search function.
- Standard 1 space EIA rack chassis.
- 3.5mm Headphone output, XLR outputs.
- Remote included.
| FM SECTION | |
| Tuning Range | 87.5-108MHz |
| 3 dB Limiting | 12dB |
| Image Rejection | 53dB |
| Usable sensitivity mono IHF | 9dB |
| Selectivity | (-70KHz : +90KHz) |
| S/N Ratio at 1 mV Mono | 52dB |
| Stereo | 50dB |
| THD at 1 mV 40 kHz deviation | 0.18% |
| Stereo Separation | 28dB |
| Auto Scan Sensitivity | 23dB |
| AM Suppression Mod | 52dB |
| Antenna Input Impedance | 75 Ohms |
| AM SECTION | |
| Tuning Range | 530 - 1710 kHz (10 kHz increm.) |
| IF Frequency | 450KHz |
| Usable Sensitivity | 28dB |
| Auto Scan Sensitivity | 41dB |
| S/N Ratio at 5 mV/M | 46dB |
| 6 dB Bandwidth | 7KHz |
| Image Rejection | 42dB |
| A.C.A. +/- 9 kHz | 46dB |
| AGC Action | 43dB |
| THD at 5mV/M | 0.40% |
| Antenna Input Impedance | 300 Ohms |
| Size | 19” x 1.75” x 7” |
| Weight | 7.1 lbs. (3.2 kg) |
