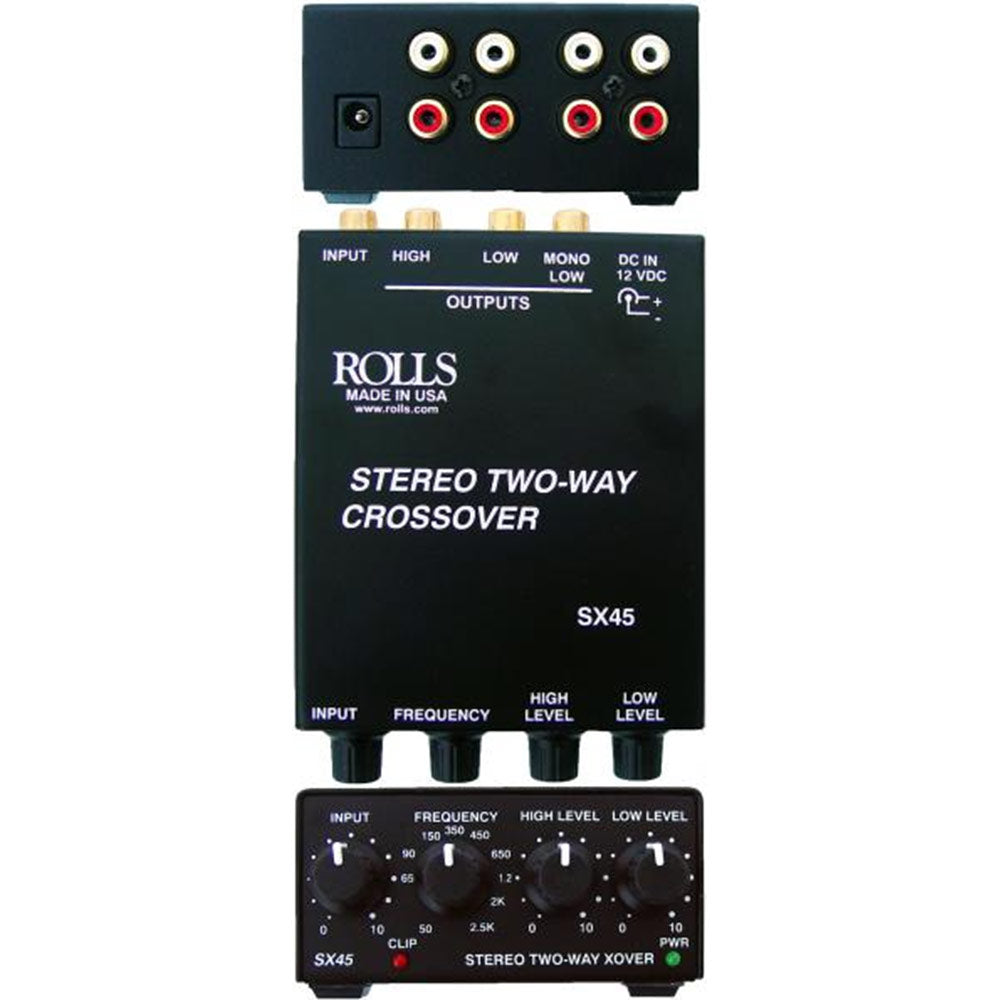

Rolls SX45 Stereo Two-Way Crossover - 50Hz to 2.5kHz crossover range
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
The SX45 is a unique frequency dividing device for small sound reinforcement applications. The unit features a 12 dB/Octave roll off rate, a frequency dividing range of 50Hz to 2.5kHz, and an external power supply for noise reduction.
Features:
- 12 dB/Octave rolloff
- Stereo RCA Input and Outputs
- 50Hz to 2.5 kHz crossover range
- Mono Sub Output
| Input Impedance | 10K Ohm |
| Output Impedance | 1K Ohm |
| Headroom | +10 dBV |
| Power Requrements | 12 - 16 VDC, 150 mA;Rolls part number PS27 |
| Size | 4.25" x 3.625" x 1.5" |
| Weight | 1 lb. |
The SX45 is a unique frequency dividing device for small sound reinforcement applications. The unit features a 12 dB/Octave roll off rate, a frequency dividing range of 50Hz to 2.5kHz, and an external power supply for noise reduction.
Features:
- 12 dB/Octave rolloff
- Stereo RCA Input and Outputs
- 50Hz to 2.5 kHz crossover range
- Mono Sub Output
| Input Impedance | 10K Ohm |
| Output Impedance | 1K Ohm |
| Headroom | +10 dBV |
| Power Requrements | 12 - 16 VDC, 150 mA;Rolls part number PS27 |
| Size | 4.25" x 3.625" x 1.5" |
| Weight | 1 lb. |
