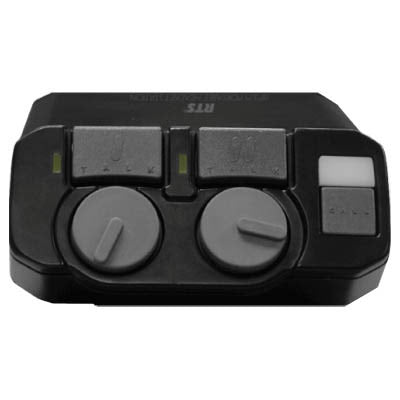

RTS BP-325 Dual-Channel Binaural Programmable Beltpack for Dynamic Microphones - Black
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The BP-325 is a portable beltpack for use with RTS Two-Wire intercom systems. The BP-325 is a binaural (stereo) programmable two-channel beltpack with program-input capability. The BP-325 is for use with a dynamic microphone only. The BP-319 is a microprocessor controlled one-channel intercom where the BP-351 is a microprocessor controlled two-channel select intercom beltpack. The BP-319 and BP-351 have connections for headset/earset microphones (Dynamic or Electret). The factory setting is for Dynamic.
Features:- Call Function: Call function that allows the user to send or receive call signals to other devices on the intercom channel, including audible call alert on the listen side.
- Microphone Kill Detect: Microprocessor controlled microphone kill detect.
- Powered Externally: Powered externally, via the intercom system power supply on channel one.
- Headset: Headset 4 or 5-pin XLR connection is available. (The BP-325 has both standard.)
- Auto-Sensing Headset Connector: The BP-319 and BP-351 have a built-in auto-sensing headset connector that will determine automatically whether a dynamic or electret headset is connected to the system. (BP-319 and BP-351 only)
| General | |
| Channel Supplied Power Requirements | 30 VDC nominal (standard RTS line), 65 to 85 mA |
| Environmental Requirements | |
| Storage | -20¡C to 80¡C, 0% to 95% humidity, noncondensing |
| Operating | 0¡C to 50¡C, 0% to 95% humidity, noncondensing |
| Dimensions | 5.00Ó (127mm) High, 3.75Ó (96.3mm) Wide, 2.05Ó (52.1mm) Deep |
| Weight | 0.75 pounds (340 grams) |
| Exterior | Polystyrene and polycarbonate mix, gray textured main body |
| Impedance Across Intercom Line | 10,000 ohms typical |
| Ambient Temperature Range | |
| Operating | 0¡ C to 50¡ C |
| Storage | -40¡ C to 125¡ C |
| Noise Contribution to 200 ohms Intercom Line | -75 dBu |
| Program Input | |
| Maximum input level | +20 dBu |
| Nominal input level | -10 to +8 dBu |
| Frequency response | 100 Hz to 12 kHz, ±3 dB |
| Monaural Dynamic-mic Headset Connector | XLR-4-31 receptacle (J13) |
| Pin 1 | Microphone low |
| Pin 2 | Microphone high |
| Pin 3 | Common |
| Pin 4 | Headphone high |
| Stereo Dynamic-mic Headset Connector | XLR-5-31 receptacle (J14) |
| Pin 1 | Microphone low |
| Pin 2 | Microphone high |
| Pin 3 | Common |
| Pin 4 | Headphone left high |
| Pin 5 | Headphone right high |
| Carbon-mic Headset Connector (J1) | _-inch, 3-conductor Phone Jack |
| Used for Headset | |
| Tip | Carbon microphone |
| Ring | Headphone |
| Sleeve | Common |
| Used for Mic Switch | |
| Tip | Remote switch normal-open contact |
| Ring | No connection |
| Sleeve | Remote switch common |
| Intercom Line Input Connector (J11) | XLR-3-31 female receptacle |
| Pin 1 | Common |
| Pin 2 | Channel 1 intercom audio and +DC |
| Pin 3 | Channel 2 intercom audio |
| Line Loop/Aux Connector (J10) | XLR-3-32 male receptacle |
| Used for Loop-through | |
| Pin 1 | Common |
| Pin 2 | Channel 1 intercom audio and +DC |
| Pin 3 | Channel 2 intercom audio |
| Used for Program Input | |
| Pin 1 | Common |
| Pin 2 | Program input high |
| Pin 3 | Program input low |
| Used for Remote Mic Switch and/or External Power | |
| Pin 1 | Common |
| Pin 2 | +22 to +24 volts DC |
| Pin 3 | Remote switch normal-open contact |
| Height | 5 (12.7 cm) |
| Width | 3.75 (9.53 cm) |
| Depth | 2.05 (5.21 cm) |
| Weight | 0.5 lbs (0.23 kg) |
| Color | Black |
