RTS DBP - Digital Beltpack for OMNEO Intercom (XLR4M)

  • Dale #:

    RTS-DBP4M
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

DBP is a four-channel/four-button wired beltpack that runs on PoE+ (Power over Ethernet 802.3af and 802.3at) and connects using OMNEO IP technology. Its unique hybrid design supports both digital partyline and matrix keypanel modes: for use as a digital partyline device, DBP connects to an OMS; f... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

DBP is a four-channel/four-button wired beltpack that runs on PoE+ (Power over Ethernet 802.3af and 802.3at) and connects using OMNEO IP technology. Its unique hybrid design supports both digital partyline and matrix keypanel modes: for use as a digital partyline device, DBP connects to an OMS; for use as a portable keypanel, including functionality like point-to-point communication, DBP can be connected to any RTS digital/IP matrix product using OMNEO - including OMI cards in ADAM/ADAM-M frames or OMNEO ports on ODIN frames. DBP automatically selects the correct mode of operation (digital partyline/OMS or keypanel/matrix) when connected and switched on.

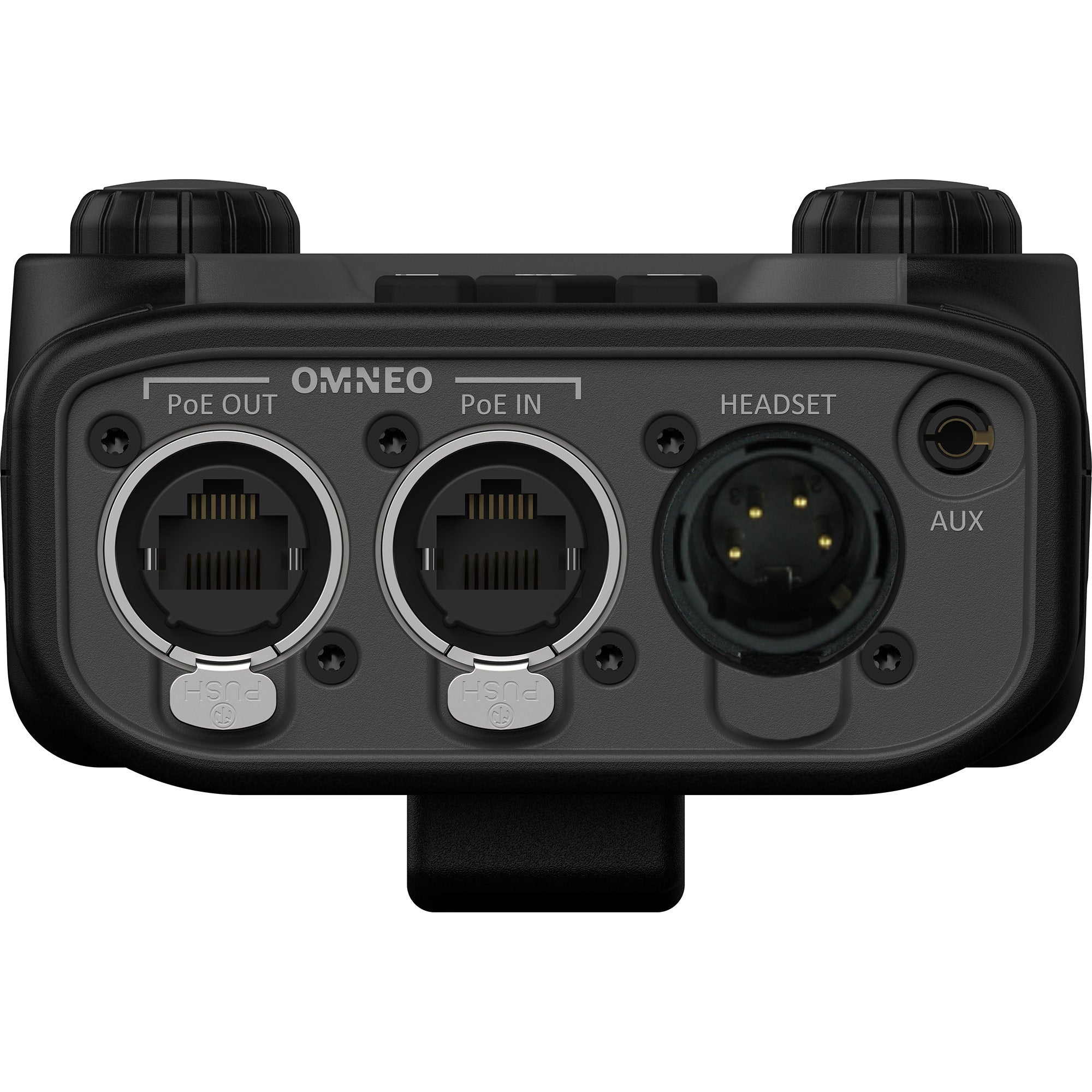

DBP's PoE-driven design gives it an unmatched level of scalability and makes it easy to add new users. In and Out PoE ports (two etherCON locking RJ45 connectors) allow up to six DBP devices to be daisy-chained together from the same PoE switch port when used in partyline mode. Up to 40 DBPs can be connected to an OMS, allowing for the creation of an extensive digital partyline system - all in addition to the other wired and wireless devices OMS supports. Depending on the matrix model/configuration, up to 64 DBPs can be connected to an OMI card for ADAM matrices, and up to 128 DBPs can be connected to one ODIN.

Features:

  • Hybrid functionality - Operate DBP in partyline mode with OMS (OMNEO Main Station) or in portable keypanel mode with an RTS matrix (ODIN/ADAM) - one device covers it all
  • Daisy chaining - Connect DBP to a PoE switch via OMS/ODIN/ADAM and up to six DBPs can be daisy chained together
  • User friendly - Lightweight and ergonomic design with full-color icon-based menu navigation for quick setup and intuitive operation


DBP is one device that can cover it all, whether the application is simple or sophisticated. It is ideal for new users or current partyline users looking to grow from analog systems into the superior sound quality and flexible connectivity of digital/IP communications, such as theaters, houses of worship, educational facilities, mobile applications and AV rental. Because it offers both digital partyline and matrix keypanel modes, DBP also offers excellent ROI for customers with existing RTS matrix intercom equipment. For example, users such as broadcast networks and industrial facilities can expand their comms inventory cost-effectively with digital partyline - all while continuing to leverage the scalability of their matrix equipment.

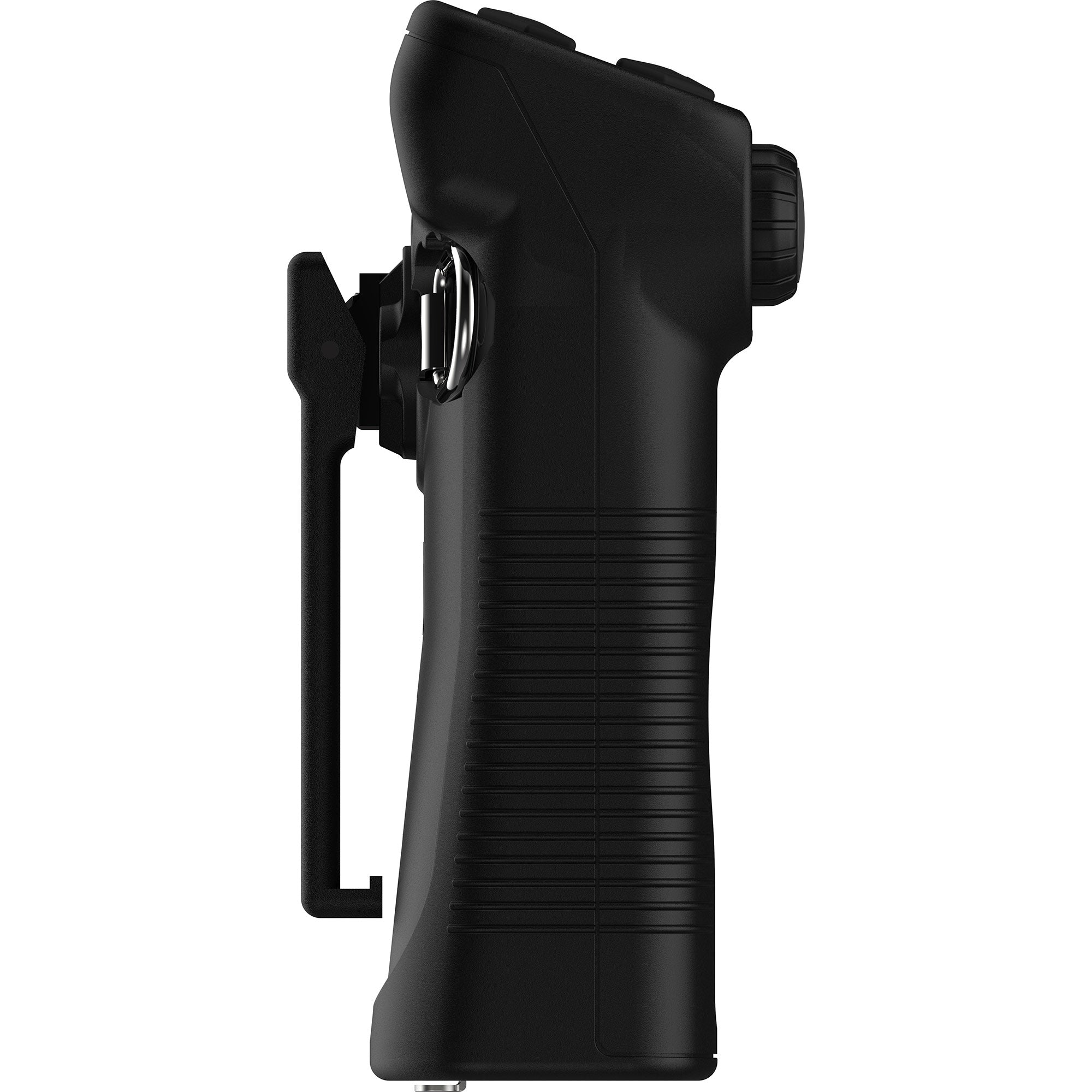

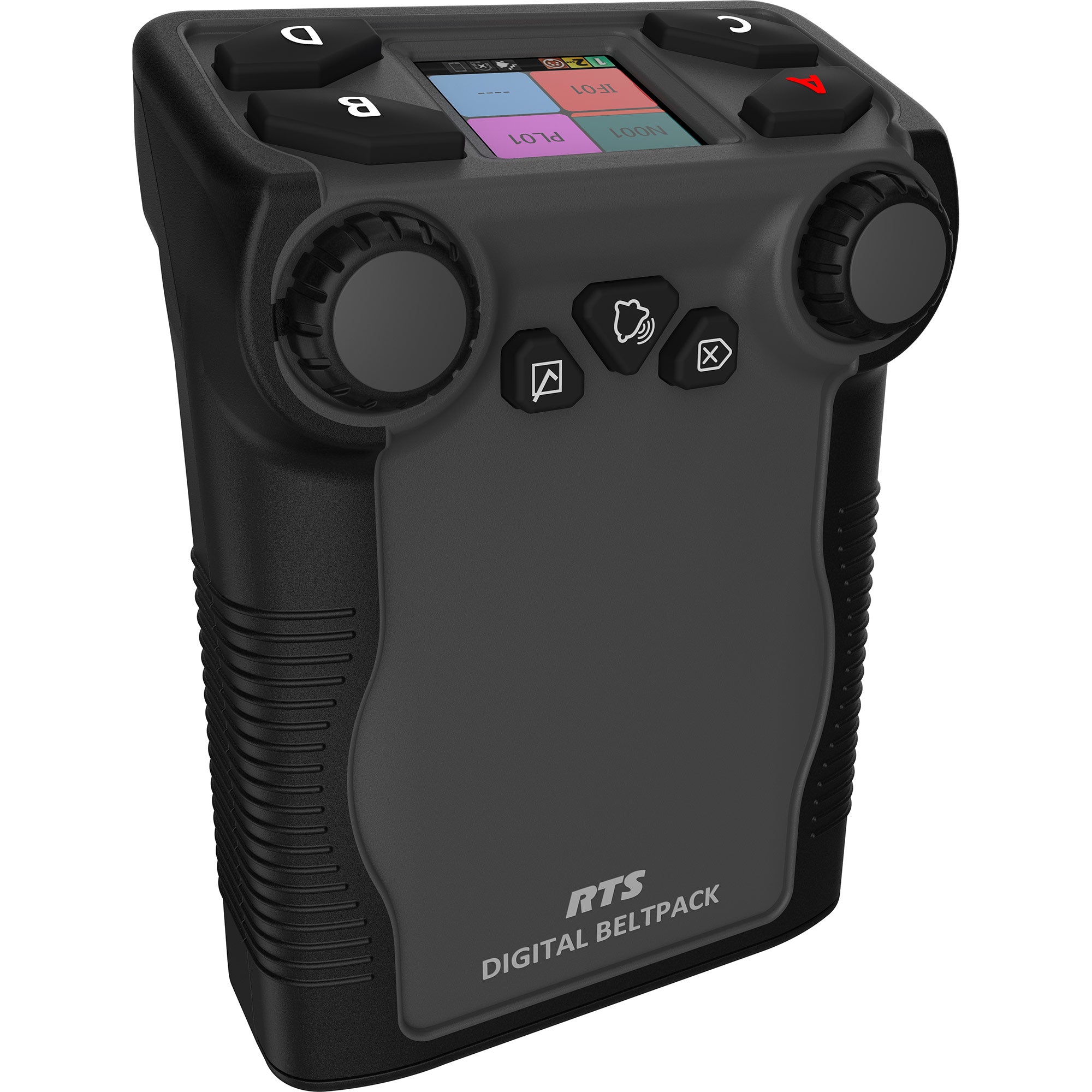

Patent-pending design aesthetics make DBP comfortable and easy to use. Though lightweight and compact, the unit's robust construction ensures it is ready for the toughest working environments. DBP's over-molded ergonomic volume knobs and rubber enclosure detailing provide extra grip and drop resistance, and it is IP53 rated for protection against dust and water spray.

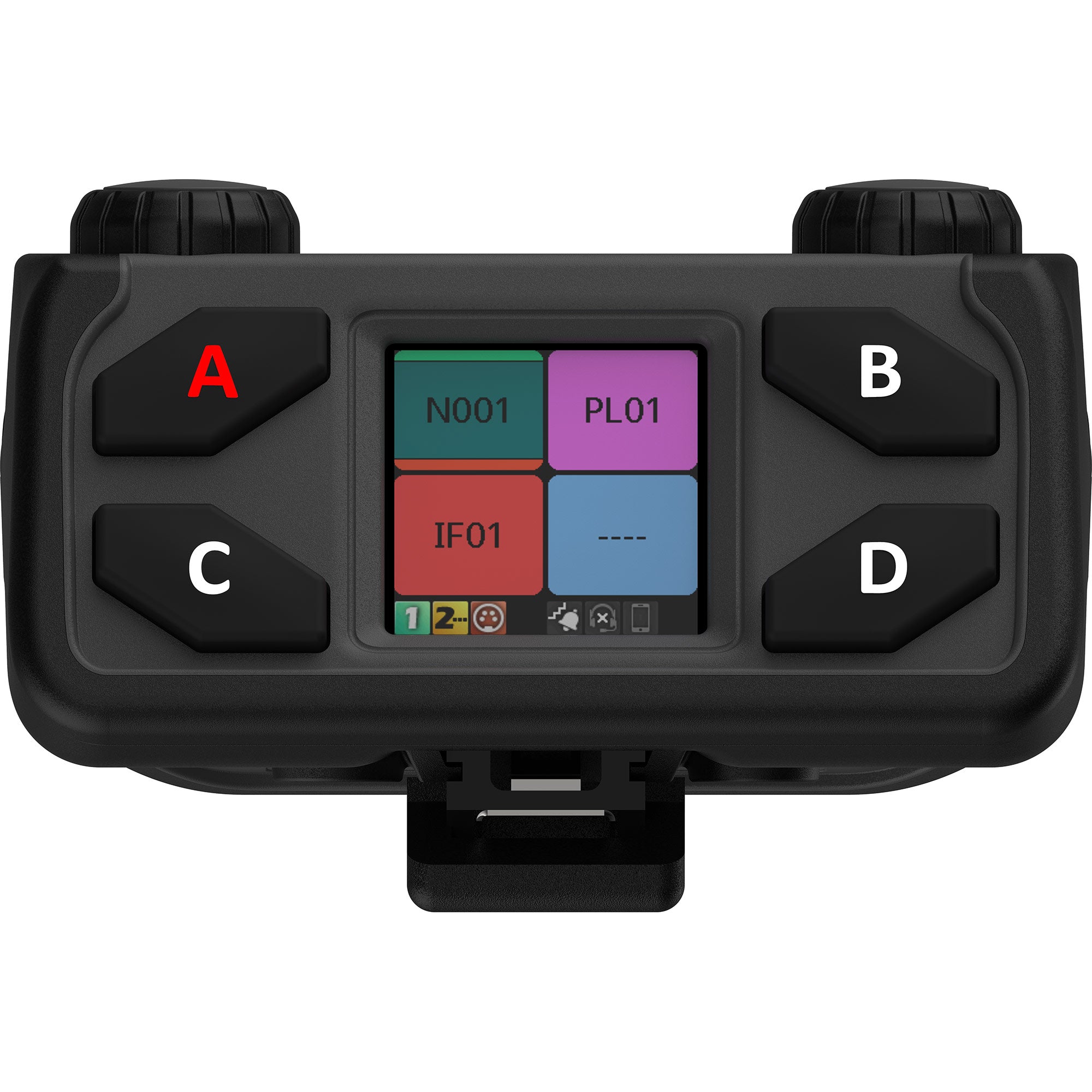

While its control layout will be immediately familiar to partyline users, DBP offers a user experience that will exceed expectations. Its intuitive icon-based menu navigation system is presented via a full-color, sunlight-readable TFT display with anti-reflective lens, making configuration quick yet precise for users of all levels, in any light conditions. TALK and LISTEN capability for up to four simultaneously active partylines (i.e. access to a pool of up to 16 partylines) is controlled via four large backlit channel buttons, which can also be assigned for dedicated resources such as relay control.

DBP's digital audio technology provides increased fidelity and a lower noise floor in comparison to analog. Both 3.5 mm TRRS and XLR connectors are provided for connecting headsets, with three different XLR options available: 4-pin female, 4-pin male and 5-pin female (supporting stereo audio for different feeds on the left and right headphones). Incoming CALL notifications are via audible alerts or haptic vibration.

DBP also supports Bluetooth audio connectivity to a headset, mobile phone or streaming device (via the recommended third-party dongles), making it easy to bring other kinds of devices into the system, and allowing the beltpack to serve as a compact "base station" on a desk while the user moves freely around the workplace.

More +

Product Specs

Power Supply
DC PoE 802.3af / 802.3at
Maximum Power Consumption 4.0W (PoE DC Input)
Environmental
Operating Temperature -4° F to 113° F (-20° C to 45° C) 5% to 90% relative humidity
Storage Temperature -4° F - 158° F (-20° C - 70° C) 15% to 90% relative humidity
Dimensions 5.51 in. (140mm) L x 3.94 in. (100mm) W x 2.64 in. (67mm) D
Weight 0.75 lbs (340 g)
Microphone Pre-Amplifier
XLR Input
Electret Mic Input -42.5 dBu Nominal
Dynamic Mic Input -50 dBu Nominal
Frequency Response 100 Hz to 16 kHz
3.5mm Input
Electret Mic Input -42.5 dBu Nominal
Frequency Response 100 Hz to 16 kHz
Headphone Amplifier
Frequency Response 100 Hz to 16 kHz
OMNEO Ports (PoE In and PoE Out)
Maximum Capacity 2 Full-duplex ports
Copper Connector Type RJ-45
Format IEEE 802.3 compliant
Copper Ethernet Speed 100/1000 Mbps
Bluetooth
Bluetooth Version 4.0
Approved dongles IO Gear GBU522
LM Technologies LM506
Range 15 ft (5 m)
Audio Codec SBC
TFT Display
Active Area 27.72 mm (wide) x 27.72 mm (high)
Dot Resolution 240 x 240 pixels
Color Resolution 16-bit (64K) RGB color
View Angle 80° (typical, all directions)
Protective Lens Anti-Glare / Anti-Reflective
Approvals CE Compliant
UL Certified
