RTS OMS Analog Plus - Digital Main Station for OMNEO Intercom (XLR4M)

  • Dale #:

    RTS-OMSPLUS4M
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

OMS (OMNEO Main Station) is the beginning of a new era of intercom systems called RTS Digital Partyline. This powerful single system bridges legacy analog partyline users who wish to migrate to digital functionality while using their existing equipment. Furthermore, OMS connects both wired and wi... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

OMS (OMNEO Main Station) is the beginning of a new era of intercom systems called RTS Digital Partyline. This powerful single system bridges legacy analog partyline users who wish to migrate to digital functionality while using their existing equipment. Furthermore, OMS connects both wired and wireless intercom products. OMS represents an incredibly versatile and easy-to-use solution for a wide range of applications - a communications multi-tool for theaters, houses of worship, industrial, broadcast and event venues.

Using OMNEO, OMS interconnects with our digital matrix products including keypanels, ROAMEO wireless and digital beltpacks. OMNEO is an architectural approach to connecting devices that need to exchange information such as audio content or device control (Dante and control). In addition, it can serve as a stand-alone base station for ROAMEO, RTS's digital wireless communication solution based upon DECT.

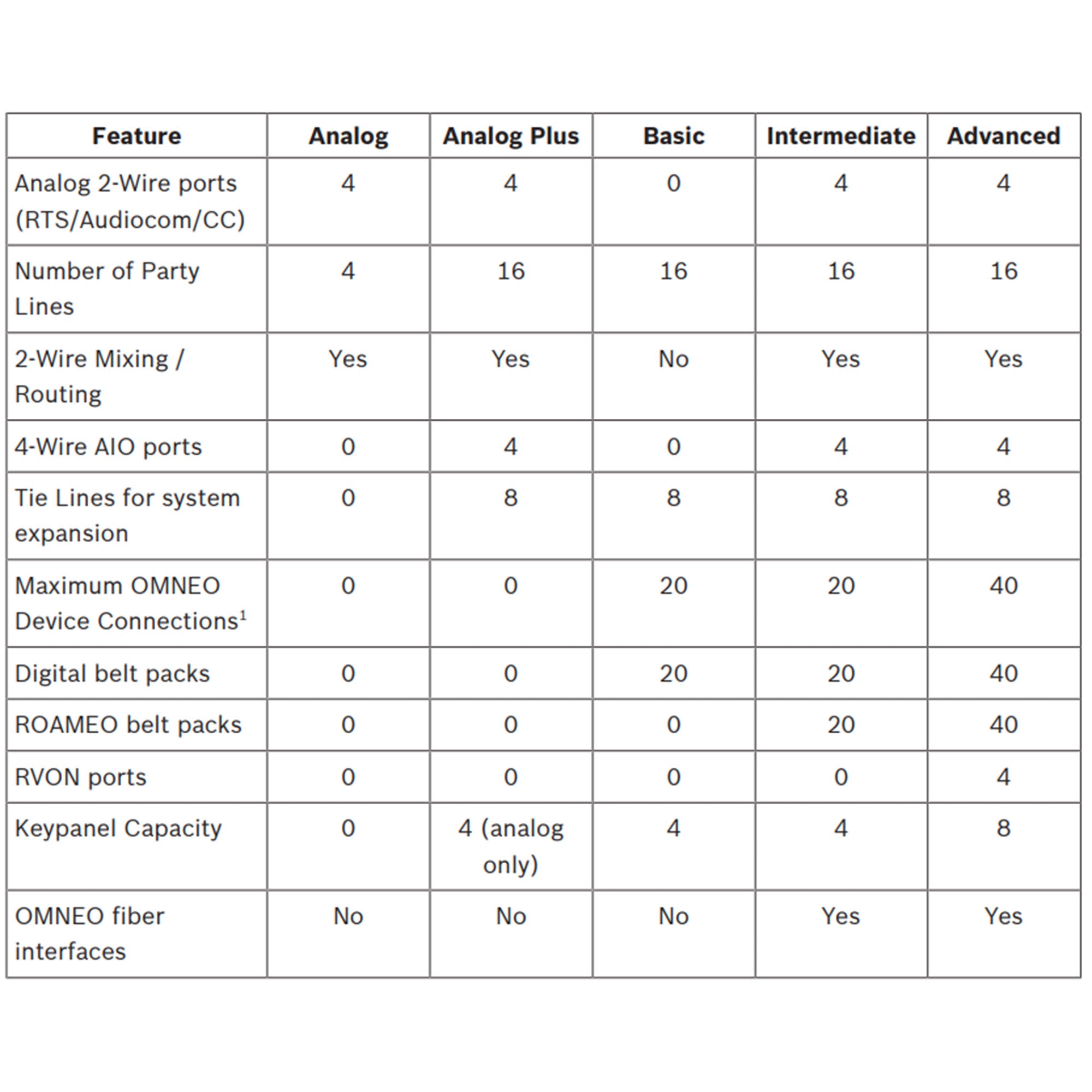

The OMS is available in five licensed models; Analog Only, Analog Plus, Basic, Intermediate and Advanced. The OMS allows for increased capacity and functionality as business needs grow.

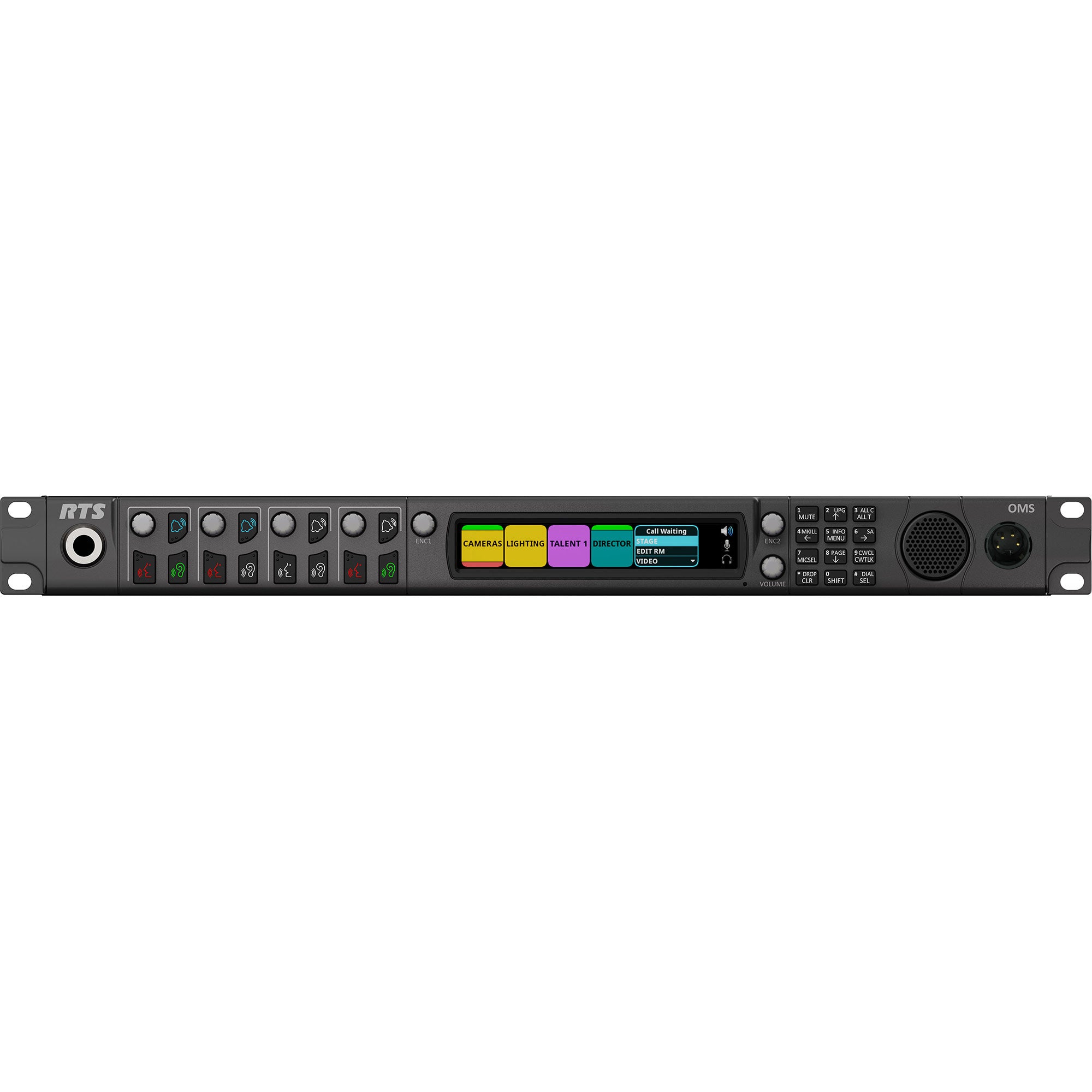

The OMS has the easy-to-use RTS digital icon-based front panel display, along with a simplified menu structure to allow system configuration and control from the front panel and display.

Features:

  • Supports up to 40 OMNEO or ROAMEO belt packs and up to 16 party lines. Ethernet connectivity through copper or fiber connections available.
  • Supports 4 ports of analog AIO 4-wire and 4 ports of analog 2-Wire (RTS / Audiocom / Clear-Com formats supported). Auto nulling capability (echo cancellation) available on 2-Wire interfaces.
  • Supports up to 8 keypanels (any mix of analog/OMNEO/RVON) depending upon product licensing. (Maximum 4 analog)
  • Up to 4 RVON channels available with the Advanced license for remote networking with other RVON capable equipment. G.711, G.729ab and G.722 codecs supported.
  • Includes stage announce output and additional OMNEO expansion audio ports reserved for connecting and networking with other OMS units. These expansion ports allow additional system capacity and partyline capability as part of a distributed system.

OMS Analog Plus Features:

  • Analog 2-Wire ports (RTS/Audiocom/CC): 4
  • Number of Party Lines: 16
  • 2-Wire Mixing / Routing
  • 4-Wire AIO Ports: 4
  • Tie Lines for System Expansion: 8
  • Maximum OMNEO Device Connections: 0
  • Maximum Digital Belt Packs: 0
  • Maximum ROAMEO Belt Packs: 0
  • Key Panel Capacity: 4 (analog only)

More +

Product Specs

Power Supply
Type Locking IEC 320 C14 style connector
AC Input 100 VAC - 240 VAC, 60/50 Hz, 0.46 A / 0.24 A
Maximum Power Consumption 30 W (based on 120 VAC)
Environmental
Operating Temperature 32° F - 113° F (0° C - 45° C)
Storage Temperature -4° F - 158° F (-20° C - 70° C)
Dimensions
19" w/ rack ears (17.56" w/o rack ears) W x 1.7" H x 7.72" D (including connectors)
(482.6 mm w/ rack ears [446.1 mm w/o rack ears] W x 43.7 mm H x 196.1 mm D [including connectors])
Weight
OMS chassis 5.29 lbs (2.4 kg)
AIO 4-Wire Analog
Connectors 4 RJ-45 connectors
Signal Format Differential RX/TX audio with differential RS-485 control data
Wiring Scheme Both 568B and USOC supported
A/D and D/A Resolution 24 bits
Max Input Level (balanced) +20 dBu w/o clipping
Digital Input Gain Programmable (-20 dB - +20 dB)
Input Frequency Response +1 dB/-3 dB from 100 Hz - +20 kHz
THD+N (8dBu input, unity gain) 0.025% non-weighted@1 kHz
under 0.075% non-weighted, 100 Hz - +20 kHz
Nominal Input Impedance under 22 k?
Nominal Output Level 8 dBu
Digital Output Gain Programmable (-20 dB - +20 dB)
Maximum Output Level (balanced) 20 dBu w/o clipping
Output Frequency Response +1 dB / -3 dB from 100 Hz - +20 kHz
Output Noise Floor -65 dBu
Crosstalk Isolation under 80 dB
PGM1 and PGM2 3-pin XLR-F
Signal Format Differential RX/TX audio
A/D Resolution 24 bits
Max Input Level (balanced) +20 dBu w/o clipping
Digital Input Gain Programmable (-20 dB - +20 dB)
Input Frequency Response +1 dB/-3 dB from 100 Hz - +20 kHz
THD+N (8dBu input, unity gain) 0.025% non-weighted@1 kHz
under 0.075% non-weighted, 100 Hz - +20 kHz
Nominal Input Impedance under 22 k?
Nominal Output Level 8 dBu
Digital Output Gain Programmable (-20 dB - +20 dB)
SA (Stage Announce) 3-pin XLR-M
Signal Format Differential RX/TX audio
D/A Resolution 24 bits
Max Input Level (balanced) +20 dBu w/o clipping
Digital Input Gain Programmable (-20 dB - +20 dB)
Maximum Output Level (balanced) 20 dBu w/o clipping
Output Frequency Response +1 dB / -3 dB from 100 Hz - +20 kHz
Output Noise Floor under -65 dBu
Crosstalk Isolation under 80 dB

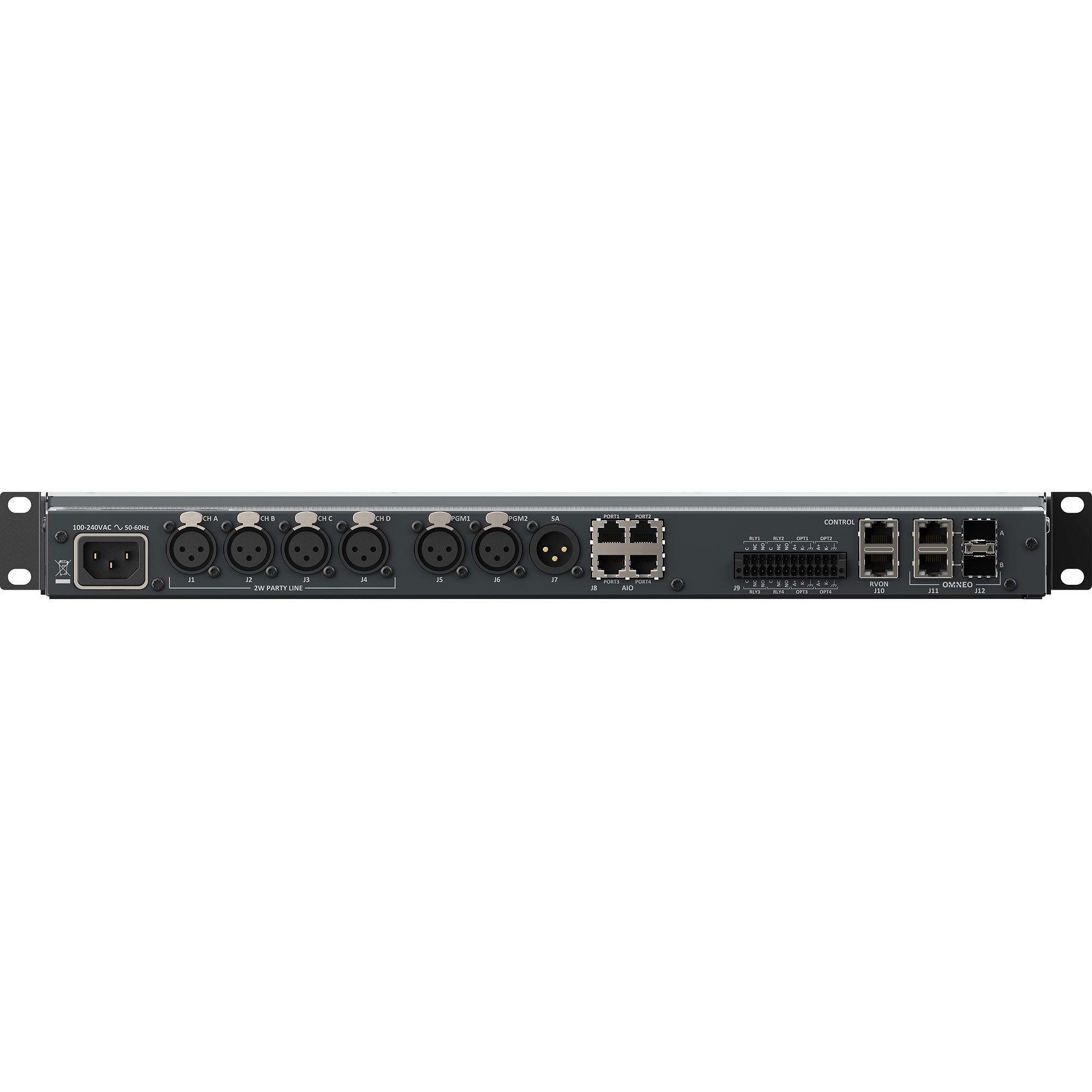

2-Wire Party Line Analog
Connector four 3-pin female XLR connectors
Modes/Port supported RTS CH1, RTS CH2
Audiocom (4 channel)
Clear-Com (4 channel)
4W/2W Echo Return Loss under 45 dB
Unbalanced Operation (RTS/Clear-Com)
Expected Termination Impedance 200 ?
Noise Contribution under -70 dBu
THD+N (w/ nominal input) under 0.5%, 200 Hz - 7.3 kHz
Bridging Impedance under 10 k?
CALL Signaling 20 kHz (RTS mode)
12 VDC (Clear-Com mode)
MIC KILL Signaling 24 kHz (RTS mode)
Balanced Operation (Audiocom)
Expected Termination Impedance 300 ?
Noise Contribution under -70 dBu
THD+N (with nominal input) under 0.5%, 200 Hz - 7.3 kHz
Bridging Impedance under 10 k?
CALL Signaling 20 kHz (Audiocom mode)
MIC KILL Signaling 24 kHz (Audiocom mode)
General Purpose Input/Output Ports
Relays (4 Relays)
Type SPDT
Contacts Common (C)
Normally Closed (NC)
Normally Open (NO)
Contact Rating 1A @ 48 VDC
Inputs (4 Inputs)
Type Optically Coupled
Input Voltage 5 VDC - 12 VDC on A+
Note A+ is internally pulled to +5 VDC. Connect Kto chassis ground to activate.
Control Port
Connector RJ-45
Format IEEE 802.3 compliant
Speed 10/100/1000 Mbps
LEDs Speed and Link/Activity
OMNEO Port (primary and secondary)
Maximum Capacity 48 Full-duplex ports
Copper Connector Type RJ-45
Format IEEE 802.3 compliant
Copper Ethernet Speed 100/1000 Mbps
LEDs Speed and Link/Activity
Fiber Connector Type Small Form
Factor Pluggable (SFP)
Multimode Finisar FTLF8519P3BNL
500m / 2.125Gbps
Single Mode Finisar FTLF1421P1BTL
15km / 2.67Gbps
Fiber Speed 100/1000Mbps
LEDs Speed and Link/Activity
LED Indicator Optical Signal Present
Note SFF-8472 fiber diagnostics supported
