RTW TMxCore - Professional Audio Metering Platform (32 Channel Dante)

Dante® 32 - 32-channel audio interface with:

• 32 Dante® AoIP network channels (2 x RJ-45, Primary/Secondary)

TMxCore is ideal for installations where performance, integration, and flexibility are key. It supports AI-driven tools like speech intelligibility metering and immersive audio analysis, while Network Display enables real-time metering in any standard web browser for remote monitoring or multi-screen setups. TMxCore can be integrated either into Dante® resp. RAVENNA®/AES67/ST 2110 AoIP networks or into classical analog and/ or digital environments.

With DisplayPort output for connection to any mo-nitor and its full compatibility with RTW’s renowned loudness and metering suite, the TMxCore offers maximum precision, adaptability, and reliability.

Hardware

• High-end, high-performance broadcast and pro audio mete-ring platform
• Network-ready with RAVENNA®, AES67, ST 2110, Dante®, and traditional I/O options
• 12 - 24 V DC power supply
• DisplayPort output for direct connection to any monitor
• Operation and device configuration via mouse or touch depending on connected monitor or display
• Dedicated network connection (LAN) for optimal configura-tion via WebApp or licensed use of Network Display and for control (OSC)
• Compact device in tabletop housing, can be mounted in a variety of ways using various 1/4" threads on the sides

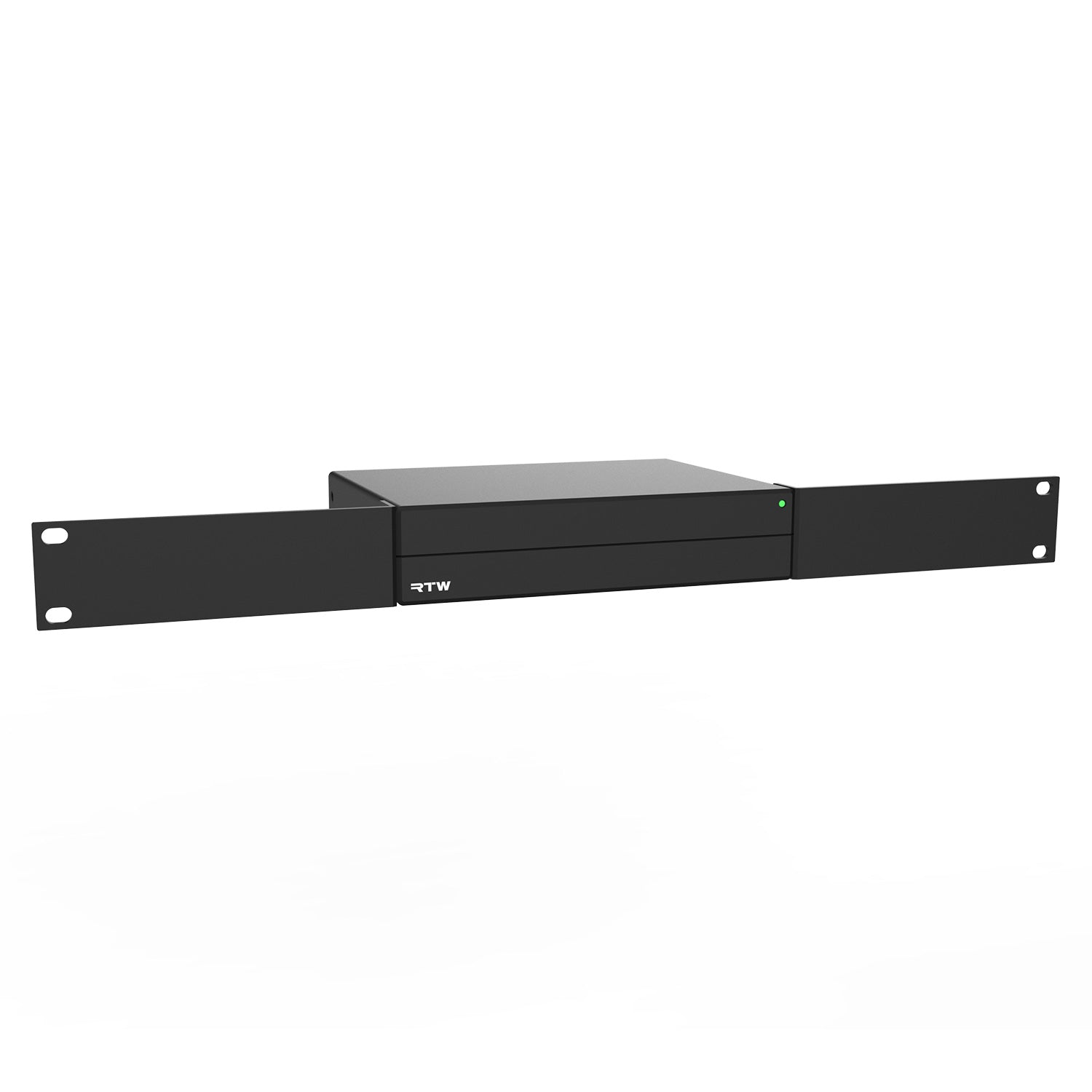

• 19-inch rack mounting possible using the supplied, optionally screw-on brackets

Software

• Extensive menu for system settings and creating presets
• Up to 31 presets selectable
• Applications and instruments freely scalable and positionable using View Editor
• Comprehensive suite with classic and new loudness and metering instruments
  • SW23010: Immersive audio metering for Surround and Immersive formats including 5.1 and 7.1.4 with Immersive Sound Analyzer, Matrix Correlator, Multi Correlator and Polarscope
  • SW23020: AI-assisted Speech Intelligibility meter for advanced speech intelligibility analysis
  • SW2303n: Network Display: Up to 3 network displays of the measured values can be accessed in any connected browser

Expandable Instruments
TMxCore is a high-performance platform that, in addition to its control functions, offers a comprehensive software package of proven and new metering and audio analysis tools with a wide range of settings options. Depending on the model, up to 16 or 32 input channels can be processed.

In addition to its compact design, the software equipment enables use in professional measurement environments where performance, integration, and flexibility are paramount. Additional instruments are available for special applications, which can be activated by purchasing and activating licenses.

Web-based Interface
The TMxCore is a network-based device. Therefore, it can be set up not only on the device itself but also via the LAN con-nection and the network, using the IP address of the device and a standard web browser in the same Dante® or RAVENNA® AoIP network. With the user interface (WebApp) displayed in the browser, you can also configure general settings remotely, create and manage up to 31 custom presets, create your own screen views, and much more. You can also control access to the device and restrict operation to certain functions to prevent unwanted use.
