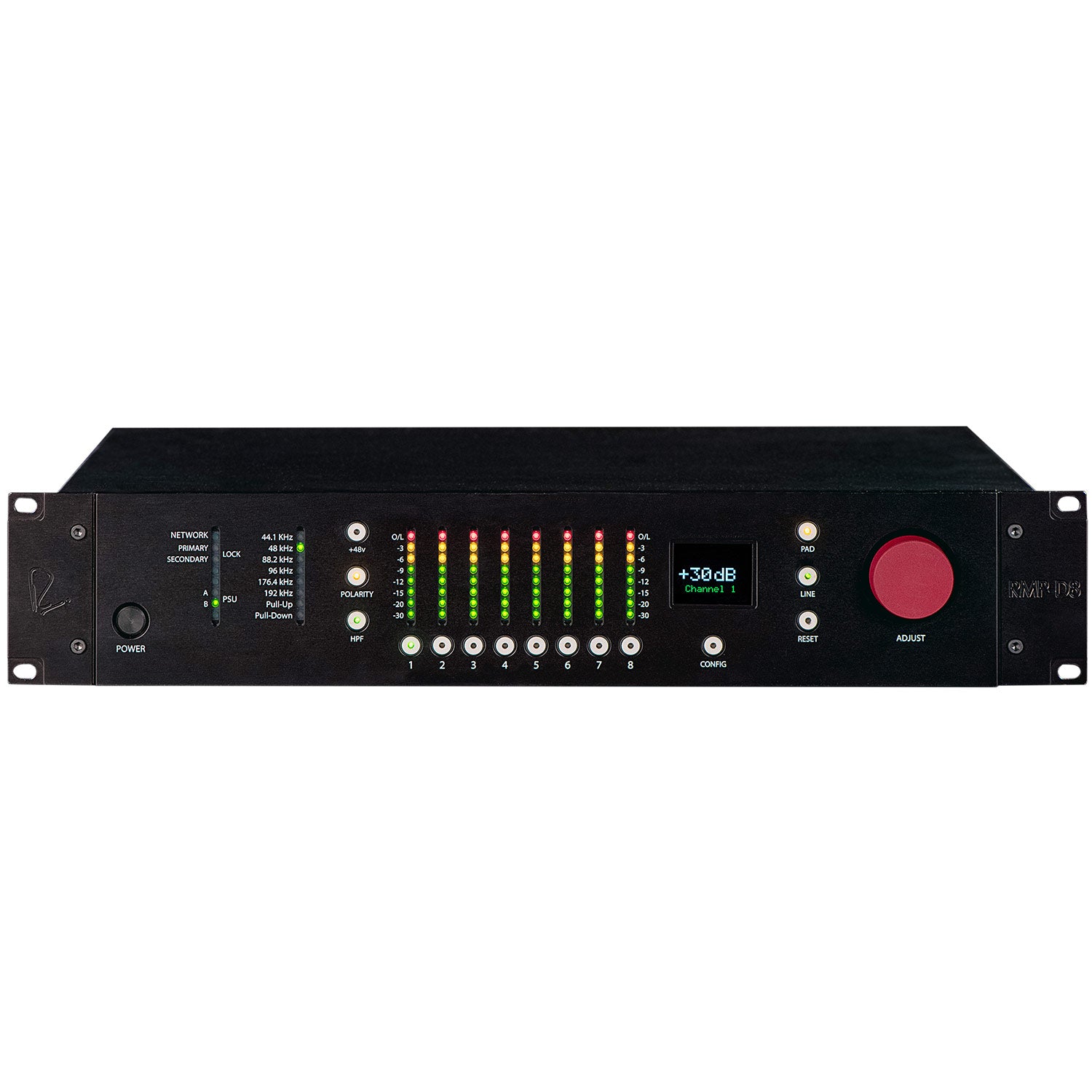

Rupert Neve Designs RMP-D8 Eight-Channel Dante Microphone Preamplifier

  • Dale #:

    RND-RMPD8
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The massive weight & tone of classic Rupert Neve Designs studio microphone preamps: now available for your stage. For the last decade, the world’s leading live sound engineers have chosen Rupert Neve Designs as some of the only analog equipment to accompany their digital touring rigs. With ma... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The massive weight & tone of classic Rupert Neve Designs studio microphone preamps: now available for your stage. For the last decade, the world’s leading live sound engineers have chosen Rupert Neve Designs as some of the only analog equipment to accompany their digital touring rigs. With mastering-grade 24-bit 192kHz converters and full Dante integration, the RMP-D8 finally offers the live sound world something that studios have always coveted: the sound of Rupert Neve Designs.

Classic Rupert Neve Tone

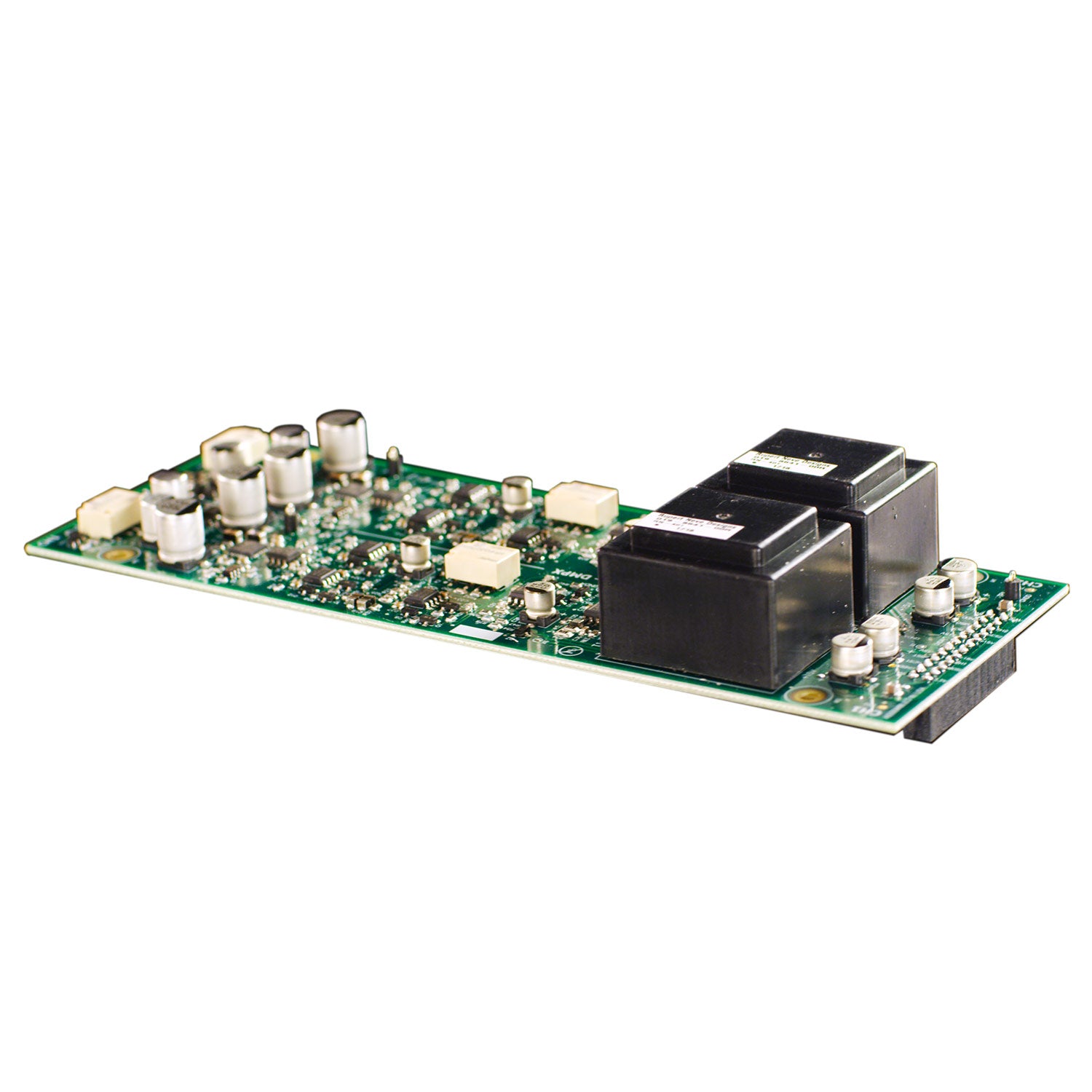

The heart of the RMP-D8 lies in the modular mic preamp cards featuring Mr. Rupert Neve’s custom transformer designs. Unlike other integrated Dante mic preamp designs that rely primarily on a single IC for gain & tone, each channel on the RMP-D8 has a fully-realized class-A microphone preamplifier feeding a custom transformer, maintaining the high standards of Rupert Neve Designs’ standalone preamplifiers.

Mastering-Grade Conversion
Where converters are often an afterthought on combination devices, the 24-bit/192kHz converters in the RMP-D8 are a product of years of careful listening. The precision­ controlled internal clocking and enhanced jitter reduction enable capture of the full breadth of performance from the exceptional mic preamplifiers; with the RMP-D8, there is no weak link in the audio path.

The New Dante Standard
The RMP-D8’s audio signal will work with any Dante device across settings ranging from concert halls to arenas, clubs, studios, houses of worship, and educational facilities.

All in all, the RMP-D8 brings the classic sound of Rupert Neve Designs into the Dante-connected world.

Features:

  • 8 mic / line inputs with 48V phantom power, polarity reverse, input pad & high-pass filter controls
  • 1dB-stepped class-A mic preamplifiers with 60dB gain and remote control capability
  • Custom Rupert Neve Designs transformers for the larger-than-life tone of Rupert’s classic modules
  • 24-bit / 192kHz Mastering-Grade Converters with precision-controlled internal clocking and enhanced jitter reduction

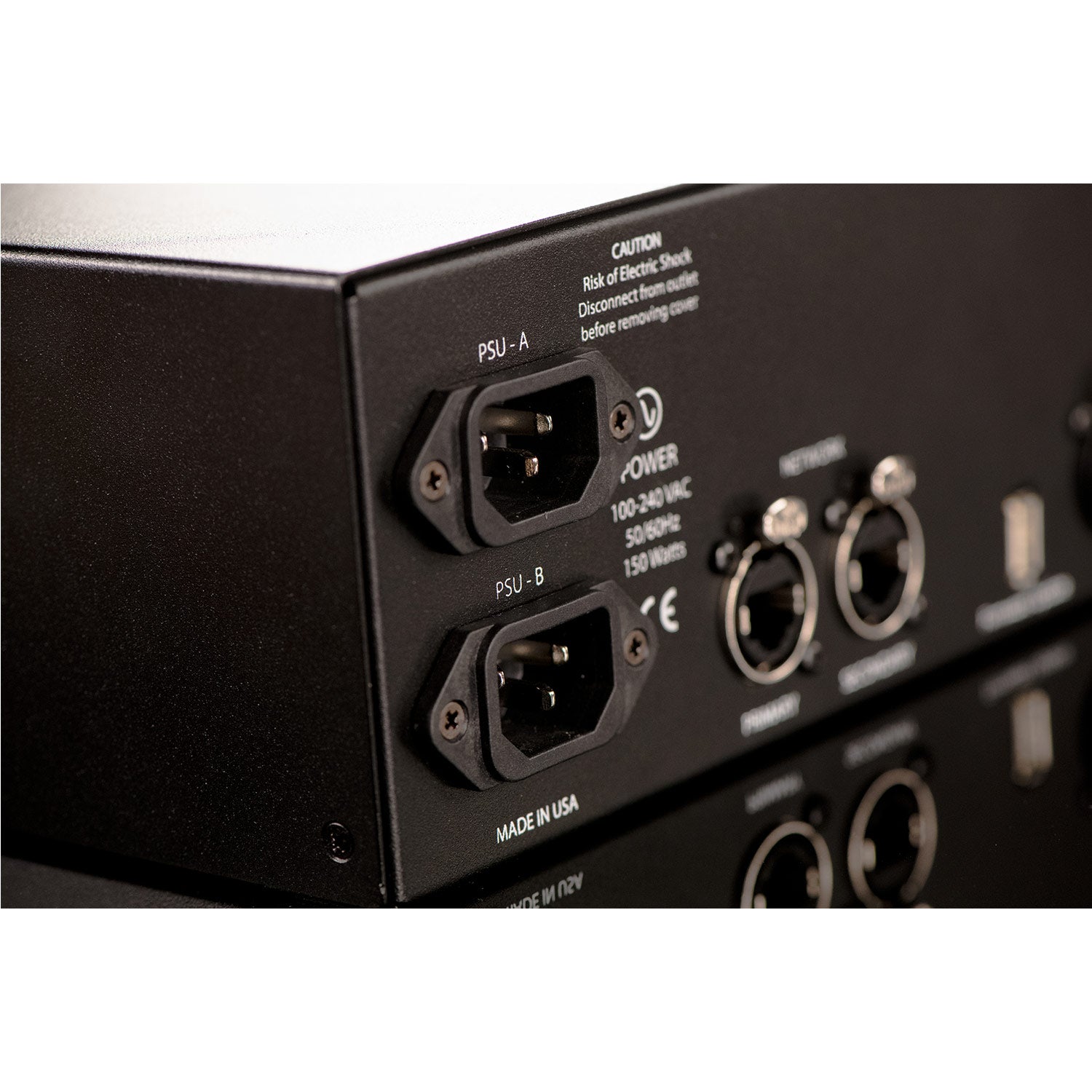

  • Ultra-reliable, redundant power supplies capable of operating anywhere in the world

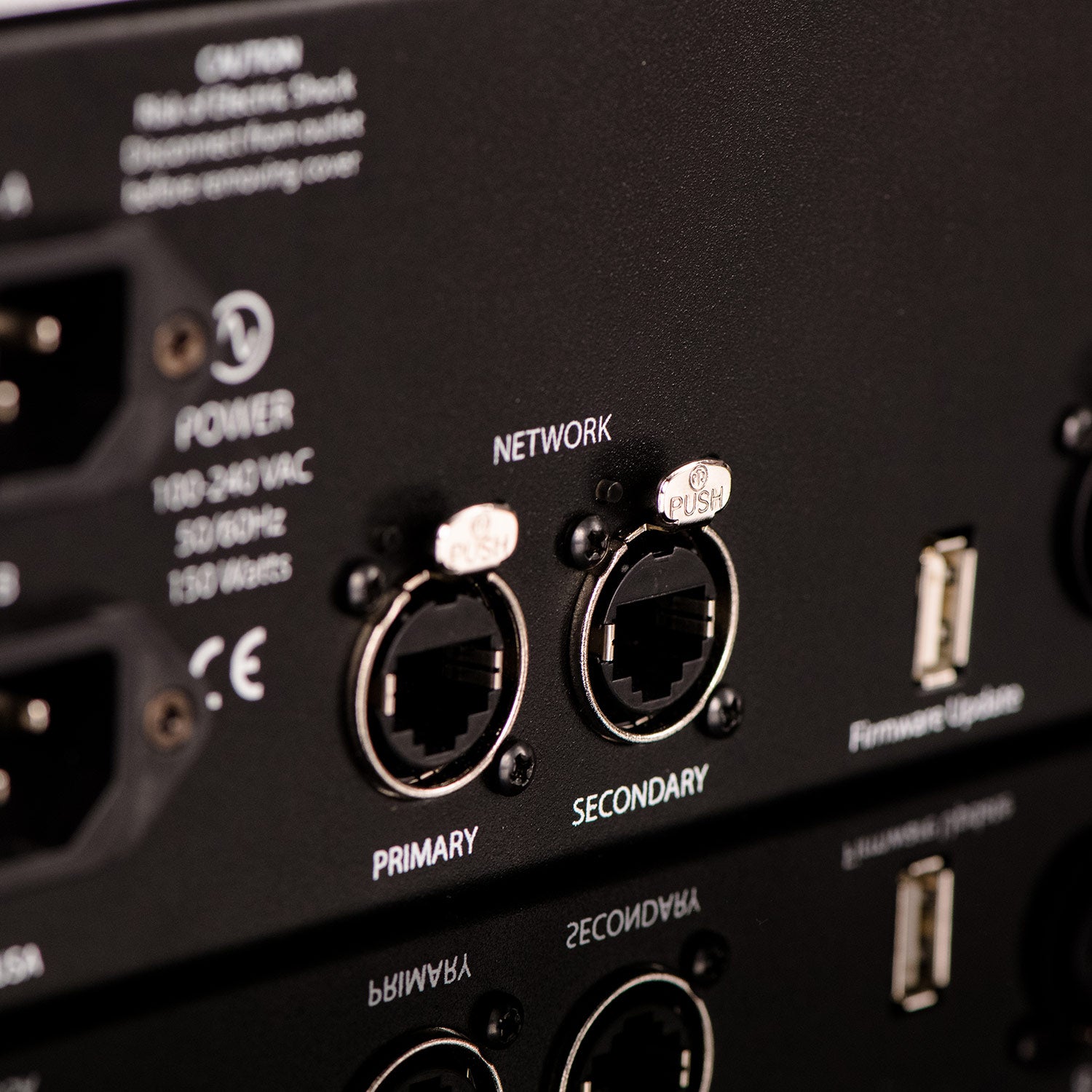

  • Dante integration with redundant network ports for reliability
  • Gain-compensated secondary output

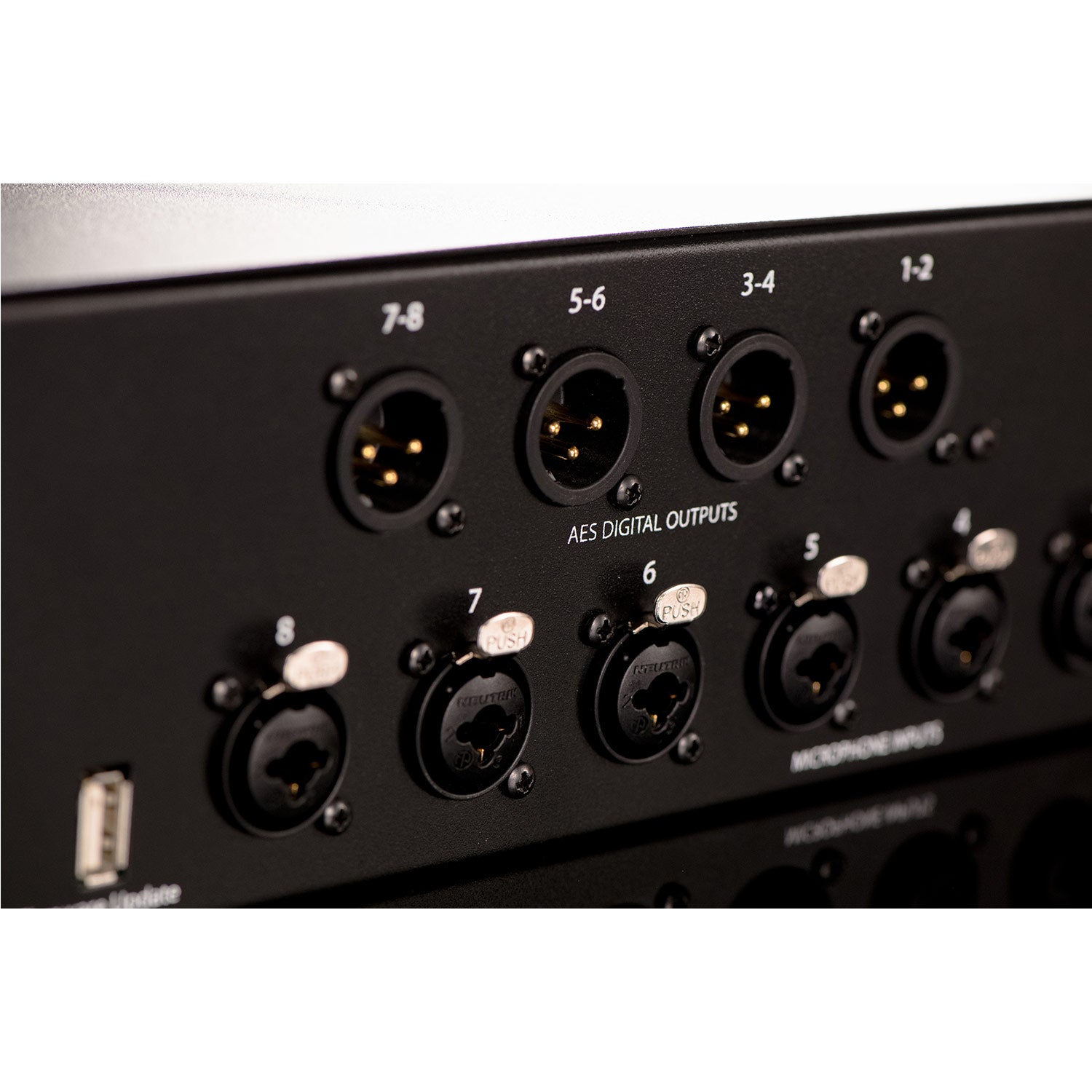

  • 4 dual-channel AES outputs on XLR connectors

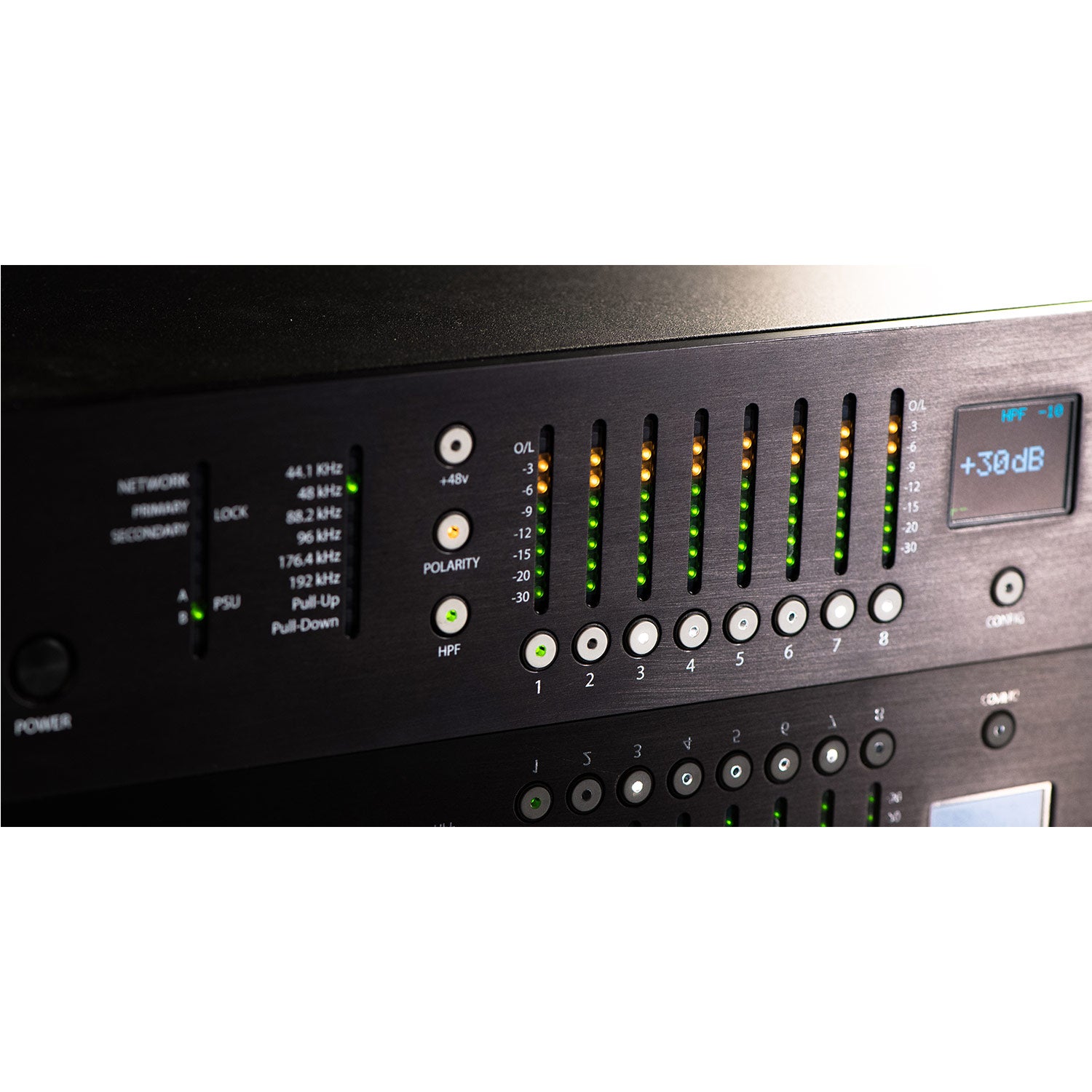

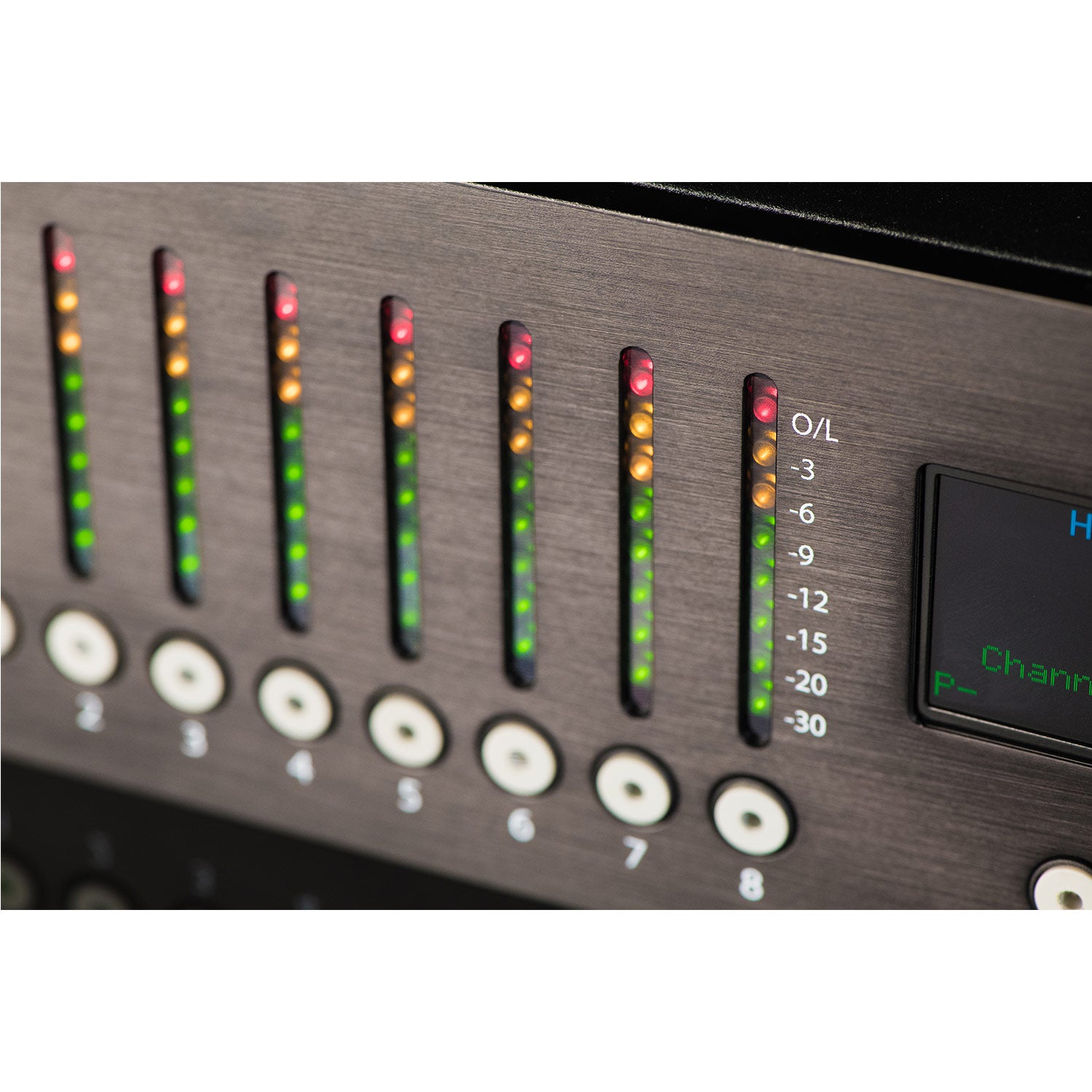

  • Large OLED display with full local control,· accurate and easy-to-read meters
  • Compatible with Dante Virtual Soundcard and Dante Via for direct computer integration
  • Reinforced steel chassis for enhanced RF shielding and rugged touring use in challenging environments

More +

Product Specs

Noise 150 Ohm Balanced Source, AES Output, 22 Hz to 22 kHz, un-weighted
At +60dB Gain -91 dBFS
At Unity Gain -110 dBFS
Frequency Response 0dBu , Unity Gain
50 Hz to 12.5 kHz -0.1 dB
20 Hz -0.5 dB
40 kHz +0.2 dB
Input Impedance 5.5 kOhms
Gain 0 to 60 dB in 1 dB steps
High Pass Filter -3dB @ 80 Hz, 12 dB/Octave Slope
Pad -10 dB
Signal to Noise Ratio 84.4 dB
Dynamic Range 110 dB
Maximum Input Level +25.5 dBu
Shipping Weight 17.6 lbs. (8 kg)
Shipping Dimensions 22” (W) x 18” (D) x 9” (H)
55.9 cm (W) x 45.7 cm (D) x 22.9 cm (H)
Power Cord Type IEC Standard 3 Pin 18AWG Latching Type
