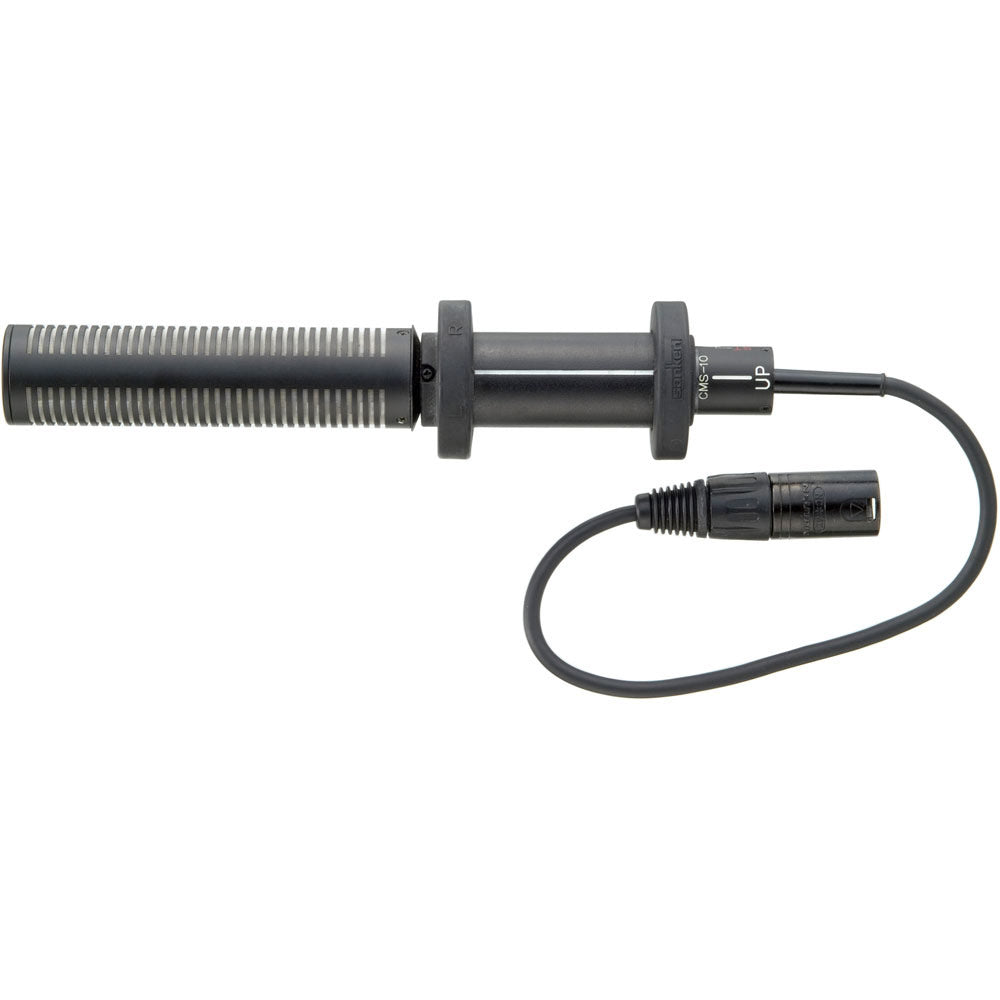

Sanken CMS-10 Switchable Mono/Stereo Shotgun Microphone


  • Dale #:

    SANK-CMS10
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The CMS-10 provides extremely high-resolution audio to match today’s advanced picture quality. This versatile microphone is switchable between a very sharp directional Mono and rich Stereo in environmental imaging. Stereo angle is 127°. Unlike conventional shotgun microphones, the CMS-10 uses a u... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The CMS-10 provides extremely high-resolution audio to match today’s advanced picture quality. This versatile microphone is switchable between a very sharp directional Mono and rich Stereo in environmental imaging. Stereo angle is 127°. Unlike conventional shotgun microphones, the CMS-10 uses a unique second-order pressure gradient design, enabling precision directional response through multiple cardioid elements in a front-back array. The capsules combine line microphone performance and second-order gradient response in a single compact system. Stereophonic localization depends primarily on signal accuracy and channel separation in the 400Hz to 3kHz range. Pattern control of the CMS-10 has been optimized in this range. Very low and very high frequency response has been optimized along the frontal axis so that the "target" on-axis sounds are clearly delineated.

Features

  • Switchable very sharp mono-shotgun and stereo mic
  • Very short length (210.5mm) and light weight (170g)
  • Using PPS diaphragm, it maintains high durability and quality even in high humidity environments.
  • By use of a specially designed suspension holder, it can isolate camera motor noise in camera mount use.
  • Basic design is M-S, but it includes M-S to L-R circuitry, and allows a direct L-R signal.

More +

Product Specs

DirectivityMono=Super Cardioid / lobar
Stereo=Hyper Cardioid
TransducerDC biased condenser
Frequency range150Hz - 20kHz
Sensitivity (nominal at 1kHz)STEREO 50mV/Pa ( -26dB,0dB=1V/Pa) , MONO 32mV/Pa ( -30dB,0dB=1V/Pa)
Equivalent noise level (A-weighted)STEREO 20dB-A , MONO 22dB-A
Max SPL (1% THD)120dB SPL
Output impedance at 1KHz240 ohms
Powering+48±4V phantom X 2ch
Current consumptionless than 2.5mA/ch
Weight170g
Dimensions211mm X 27.8mm (mesh part diameter)
26.5mm (suspension cylinder diameter)
19mm (grip diameter)
Surface finishmatte black
ConnectorCable direct out from the microphone, 30cm, XLR-5M
