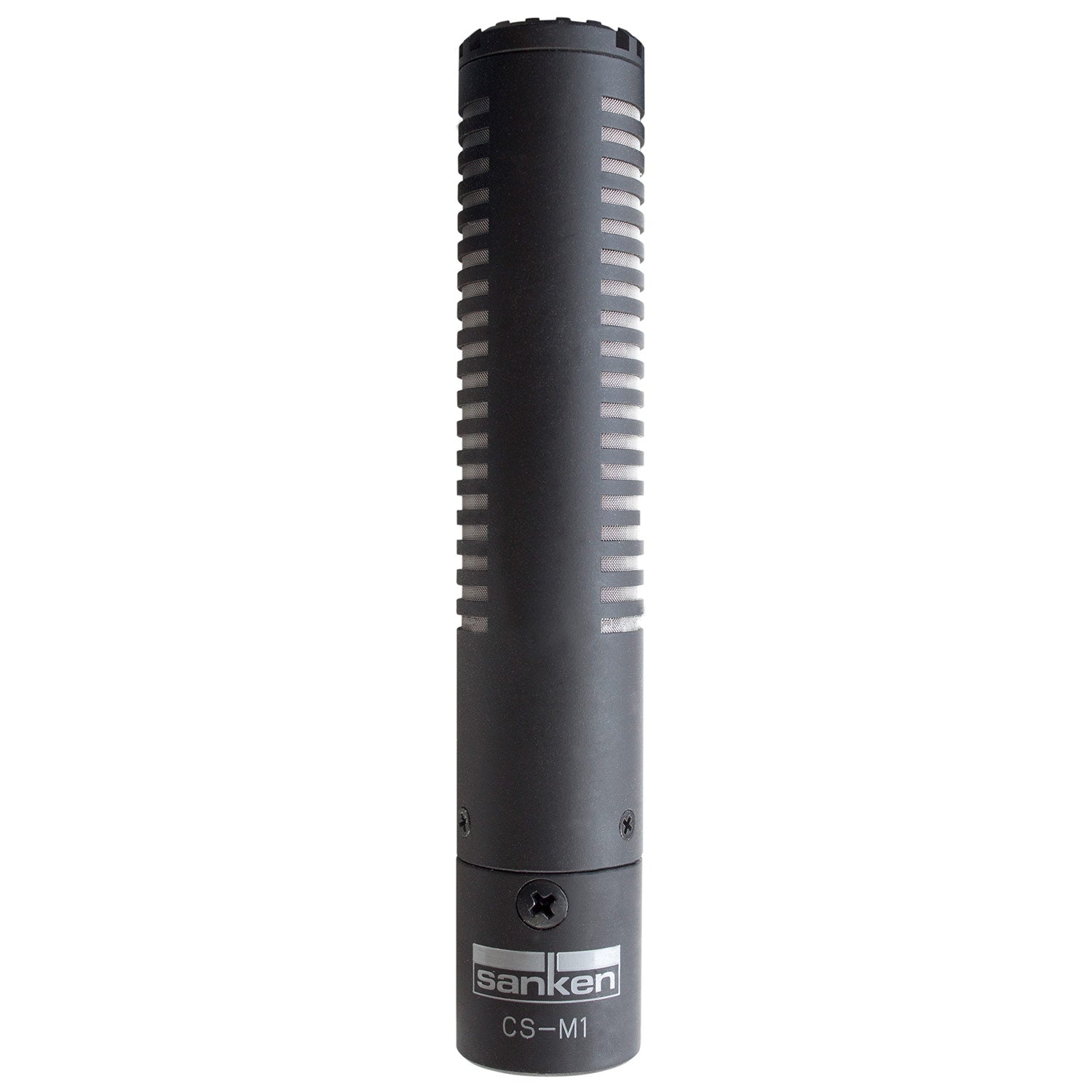

Sanken CS-M1 Chromatic Series Short Shotgun Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The CS-M1's lightweight, rugged design and unique components assure optimum resistance to humidity and adverse temperature changes.
The mic is especially suited to shoots where tight patterns and premium sound are the goal. It can be camera mounted without interfering with even a short lens, yet still provide the quality of audio demanded by today's professionals, all at an affordable price.
Features:
- Unique Sanken lightweight design
- Sharp directivity
- Clear sound
- Short 4" length, lightweight (less than 2oz) for easy operation
- Ideal for boom pole operation on drama and film shoots
- Ideal for mounting on cameras with short lens
- Suitable for ENG applications
- Standard 19 mm diameter
- Advanced RFI rejection
- Wide 70Hz - 20kHz frequency range
- Rugged and dependable design
| Transducer | Back Electret Condenser |

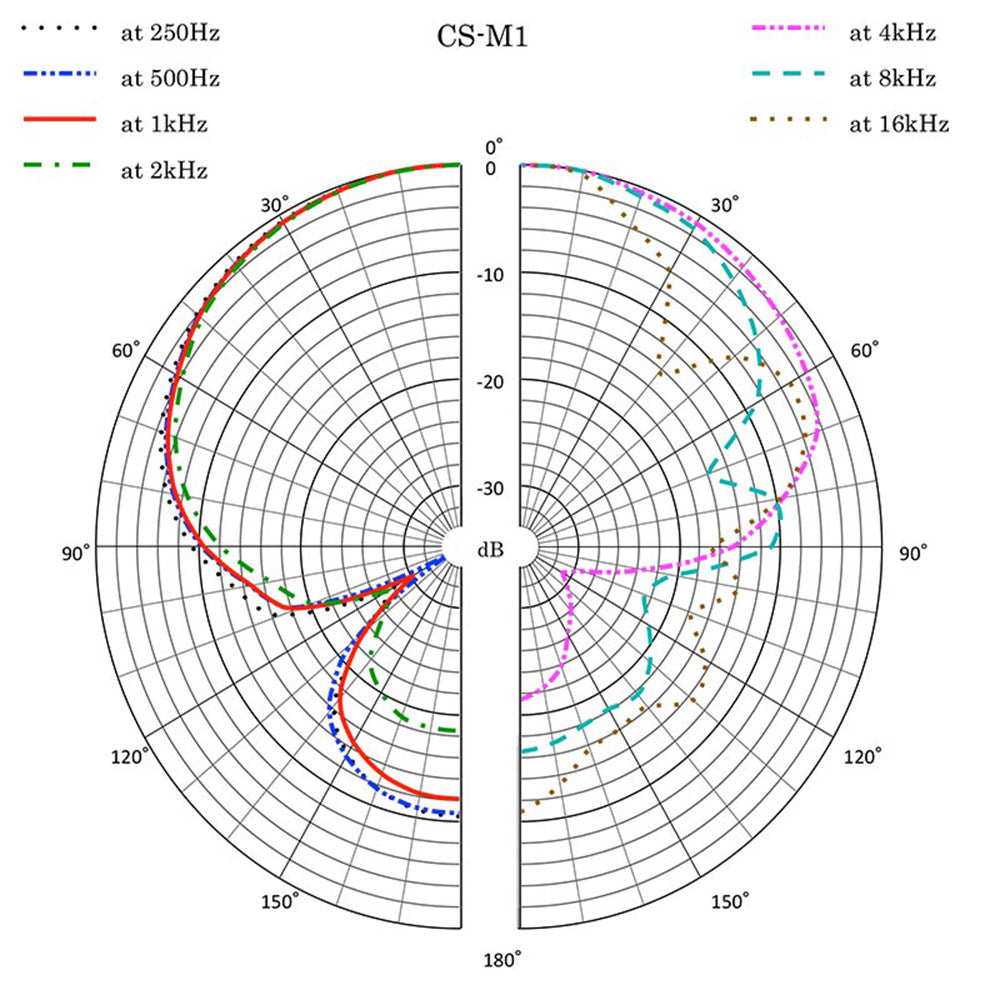

| Directivity | Super Cardioid / lobar |

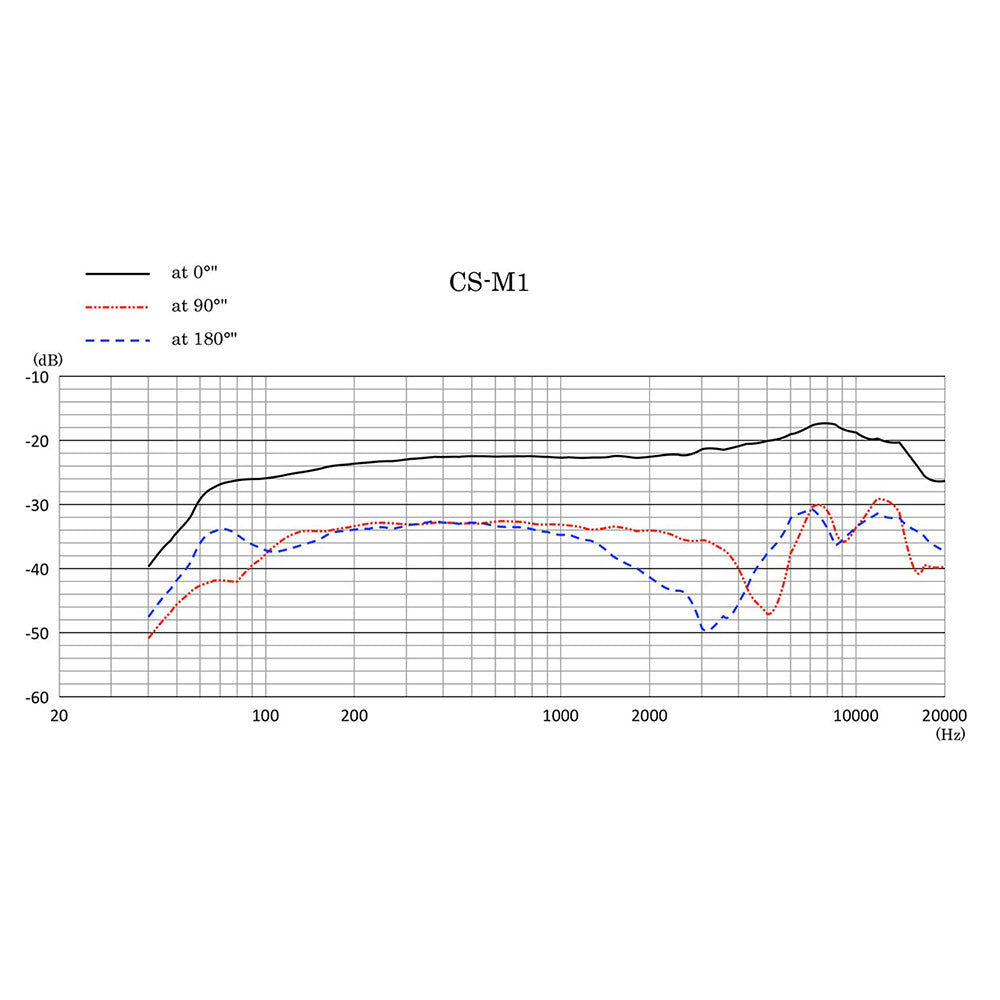

| Frequency response | (70Hz Ð 20kHz) |
| Sensitivity (at 1kHz) | 79mV/Pa (-22dB, 0dB=1V/Pa) |
| Equivalent noise level (A weighted) | 16dB SPL |
| Max SPL (1% THD) | 137dB SPL |
| Output impedance( 1kHz ) | 140 ohms |
| Powering | +48V±4V Phantom Powering |
| Current consumption | 4mA |
| Weight | 1.9oz (55g) |
| Dimensions | 4.1_ (103mm) length 0.75_ (19mm) diam. |
| Surface finish | MatteÊBlack |
| Connector | XLR-3-12C(M) equivalent 1: GND, 2: Hot, 3: Cold |
