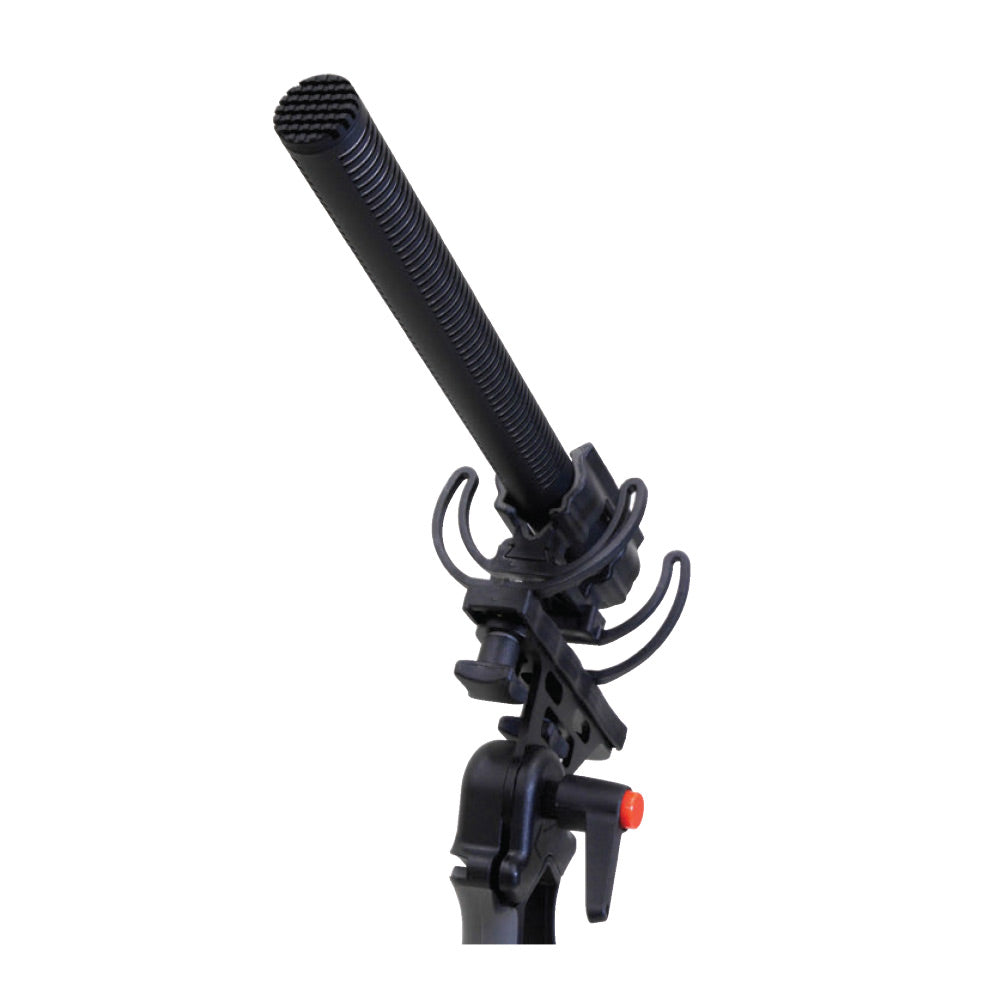

Sanken CSR-2 Long Reach Shotgun Microphone (with Switchable Rear Rejection)



Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us
Dale #:SANK-CSR2

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The Sanken CSR-2 combines the long acoustic tube and proprietary rectangular capsule design of the CS-2 for super-sharp directivity with a unique switchable rejection of the mid and low frequency range on the side and rear. In the off position, the switch provides a wider image and a warmer room tone. This microphone rewards you with the best of both worlds.

    Features:

    • Exceptionally narrow directivity with optimum reach
    • Suppresses background sensitivity using Sanken's exclusive rear cancellation technology
    • Proprietary rectangular capsule design for compact, super-sharp directivity
    • Flat frequency response 70Hz to 20 kHz
    • Easy to handle and operate using 48V phantom power

    Thanks to Sanken's original square capsule design which optimizes space efficiency in a long acoustic tube, the CSR-2 is a unique microphone that focuses on the sound source, even at some distance.

    This high degree of directionality and flexibility is accomplished by using line microphone technology for narrow-angle directivity in the frequency range and canceling background sensitivity with two capsules in the low-mid frequency range.

    This mic delivers super sharp directivity over a wide frequency range, making it the ideal microphone to capture targeted sounds in location situations with noisy surrounding ambience or in tight spaces with unwanted wall reflections. In order to reduce the sensitivity at 90 degrees off-axis, the front capsule pattern is super-cardioid. It captures the low-mid frequencies that have a longer wave-length than the acoustic tube in the rear of the microphone, with no line microphone effects.

    In addition, the CSR-2 uses a second-order pressure gradient array, comprised of two microphone capsules. Their output is added to the line (front) microphone signal when the rear rejection switch is in the €œon€ position to suppress low frequency background sensitivity.

    A rich, natural sound makes the CSR-2 ideal for a wide range of uses, such as outdoor location sound, public interviews, sports, drama, variety shows, and much more.

  • Directivity Mid-High: lobar
    Mid-Low: Rear rejection by second gradient two capsules
    Transducer Back electret condenser x 3
    Frequency range 70Hz - 18kHz
    Sensitivity
    (nominal at 1kHz)
    71mV/Pa (-23dB,0dB=1V/Pa)
    Equivalent noise level
    (A-weighted)
    Rear rejection ON: 16dB SPL
    Rear rejection OFF:15dB SPL
    Max SPL (1% THD) 123dB SPL
    Output impedance
    at 1KHz
    150 ohms
    Powering +48±4V phantom
    Current consumption 4.5mA
    Weight 170g
    Dimensions 250mm x 22mm (diameter)
    Surface finish matte black
    Connector XLR-3M
    Included Accessories WM-R2 urethane wind screen
    instruction manual
    measurement data
    warranty card
    vinyl case
