DALE SKU # SANK-CSS5

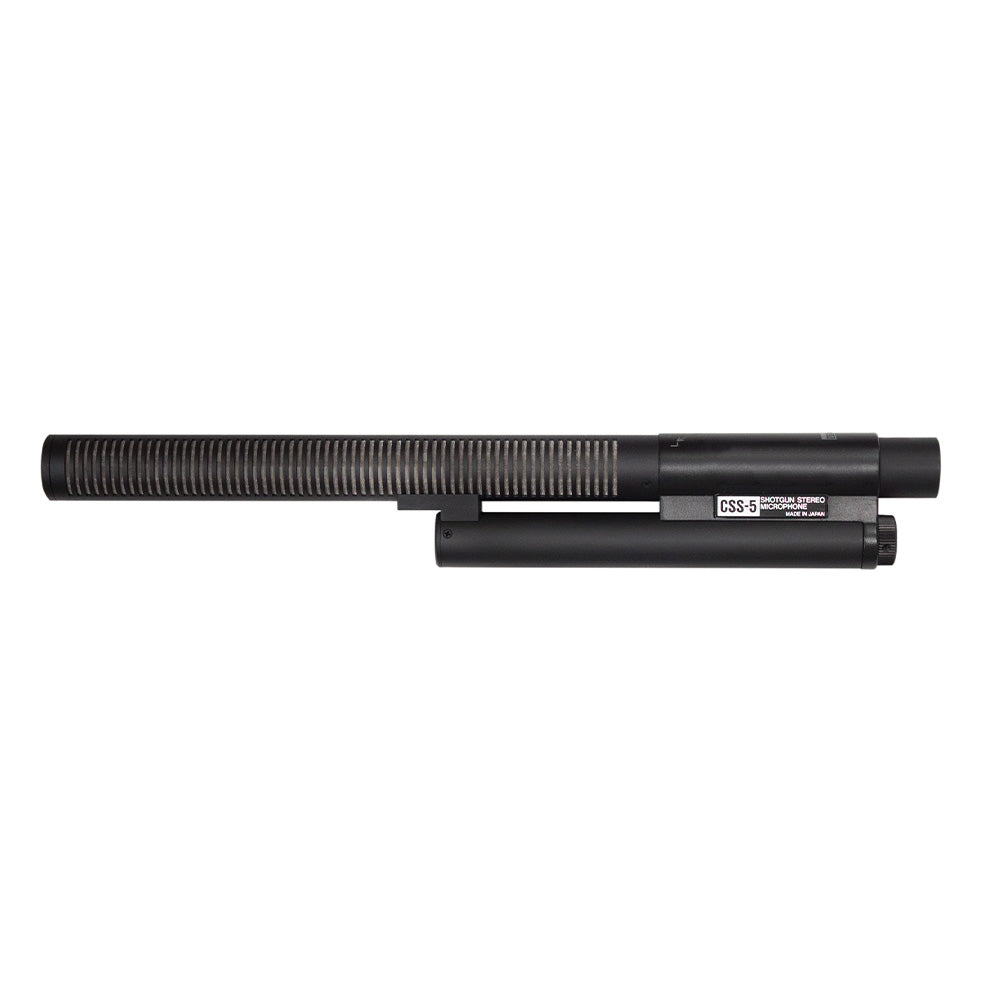

Sanken CSS-5 - Mono/Stereo Long Reach Shotgun Microphone

Sale price$2,300.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The Ultimate Stereo Shotgun Mic with 5 Capsules and 3 Selectable Modes - Mono/Stereo/Wide! With 3 selectable modes (mono, stereo and wide) for a wide array of applications in location and studio recording. Mono mode provides high directivity over a wide frequencey spectrum, especially below 500Hz. Excellent for noisy environments. Low proximity effect.

    The remarkable performance of the CSS-5 is based on an array of five new directional condenser elements, with new PPS (Poly-Phenylene-Sulfide) diaphragms to provide optimum humidity/temperature stability. Developed in conjunction with NHK, the CSS-5 is equally responsive in the horizontal and vertical planes with high sensitivity, wide frequency response and excellent dynamic range.

    Features:

    • Unique 5 capsule design
    • Superb rear rejection at 180 degrees even in low frequencies
    • MONO-STEREO compatibility.-Mono and phantom center have the same sound characteristics
    • Wide 100Hz-15kHz frequency response
    • Mono - For sharp shotgun directivity and excellent low frequency definition
    • Normal - For precise directional hyper-cardioid focus with accurate stereo localization
    • Wide - Expanded 140 degree stereo image for cinematic ambiance and stereo sound effects
    • Uses standard accessories
    • Dual 48 volt phantom power required
    • Standard XLR5 connector


    Record Targeted Sounds Precisely with the Added Option of Capturing Realistic Stereophonic Perspectives.
    For episodic television, film/video documentaries. and major broadcast events. it has become desirable to record targeted sounds precisely, with the added option of capturing realistic stereophonic perspectives. In many cases, multiple microphone configurations impair field mobility and sonic consistency. Stereophonic localization depends primarily on signal accuracy and channel separation in the 400Hz to 3kHz range. Pattern control of the CSS-5 has been optimized in this range. Very low and very high frequency response has been optimized along the frontal axis so that the "target" on-axis sounds are clearly delineated. The result in playback accentuates the frontal image, with side signals positioned slightly behind.

    In the MONO mode, sharp directivity is maintained over a wide frequency range for the aimed frontal sound sources, using the combination of a second gradient microphone and a line microphone. It is significant that the CSS-5 picks up the chosen sound source very clearly even in a noisy ambient situation or in a long reverberation space.

    In the NORMAL mode, the CSS-5 clearly picks up the targeted sound as well as extremely accurate stereo localization. STEREO angle is approx. 115°

    The WIDE mode is designed for stereo recording of sound effects and environmental information where dialogue will be dubbed in at a later date. This mode allows a wider 140 degree stereo width.

    In stereo recordings, the frequency response of the MONO summed output often exhibits interference, or "comb filtering." This phenomenon is caused by phase differences between the Left and Right signals. This does not occur in single point recording, either X-Y or M-S, but does happen with spaced - AB - microphone stereo recording because of the time intervals between the two capsules. In the CSS-5, the three-capsule line array is for frontal pickup, with its elements arranged vertically along the same axis, so Mono / Stereo compatibility is superb.

    Transducer

    DC biased condenser

    Directivity

    High directivity / 2-ch stereo

    Frequency response

    100Hz Ð 15kHz

    Sensitivity (at 1kHz)

    MONO 35mV/Pa ( -29dB,0dB=1V/Pa)
    NOR 45mV/Pa ( -27dB,0dB=1V/Pa)
    WIDE 71mV/Pa ( -23dB,0dB=1V/Pa)

    Equivalent noise level (A weighted)

    18dB-A

    Max SPL (1% THD, at 1kHz)

    120dB SPL

    Output impedance( 1kHz )

    240 ohms

    Powering

    +48±4V phantomÊX 2ch

    Stereo Angle

    NOR 120¡, WIDE 140¡

    Current consumption

    less than 2.5mA ( Lch )
    less than 1.6mA ( Rch )

    Weight

    8.8 oz (250 g)

    Dimensions

    300mm X 45mm (11.8_x1.8_)
    22.5mm (.89_) (slit part diameter)
    19mm (.74_) (grip diameter)

    Surface finish

    MatteÊBlack

    Connector

    XLR-5M
    1: GND 2: Lch Hot 3: Lch Cold
    4: Rch Hot 5: Rch Cold
