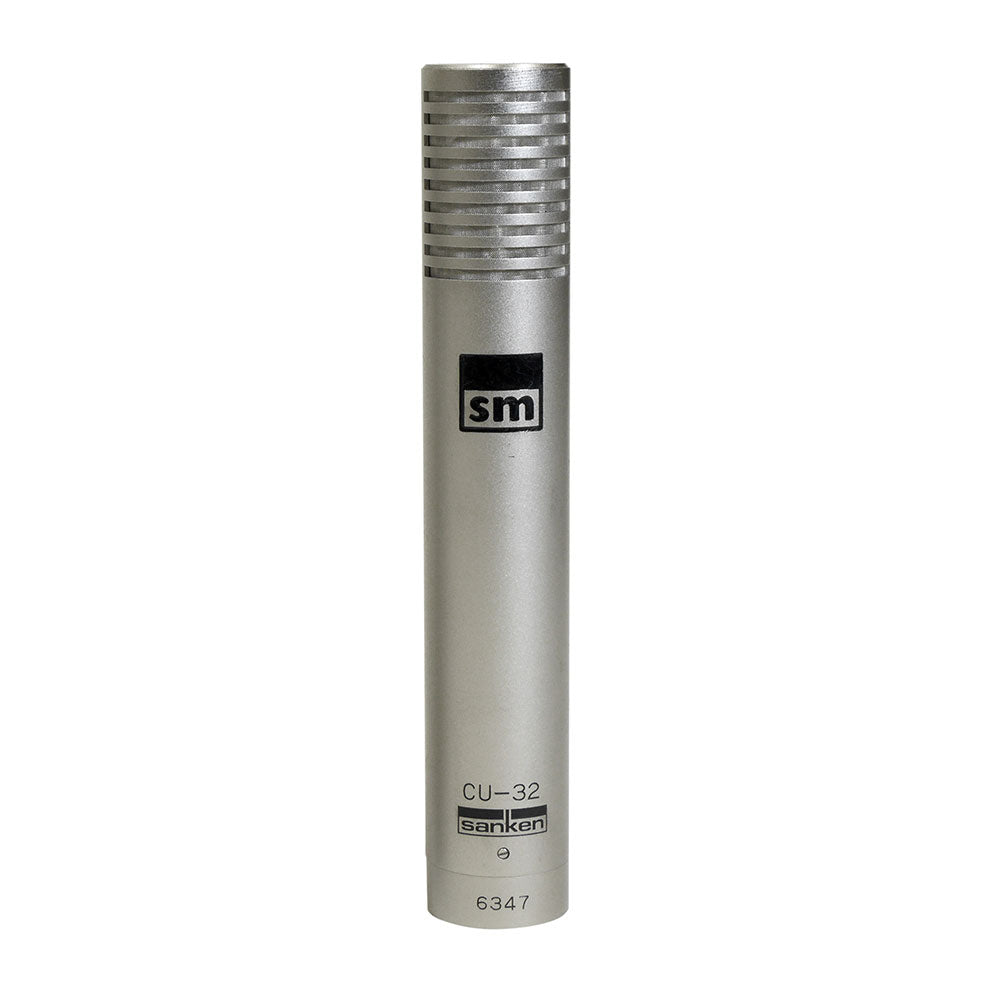

Sanken CU-32 Premium Small Diaphragm Cardioid Condenser Microphone


  • Dale #:

    SANK-CU32
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The Sanken CU-32 is a small, lightweight microphone for all recording applications. Delivering a natural, uncolored sound, it features Sanken’s original Push-Pull type capsule design, which gives it increased sensitivity. In addition to a high maximum SPL of 148dB at 1%THD, it offers a very flat... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Sanken CU-32 is a small, lightweight microphone for all recording applications. Delivering a natural, uncolored sound, it features Sanken’s original Push-Pull type capsule design, which gives it increased sensitivity.

In addition to a high maximum SPL of 148dB at 1%THD, it offers a very flat frequency response ( 20Hz to 18,000Hz ).

Unique to Sanken microphones, this mic comes with a light, strong, corrosion-free one-micron titaniumdiaphragm, therefore ensuring the mic is immune to changes in temperature and humidity. And you can choose from the on-axis CU-31 or the CU-32 with a side-firing pattern.

Consequently these are very practical and proven microphones. The CU-32 is especially renowned for its quality and reliability.

Features:

  • Compact, High-Resolution, Hi-Input
  • 6dB higher sensitivity than conventional microphones
  • Side Firing Pattern
  • Titanium diaphragm immune to humidity and temperature fluctuation
  • Smooth cardioid polar pattern
  • Transparent and distortion-free
  • Totally flat frequency response


Applications:

  • Acoustic Guitar
  • Background or Chorus Vocals
  • Brass and Woodwind
  • Drums Close Mic
  • Electric/Bass Guitar Amps
  • Orchestra Solo
  • Overheads
  • Percussion
  • Piano
  • Sound Design, Effects and ATMOS
  • Strings

More +

Product Specs

Transducer DC biased condenser
Directivity Cardioid
Frequency response 20Hz – 18kHz
Sensitivity 3.5mV/Pa(-49dB, 0dB=1V/Pa)
Equivalent noise level (IEC) 19dB-A
Max SPL(1% THD) 148dB SPL
Output impedance( 1kHz ) 200 ohms
Powering +48V±4V phantom
Current consumption Less than 1.4mA
Weight 125g / 4.4oz
Dimensions CU-31: 116mm x 20.6mm (D)
4.6in x 0.8in (D) CU-32: 121mm x 20.6mm (D)
4.8in x 0.8in (D)
Surface finish Satin nickel
Connector XLR-3-12C(M) equivalent
1: GND, 2: Hot, 3: Cold
