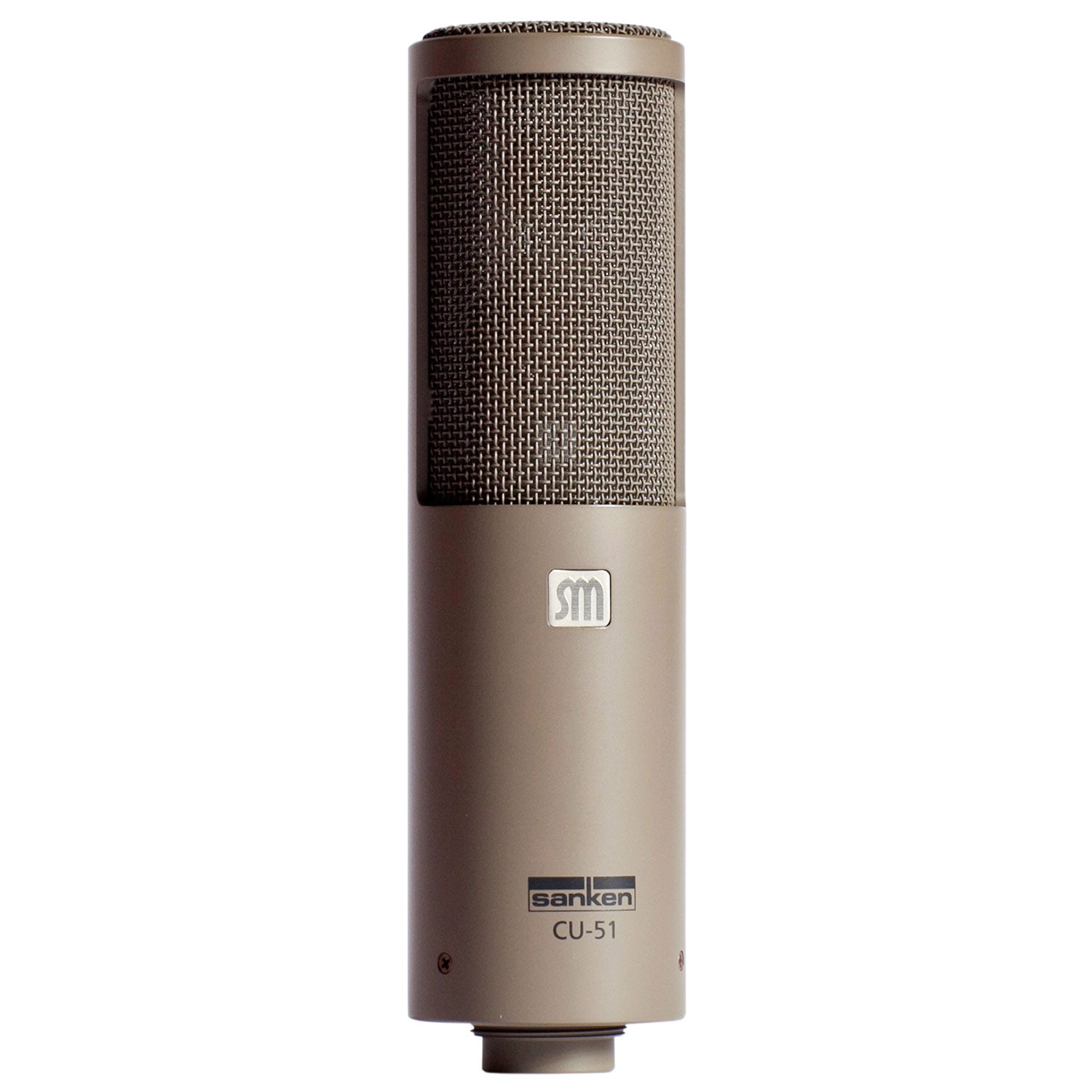

Sanken CU-51 Dual Diaphragm Cardioid Condenser Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Over 90 years of technological innovation and artist feedback have gone into the design of this unique microphone. No other manufacturer includes the features of the CU-51. What you hear in the studio is what you capture in the control room. The CU-51 offers a new dual-capsule design pioneered by Sanken, providing an exacting cardioid pattern ideal for vocals and a wide range of musical applications. The CU-51 also has a very low proximity effect making vocals and instruments seem bigger than life.
A very special characteristic of the CU-51 is its ability to maintain uniform response in both on-axis and off-axis positions. It is common knowledge that varying the direction of a microphone will change the frequency response and tone. The tone and response of the CU-51 remains consistent through changes in the axis angle while maintaining the benefits of a large capsule design. The CU-51's frequency response is truly flat at 90 degrees, essential in maintaining sonic transparency.
The CU-51's specially designed double capsule has one diaphragm that is optimized for low frequencies, while the other one captures the higher frequencies with guaranteed phase coherency between the two capsules in a meticulously engineered microphone that achieves totally transparent high-resolution results. The PPS (Polyphenylene) membranes are immune to the effects of humidity and temperature change, resulting in consistent response, regardless of the recording environment.
The CU-51 consistently delivers a high transient, natural and uncolored sound with vivid sonic imagery.
Features:
- Perfect for vocals and acoustic instruments
- Dual phase coherent capsules - low and high
- Uniform response in both on-axis and off-axis positions

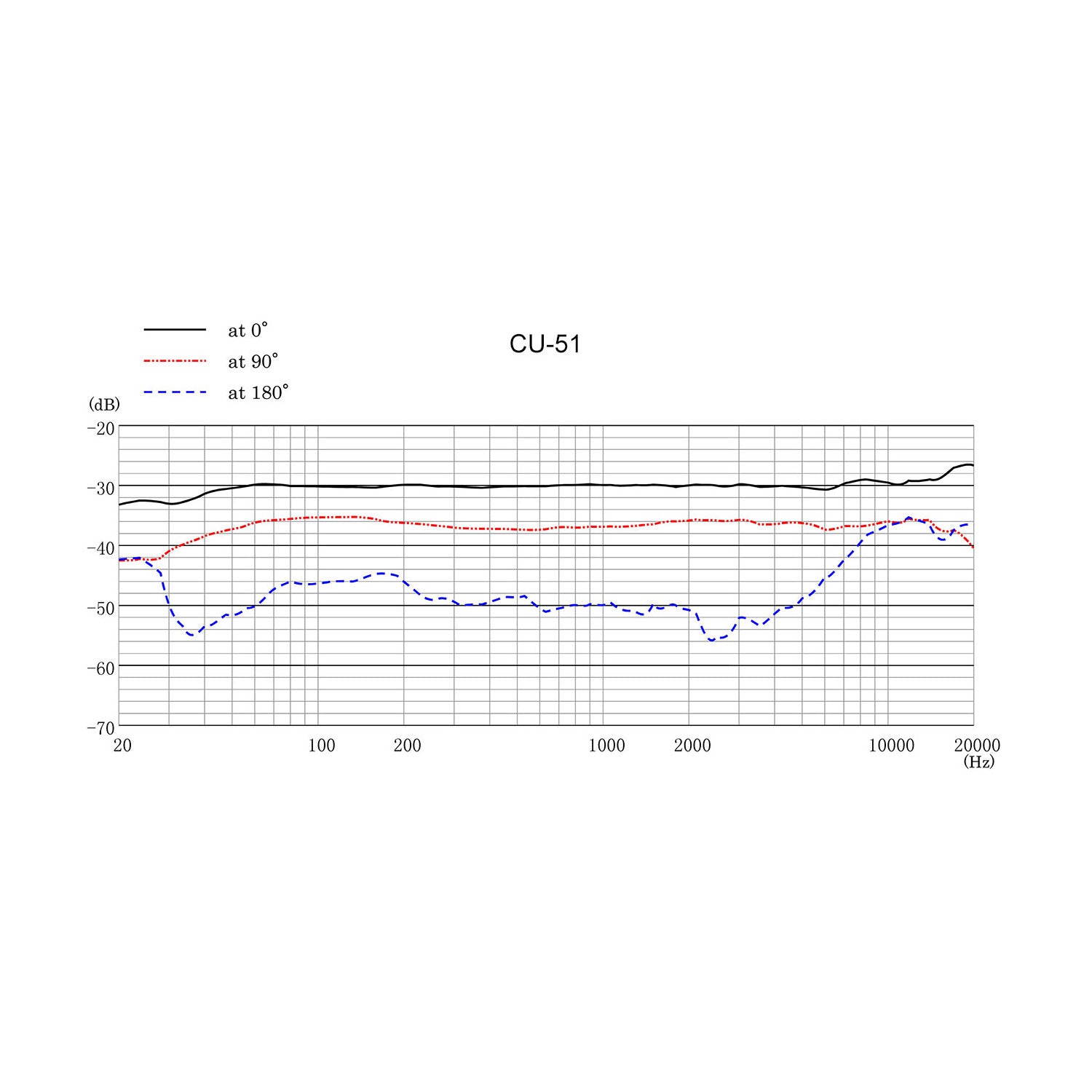

- Truly flat frequency response even at 90 degrees
- Low proximity effect
Recommended Applications:
- Acoustic Guitar
- Background or Chorus Vocals
- Brass and Woodwind
- Drums Close Mic
- Orchestra Solo
- Percussion
- Piano
- Strings
- Upright Bass
- Vocals
| Transducer | DC biased condenser |
| Directivity | Cardioid |
| Frequency response | 20Hz Ð 20kHzÊ |
| Sensitivity | -30dB (31.6mV , 0dB=1V/Pa) |
| Equivalent noise level (IEC) | 14dB-A |
| Max SPL(1% THD) | 138dB SPL |
| Output impedance( 1kHz ) | 150 ohms |
| Powering | +48V±4V phantom |
| Current consumption | 4mA |
| Weight | 430g/.95lbs |
| Dimensions | 157mm X 41.5mm (D) 6.2in x 1.6in (D) |
| Surface finish | Matte brown |
| Connector | XLR-3-12C(M) equivalent 1: GND, 2: Hot, 3: Cold |
