DALE SKU # SANK-CU55

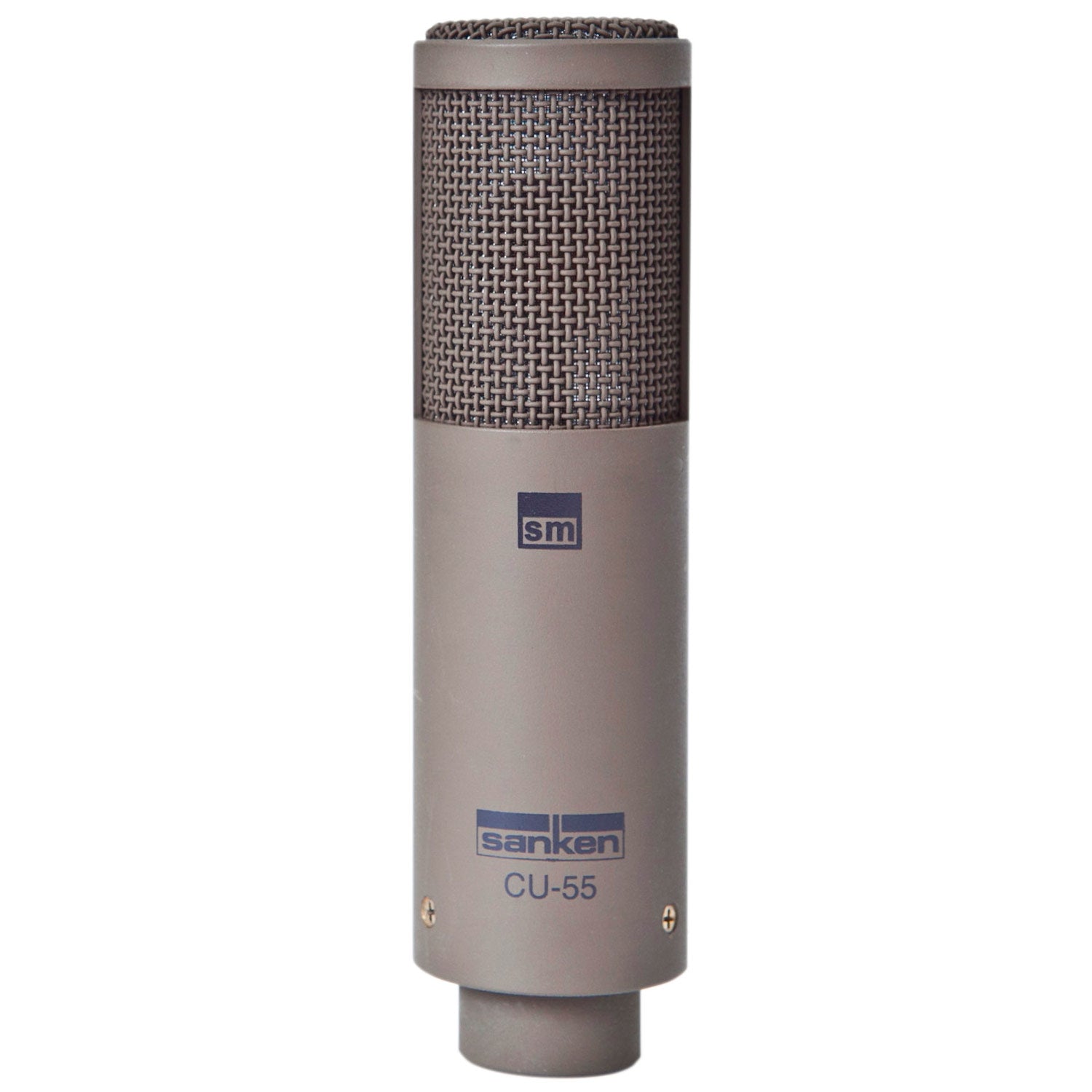

Sanken CU-55 Premium Cardioid Condenser Microphone

Sale price$1,195.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The affordably priced CU-55 is a fitting addition to the Sanken line of fine studio microphones. The response is very warm and natural sounding, very musical, without any coloration or artificial boost. If you are wrestling with some high SPLs, have no fears - the little CU-55 can handle whatever you throw at it. It can also bring out the best in softer, subtler sounds, and as a compact side-address microphone it is very easy to maneuver into tight spaces.

    This new generation microphone is flat even at 90 degrees, flat on axis, with very little proximity effect. The CU-55 uses the same diaphragm material as Sanken Chromatic's remarkable CU-100 and CUW-180 mics. Ideal for acoustic instruments like guitars, cello, harp and piano, the CU-55 can also handle the explosive levels of big brass and pounding tympanis. Try it on a snare drum, it fits nicely into tight spaces.

    It features a built in resonant chamber that mates with the capsule to optimize pattern and minimize proximity effects. Stereo pairs are truly matched. Like all Sanken microphones, the CU-55 provides optimum quality audio and reliability, and is a solid investment for the ambitious recording engineer/producer.

    Features:

    • Rich vintage sound from a modern mic
    • Perfect cardioid pattern
    • -10dB attenuation switch for two sensitivity settings
    • Flat frequency response (40Hz to 20kHz)
    • High maximum SPL of 137 dB at 1% THD and 15dB EN
    • Small form factor
    • Finely tuned resonant chamber that mates with the capsule
    • Very low proximity effect

    Recommended Applications:

    • Acoustic Guitar
    • Background or Chorus Vocals
    • Brass and Woodwind
    • Drums Close Mic
    • Electric/Bass Guitar Amps
    • Orchestra Solo
    • Overheads
    • Percussion
    • Piano
    • Upright Bass
    • Vocals
    Transducer DC biased condenser

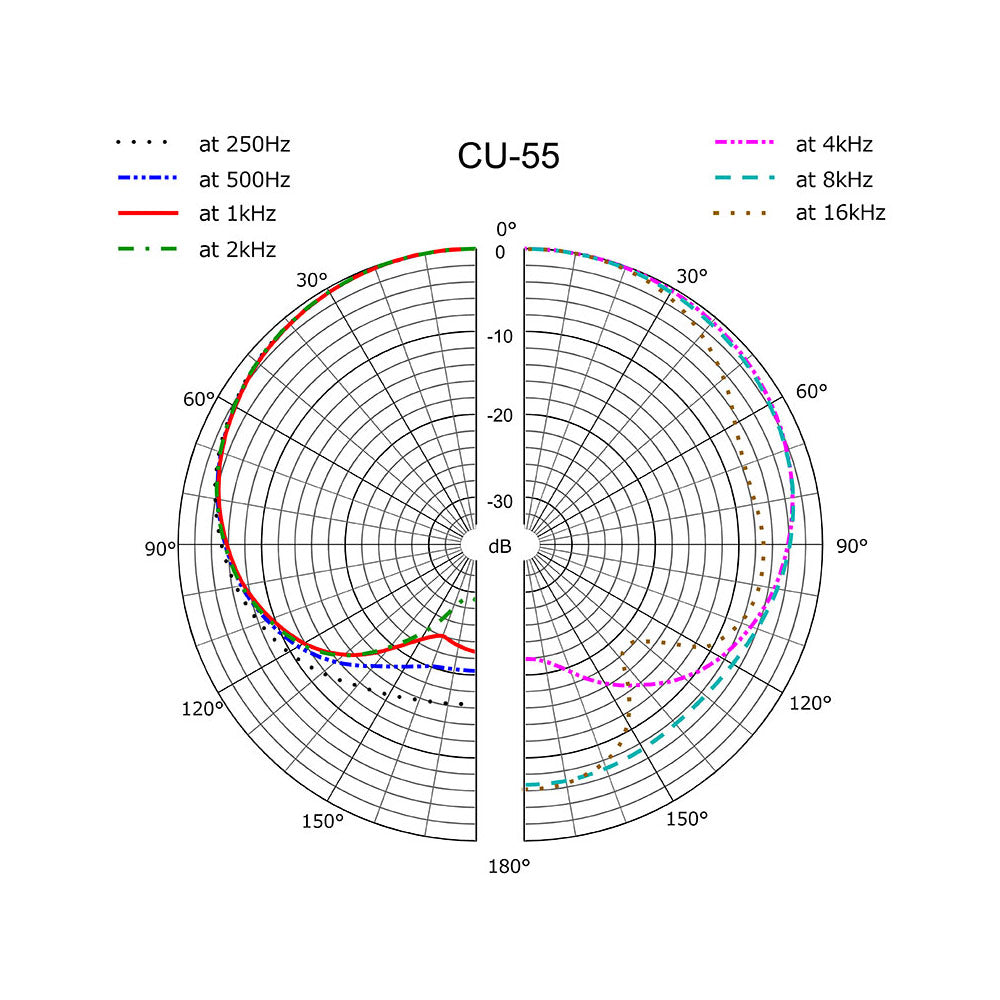

    Directivity Cardioid

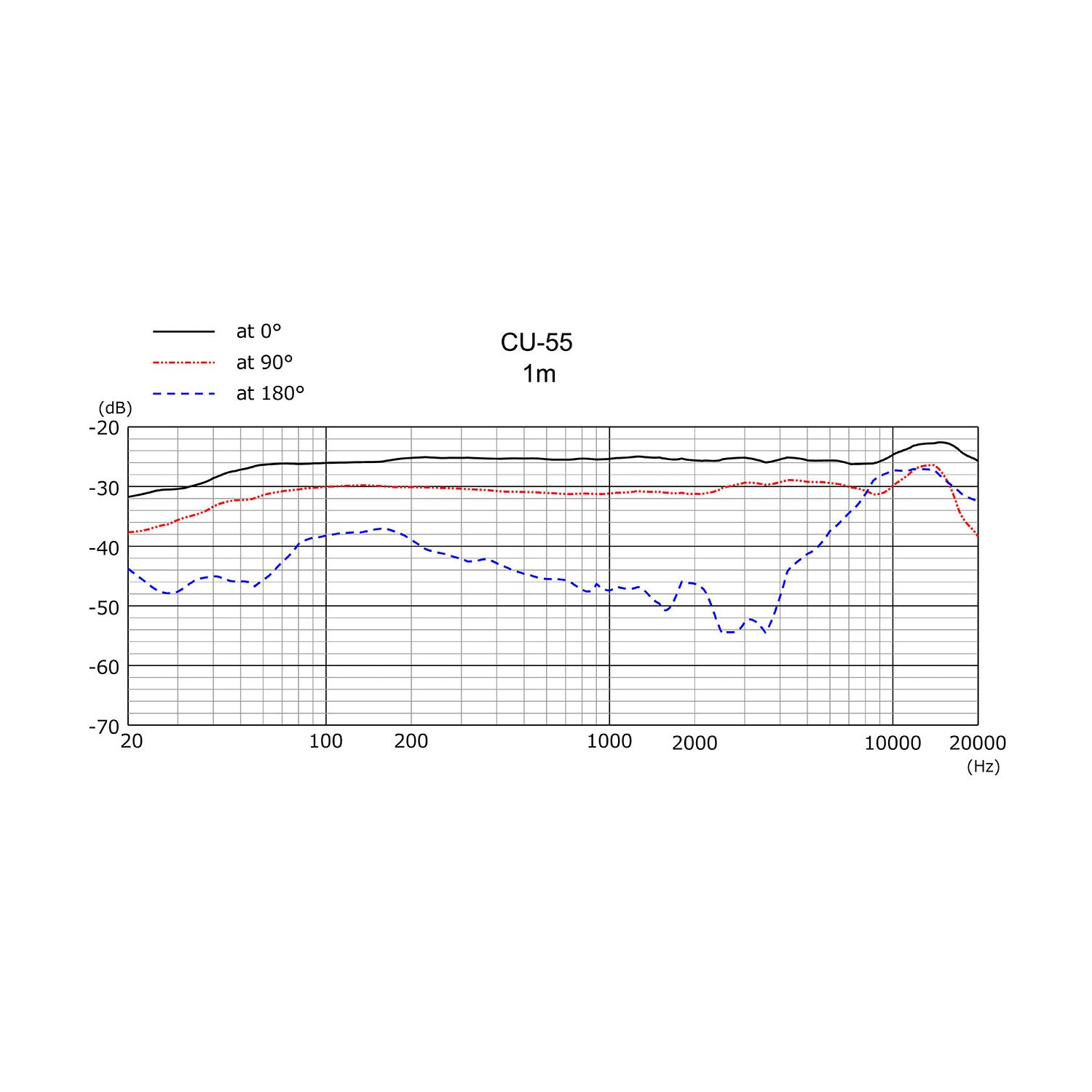

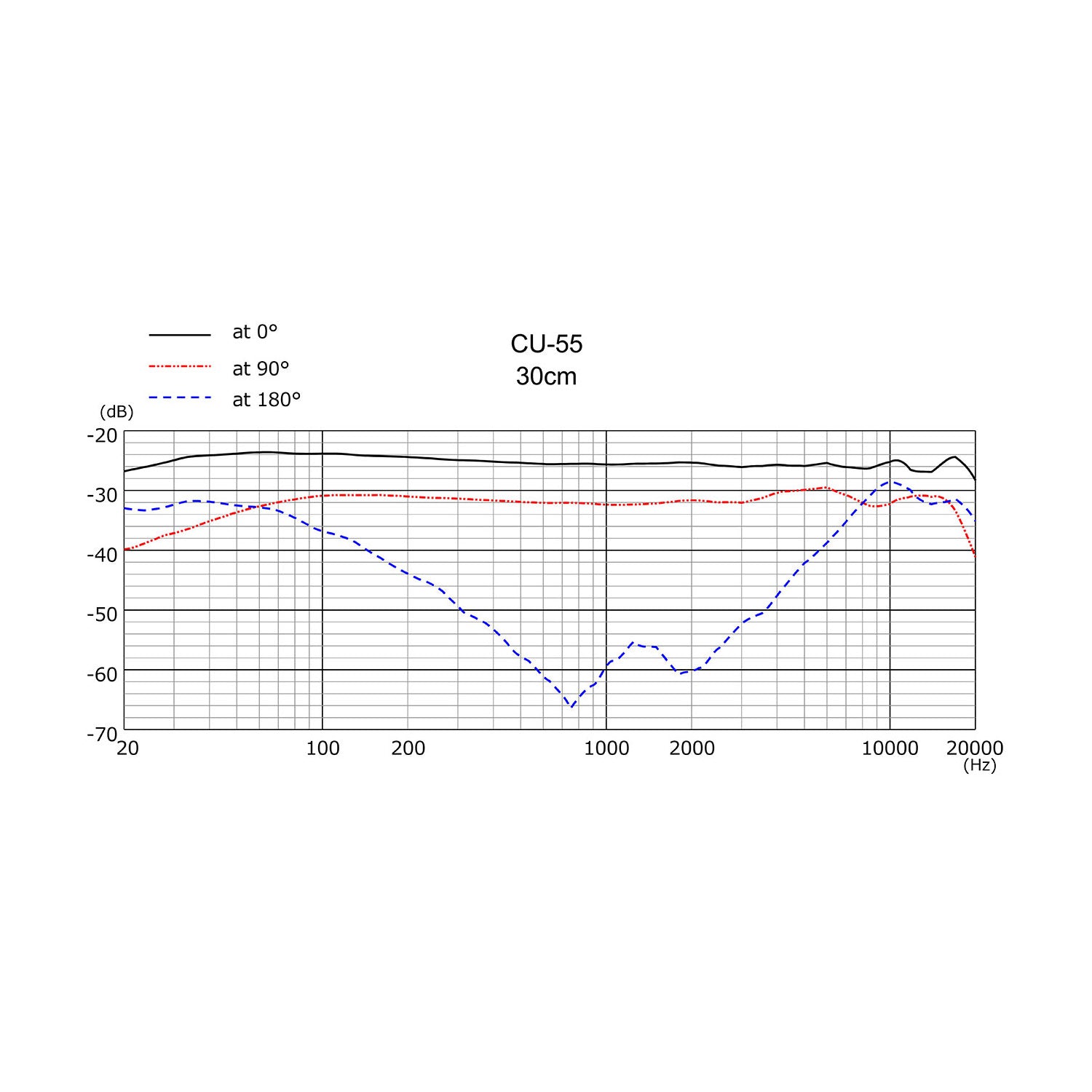

    Frequency response 40Hz Ð 20kHz
    Sensitivity PAD@:0dB -26dB
    (50.1mV, 0dB=1V/Pa)
    PAD@:-10dB -36dB
    (15.8mV, 0dB=1V/Pa)
    Equivalent noise level (IEC) 15dB-A
    Max SPL(1% THD) 137dB SPL(PAD@:0dB),
    147dB SPL(PAD@:-10dB)
    Output impedance( 1kHz ) 180 ohms
    Powering +48V±4V phantom
    Current consumption 3.5mA
    Weight 180g/ .4lbs
    Dimensions 113mm x 30mm (D)
    4.45in x 1.18in (D)
    Surface finish Matte brown
    Connector XLR-3-12C(M) equivalent
    1: GND, 2: Hot, 3: Cold

    The affordably priced CU-55 is a fitting addition to the Sanken line of fine studio microphones. The response is very warm and natural sounding, very musical, without any coloration or artificial boost. If you are wrestling with some high SPLs, have no fears - the little CU-55 can handle whatever you throw at it. It can also bring out the best in softer, subtler sounds, and as a compact side-address microphone it is very easy to maneuver into tight spaces.

    This new generation microphone is flat even at 90 degrees, flat on axis, with very little proximity effect. The CU-55 uses the same diaphragm material as Sanken Chromatic's remarkable CU-100 and CUW-180 mics. Ideal for acoustic instruments like guitars, cello, harp and piano, the CU-55 can also handle the explosive levels of big brass and pounding tympanis. Try it on a snare drum, it fits nicely into tight spaces.

    It features a built in resonant chamber that mates with the capsule to optimize pattern and minimize proximity effects. Stereo pairs are truly matched. Like all Sanken microphones, the CU-55 provides optimum quality audio and reliability, and is a solid investment for the ambitious recording engineer/producer.

    Features:

    • Rich vintage sound from a modern mic
    • Perfect cardioid pattern
    • -10dB attenuation switch for two sensitivity settings
    • Flat frequency response (40Hz to 20kHz)
    • High maximum SPL of 137 dB at 1% THD and 15dB EN
    • Small form factor
    • Finely tuned resonant chamber that mates with the capsule
    • Very low proximity effect

    Recommended Applications:

    • Acoustic Guitar
    • Background or Chorus Vocals
    • Brass and Woodwind
    • Drums Close Mic
    • Electric/Bass Guitar Amps
    • Orchestra Solo
    • Overheads
    • Percussion
    • Piano
    • Upright Bass
    • Vocals
    Transducer DC biased condenser
    Directivity Cardioid
    Frequency response 40Hz Ð 20kHz
    Sensitivity PAD@:0dB -26dB
    (50.1mV, 0dB=1V/Pa)
    PAD@:-10dB -36dB
    (15.8mV, 0dB=1V/Pa)
    Equivalent noise level (IEC) 15dB-A
    Max SPL(1% THD) 137dB SPL(PAD@:0dB),
    147dB SPL(PAD@:-10dB)
    Output impedance( 1kHz ) 180 ohms
    Powering +48V±4V phantom
    Current consumption 3.5mA
    Weight 180g/ .4lbs
    Dimensions 113mm x 30mm (D)
    4.45in x 1.18in (D)
    Surface finish Matte brown
    Connector XLR-3-12C(M) equivalent
    1: GND, 2: Hot, 3: Cold
