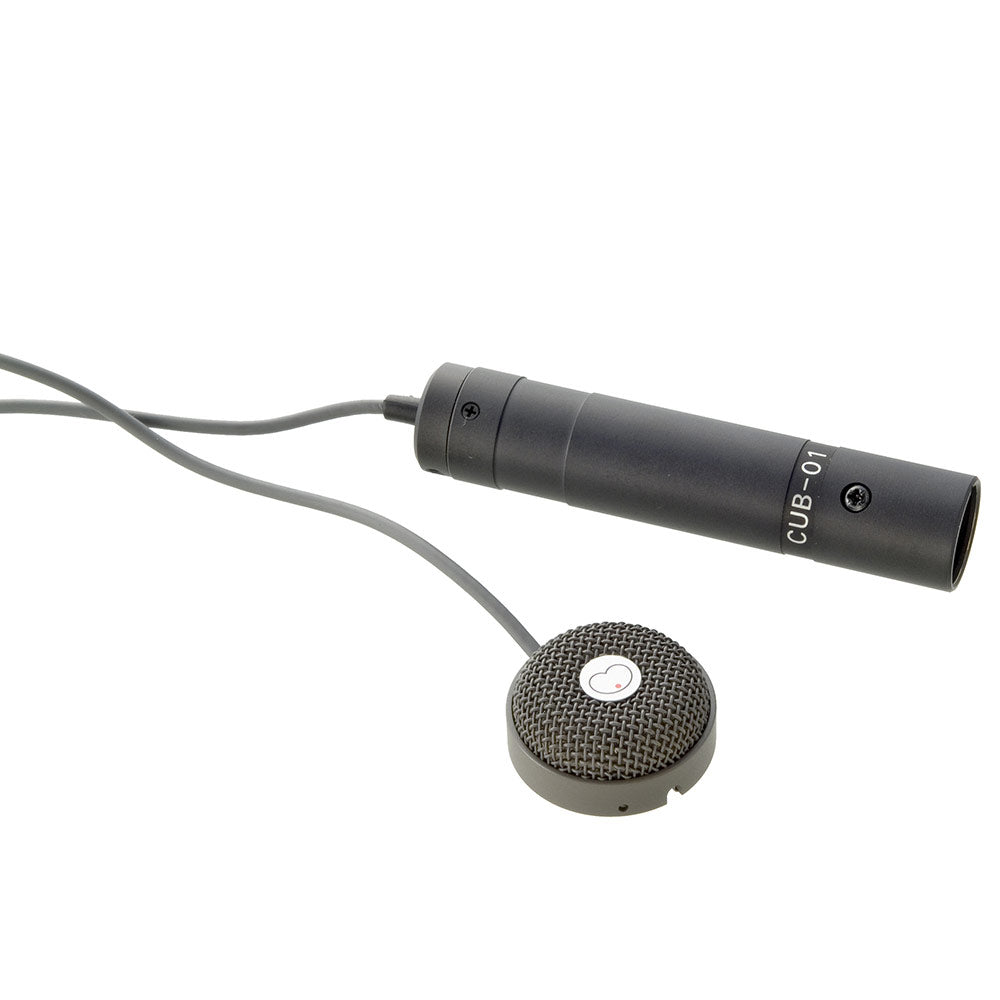

Sanken CUB-01 Cardioid Condenser Boundary Microphone (XLRM, Gray)


Have a Question? Call Toll Free: 888-462-7828

Live Chat Email Us

Availability: Usually ships in 5 - 10 Days

This item usually ships within 5-10 days after your order is placed. Your payment will be charged after completing checkout.
Free Shipping (Continental US)
  • The SANKEN CUB-01 offers an exclusive design which overcomes the limitations of previous boundary microphones, producing an extremely rich and full-bodied sound. Although small (32.5mm diameter, 14mm height, 45g weight) the sound is comparable with much larger microphones. The CUB-01 is designed for use in many situations, from TV and film field shooting to broadcast studio production and conference table recording. Because of its small size it is easy to conceal from the camera, and can be positioned in a variety of environments, for example, attached to the ceiling of a car with two-sided sticky tape.

    Using Sanken's advanced technology, the CUB-01 has a unique square-shaped capsule housing the diaphragm. With this proprietary design, the effective area of the diaphragm is significantly enlarged. Due to the CUB-01's cardioid directional characteristics, human narration and dialogue are clearly recorded while eliminating unnecessary background noise.


    •  Clear and rich sound
    • Small size, easy to set up
    • Front side of hemisphere cardioid directivity

    The Sanken CUB-01 offers a totally new design that overcomes the limitations of previous boundary microphones. Generally speaking, most boundary microphones have almost the same sound characteristics, heard as "thin," "solid," and "metallic." Using Sanken's advanced technology, the CUB-01 has resolved this problem with its unique square-shaped cardioid capsule. This proprietary design significantly enlarges the effective area of the diaphragm, resulting in a boundary microphone whose sound is rich and natural, with a flat response to 70Hz. Now it is possible to capture a "full bodied" and "clear" sound - human narration and dialogue are clearly caught while excluding unnecessary background noise.

  • Directivity Cardioid/front side of hemisphere
    Transducer Self-polarized condenser
    Frequency Range 60Hz - 15kHz
    Sensitivity (Nominal at 1kHz) 40mV/Pa (-28dB, 0dB=1V/Pa)
    Equivalent Noise Level (A-weighted) 16dB-A
    Max SPL (1% THD) 120dB SPL
    Output Impedance at 1kHz 180 ohms
    Powering +48±4V phantom
    Current Consumption Less than 1.8mA
    Weight 45g (including cable), 55g (48V I/F)
    Dimensions 32.5mm (diameter) x 14.0mm
    Connector XLR-3M
    Surface Finish Baked painting/grey
